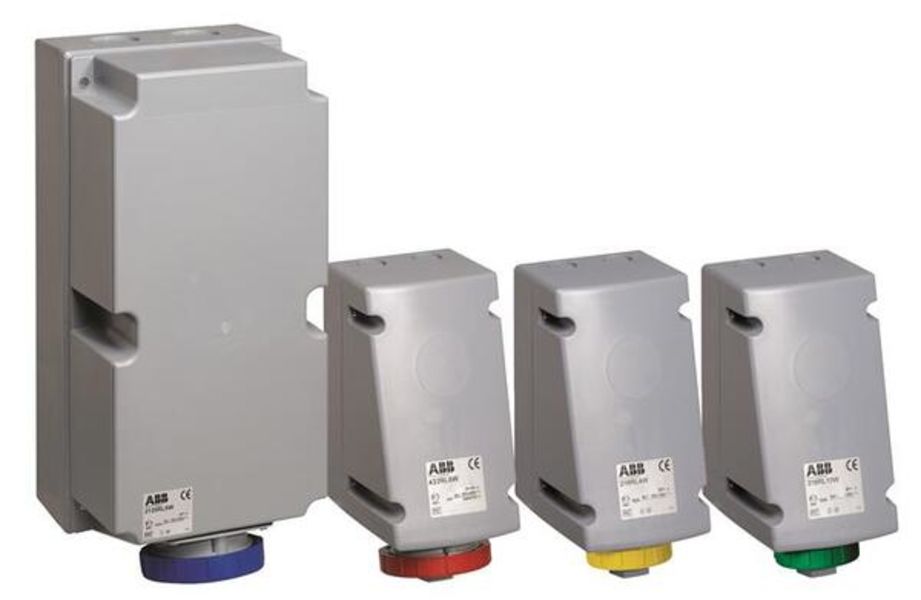

- Description: Surface socket-outlet for looping, 9h, 125A, IP67, 3P+E
- Product ID: 2CMA168532R1000
- Extended Product Type: 2CMA168532R1000
- Product Net Weight: 4.1 kg
- Product Net Width: 230 mm
- Product Net Height: 510 mm
- Product Net Depth: 510 mm
- Product Main Type: TRL
- Product Name: Industrial Socket Outlet for Looping
- Degree of Protection: IP67
- Standards: IEC 60309-1,-2
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): 125 A
- Function: Surface socket outlet for looping
- Color: Blue
- Suitable For: Socket Outlets for Looping
- Product Net Length: 210 mm
- Rated Voltage (U<sub>r</sub>): 200 250 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 50 Hz
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 16 70 mm
- EAN: 7392696685320
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 235 mm
- Package Level 1 Length: 515 mm
- Package Level 1 Height: 245 mm
- Package Level 1 Gross Weight: 4.1 kg
- Package Level 1 EAN: 7392696685320
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, knock-outs 2xØ50/25mm
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#3125RL9W
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2417536
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 3125RL9W . Santa Clara Systems carries 36,835 items from ABB.
- 3-Poles+earth
- Frequency 50-60 Hz
- Color Code Blue
- Surface Socket-Outlet For Looping
- Earthing Sleeve Position 9h
- Rated Current 125a
- Ip67 Watertight
