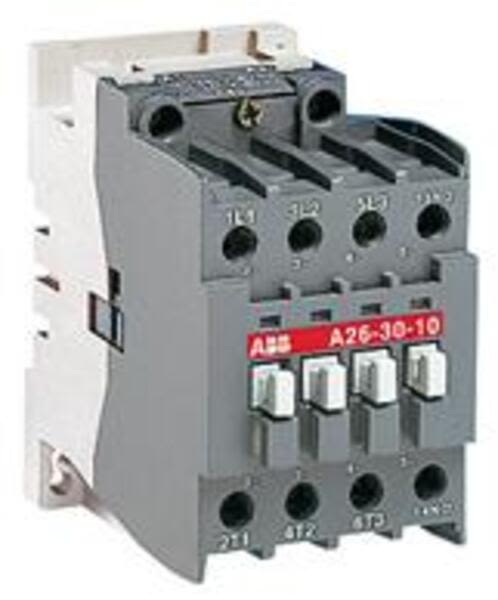

A26-30-10-80

Product Summary:

  • Product ID: 1SBL241001R8010
  • Extended Product Type: 1SBL241001R8010
  • Product Net Weight: 0.600 kg
  • Product Net Width: 54 mm
  • Product Net Height: 90 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Contactor | A26-30-10-80
  • Product ID: 1SBL241001R8010
  • Extended Product Type: 1SBL241001R8010
  • Product Net Weight: 0.600 kg
  • Product Net Width: 54 mm
  • Product Net Height: 90 mm
  • Product Net Depth: 93.6 mm
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
  • Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 C Close to Contactor for Storage -60 ... +80 C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +55 C Close to Contactor without Thermal O/L Relay (Uc) -40 ... +70 C
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V
  • Terminal Type: Screw Terminals
  • Rated Frequency (f): Supply Circuit 50 Hz Supply Circuit 60 Hz
  • Number of Auxiliary Contacts NO: 1
  • Number of Auxiliary Contacts NC: 0
  • Connecting Capacity Main Circuit: Flexible with Cable End 0.75 ... 4 mm Rigid Cable 1.5 ... 6 mm
  • GOST Certificate: GOST_POCCFRME77B07175
  • Maximum Operating Altitude Permissible: 3000 m
  • Rated Control Circuit Voltage (Uc): 50 Hz 220 230 V 60 Hz 230 240 V
  • Climatic Withstand: acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
  • Maximum Mechanical Switching Frequency: 3600 cycles per hour
  • Connecting Capacity Auxiliary Circuit: Flexible with Cable End 0.75 ... 2.5 mm Rigid Cable 1 ... 4 mm
  • Operate Time: Between Coil Energization and NO Contact Closing 8 ... 21 ms Between Coil De-energization and NO Contact Opening 4 ... 11 ms
  • Country of Origin: France (FR)
  • Number of Main Contacts NO: 3
  • GL Certificate: DNV-GL_TAE00000TX
  • Number of Main Contacts NC: 0
  • Short-Circuit Protective Devices: Auxiliary Circuit - gG Type Fuses 10 A gG Type Fuses 50 A
  • Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 420 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 170 A
  • Coil Consumption: Average Holding Value 50 / 60 Hz 12 V·A Average Holding Value 50 / 60 Hz 3 W Average Pull-in Value 50 Hz 125 V·A Average Pull-in Value 60 Hz 120 V·A
  • Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at 55 C) C
  • Connecting terminals (delivered in open position) Main poles: M 4 (+,-) pozidriv 2 screws with cable clamp
  • Lead Time: 120 day(s)
  • EAN: 3471522062802
  • Made To Order: No
  • Product Sales Status: Inactive
  • Quote Only: No
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85369085
  • Package Level 1 Width: 101 mm
  • Package Level 1 Length: 115 mm
  • Package Level 1 Height: 61 mm
  • Package Level 1 Gross Weight: 0.6 kg
  • Package Level 1 EAN: 3471522062802
  • Package Level 2 Units: 24 piece
  • Package Level 3 Units: 576 piece
  • Package Level 1 Units: 1 piece
  • Rated Operational Voltage: Main Circuit 690 V
  • Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 C 45 A acc. to IEC 60947-5-1, q = 40 C 16 A
  • Rated Operational Current AC-1 (Ie): (690 V) 40 C 45 A (690 V) 55 C 40 A (690 V) 70 C 32 A
  • Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 55 C 26 A (380 / 400 V) 55 C 26 A (415 V) 55 C 26 A (440 V) 55 C 26 A (500 V) 55 C 22 A (690 V) 55 C 17 A
  • Rated Operational Power AC-3 (Pe): (220 / 230 / 240 V) 6.5 kW (380 / 400 V) 11 kW (415 V) 11 kW (440 V) 15 kW (500 V) 15 kW (690 V) 15 kW
  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
  • Rated Operational Current AC-15 (Ie): (220 / 240 V) 4 A (24 / 127 V) 6 A (380 / 440 V) 3 A (500 V) 2 A (690 V) 2 A
  • Rated Short-time Withstand Current (Icw): at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 210 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 45 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 90 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 400 A at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 110 A for 0.1 s 140 A for 1 s 100 A
  • Maximum Electrical Switching Frequency: AC-1 600 cycles per hour AC-2 / AC-4 300 cycles per hour AC-3 1200 cycles per hour
  • Rated Operational Current DC-13 (Ie): (125 V) 1.1 / 138 A (24 V) 6 / 144 A (250 V) 0.55 / 138 A (48 V) 2.8 / 134 A (72 V) 2 / 144 A
  • Resistance to Shock acc. to IEC 60068-2-27: Shock Direction: A 20 g Closed, Shock Direction: B1 10 g Open, Shock Direction: B1 5 g Shock Direction: B2 15 g Shock Direction: C1 20 g Shock Direction: C2 20 g
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Instructions and Manuals: FPTC407722P0001
  • BV Certificate: BV_2634H07559D0
  • CB Certificate: CB_FR_602227A
  • CCC Certificate: CCC_2013010304615752 CCC_2004010309133982
  • CSA Certificate: CSA_1033838_LR056745
  • cUL Certificate: UL_071301E39231
  • Data Sheet, Technical Information: 1SBC100122C0202_Ch02
  • Declaration of Conformity - CE: 1SBD250801U1000
  • DNV Certificate: DNV-GL_TAE00000TX
  • EAC Certificate: EAC_RU C-FR ME77 B01010
  • LOVAG Certificate: LOVAG_FR97043
  • LR Certificate: LRS_9830011E4
  • RINA Certificate: RINA_ELE128713XG001
  • RMRS Certificate: RMRS_0507015250
  • RoHS Information: 1SBD350054R1000
  • UL Certificate: UL_071301E39231
  • E-nummer: 3227744
  • ETIM 4: EC000066 - Magnet contactor, AC-switching
  • ETIM 5: EC000066 - Magnet contactor, AC-switching
  • ETIM 6: EC000066 - Power contactor, AC switching
  • UNSPSC: 39121529
  • Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on A26-30-10-80 . Santa Clara Systems carries 36,271 items from ABB.
  • 1 Built-In Auxiliary Contact
  • Front And Side-Mounted Add-On Auxiliary Contact Blocks - Control Circuit: Ac Operated With Laminated Magnet Circuit - Accessories: A Wide Range Of Accessories Is Available.
  • A26 Contactors Are Mainly Used For Controlling 3-Phase Motors And Generally For Controlling Power Circuits Up To 690 V Ac Or 220 V Dc. The Contactors Can Also Be Used For Many Other Applications Such As Isolation
  • Capacitor Switching
  • Lighting. The A... Series 1-Stack 3-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 3 Main Poles
