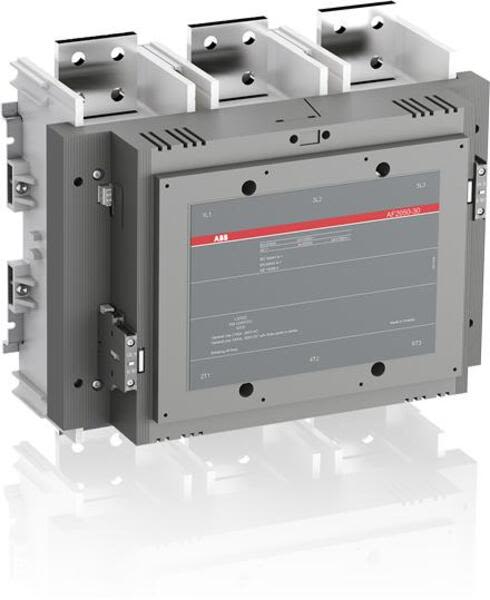

- Description: AF2050-30-22 100-250V 50/60Hz / 100-250 DC Contactor
- Product ID: 1SFL707001R7022
- Extended Product Type: 1SFL707001R7022
- Product Net Weight: 33.000 kg
- Product Net Width: 438.0 mm
- Product Net Height: 392.0 mm
- Product Net Depth: 244.0 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
- Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25+50 C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40+70 C Close to Contactor for Storage -40+70 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): Main Circuit 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
- Terminal Type: Main Circuit: Bars
- Rated Frequency (f): Main Circuit 50/60 Hz
- Number of Auxiliary Contacts NO: 2
- Number of Auxiliary Contacts NC: 2
- Mechanical Durability: 0.5 million
- Connecting Capacity Main Circuit: Bar 100 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V
- Maximum Operating Altitude Permissible: 3000 m
- Rated Control Circuit Voltage (U<sub>c</sub>): 60 Hz 100 250 V 50 Hz 100 250 V DC Operation 100 250 V
- Maximum Mechanical Switching Frequency: 300 cycles per hour
- Connecting Capacity Auxiliary Circuit: Solid 2x14 mm Flexible with Insulated Ferrule 1x0.752.5 mm Stranded 2x14 mm Flexible 1x0.752.5 mm Flexible with Ferrule 2x0.752.5 mm
- Operate Time: Between Coil Energization and NO Contact Closing 50 ... 80 ms Between Coil De-energization and NO Contact Opening 35 ... 55 ms Between Coil De-energization and NC Contact Closing 35 ... 55 ms Between Coil Energization and NC Contact Opening 50 ... 80 ms
- Number of Main Contacts NO: 3
- Number of Main Contacts NC: 0
- Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A
- Coil Consumption: Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A
- Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at 70 C) C
- General Use Rating UL/CSA: (600 V AC) 2100 A
- EAN: 7320500359105
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 250 mm
- Package Level 1 Length: 440 mm
- Package Level 1 Height: 430 mm
- Package Level 1 Gross Weight: 38 kg
- Package Level 1 EAN: 7320500359105
- Package Level 1 Units: 1 piece
- Rated Operational Voltage: Main Circuit 1000 V
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-4-1, Open Contactors q = 40 C 2050 A
- Rated Operational Current AC-1 (I<sub>e</sub>): (690 V) 55 C 1750 A (690 V) 40 C 2050 A (1000 V) 40 C 2050 A (1000 V) 55 C 1750 A (690 V) 70 C 1500 A (1000 V) 70 C 1500 A
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
- Rated Short-time Withstand Current (I<sub>cw</sub>): at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 2200 A at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A
- Maximum Electrical Switching Frequency: AC-1 60 cycles per hour
- Rated Operational Current DC-1 (I<sub>e</sub>): (850 V) 3 Poles in Series, 40 C 2050 A (600 V) 3 Poles in Series, 40 C 2050 A (220 V) 3 Poles in Series, 40 C 2050 A
- Rated Operational Current DC-3 (I<sub>e</sub>): (850 V) 3 Poles in Series, 40 C 2050 A (600 V) 3 Poles in Series, 40 C 2050 A (220 V) 3 Poles in Series, 40 C 2050 A
- Rated Operational Current DC-5 (I<sub>e</sub>): (850 V) 3 Poles in Series, 40 C 2050 A (600 V) 3 Poles in Series, 40 C 2050 A (220 V) 3 Poles in Series, 40 C 2050 A
- RoHS Status: No declaration needed
- Instructions and Manuals: 1SFC101002M5501
- CB Certificate: SE-69484
- CCC Certificate: CQC_2003010304101933
- Data Sheet, Technical Information: 1SBC100122C0202
- Declaration of Conformity - CE: 1SFA1-92
- RINA Certificate: ELE060313XG/002
- RoHS Information: 1SFC101061D0211
- ETIM 4: EC000066 - Magnet contactor, AC-switching
- ETIM 5: EC000066 - Magnet contactor, AC-switching
- UNSPSC: 39121529
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AF2050-30-22-70 . Santa Clara Systems carries 36,687 items from ABB.
- Ac/dc
- A 3-Phase Contactor Suitable For Various Applications Such As Isolation
- By-Pass And Distribution Application Up To Max 1000 V. Operated With Wide Control Voltage Range 100-250 V
