AL9-22-00-81

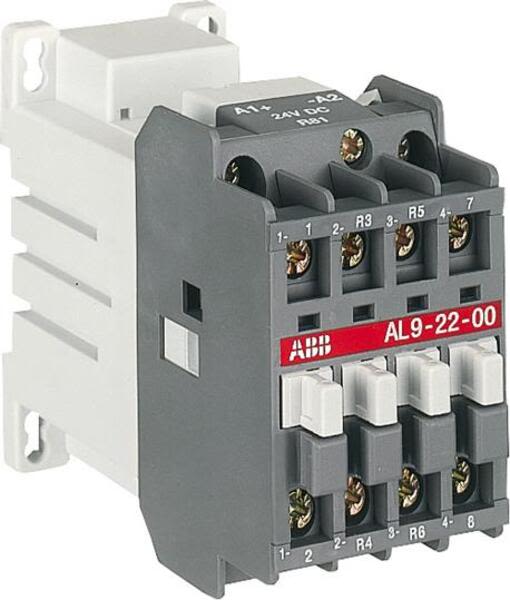

ABB - Contactor | AL9-22-00-81

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Contactor | AL9-22-00-81
Product ID: 1SBL143501R8100
Extended Product Type: 1SBL143501R8100
Product Net Weight: 0.520 kg
Product Net Width: 44 mm
Product Net Height: 78 mm
Product Net Depth: 97 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Ambient Air Temperature: Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °C Near Contactor for Operation in Free Air (Uc) -40 ... +70 °C Close to Contactor for Storage -60 ... +80 °C
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V
Terminal Type: Screw Terminals
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 0
Mechanical Durability: 10 million
Connecting Capacity Main Circuit: Flexible with Cable End 0.75 ... 2.5 mm² Rigid Cable 1 ... 4 mm²
GOST Certificate: GOST_POCCFRME77B07175
Maximum Operating Altitude Permissible: 3000 m
Rated Control Circuit Voltage (Uc): DC Operation 24 V
Climatic Withstand: acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Mechanical Switching Frequency: 3600 cycles per hour
Connecting Capacity Auxiliary Circuit: Flexible with Cable End 0.75 ... 2.5 mm² Rigid Cable 1 ... 4 mm²
Operate Time: Between Coil Energization and NO Contact Closing 50 ... 100 ms Between Coil De-energization and NO Contact Opening 10 ... 17 ms Between Coil De-energization and NC Contact Closing 16 ... 27 ms Between Coil Energization and NC Contact Opening 20 ... 70 ms
Country of Origin: France (FR)
Number of Main Contacts NO: 2
Number of Main Contacts NC: 2
Short-Circuit Protective Devices: gG Type Fuses 25 A
Coil Consumption: Average Holding Value, from Warm State 3 W Average Pull-in Value, from Cold State 3 W
Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) °C
Connecting terminals (delivered in open position) Main poles: M 3.5 (+,-) pozidriv 2 screw with cable clamp
Lead Time: 33 day(s)
EAN: 3471522271815
Criticality: No

Made To Order: No
Product Sales Status: Active
Quote Only: No
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85369085
Package Level 1 Width: 86 mm
Package Level 1 Length: 141 mm
Package Level 1 Height: 51 mm
Package Level 1 Gross Weight: 0.52 kg
Package Level 1 EAN: 3471522271815
Package Level 2 Units: 28 piece
Package Level 3 Units: 336 piece
Package Level 1 Units: 1 piece
Rated Operational Voltage: Main Circuit 690 V
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 26 A
Rated Operational Current AC-1 (Ie): (690 V) 40 °C 25 A (690 V) 55 °C 22 A (690 V) 70 °C 18 A
Rated Short-time Withstand Current (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 100 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 26 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 50 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 60 A
Maximum Electrical Switching Frequency: AC-1 600 cycles per hour
Resistance to Shock acc. to IEC 60068-2-27: Closed, Shock Direction: A 20 g Open, Shock Direction: A 10 g Closed, Shock Direction: B1 15 g Open, Shock Direction: B1 5 g Shock Direction: B2 10 g Closed, Shock Direction: C1 20 g Open, Shock Direction: C1 8 g Closed, Shock Direction: C2 14 g Open, Shock Direction: C2 8 g
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Instructions and Manuals: 1SBC101003M5501
CCC Certificate: CCC_2004010304112227
CSA Certificate: CSA_1041746
cUL Certificate: UL_20160205-E312527-10-2
Data Sheet, Technical Information: 1SBC100122C0202_Ch02
Declaration of Conformity - CE: 1SBD250804U1000
RoHS Information: 1SBD350051R1000
UL Listing Card: UL_E312527
ETIM 4: EC000066 - Magnet contactor, AC-switching
ETIM 5: EC000066 - Magnet contactor, AC-switching
ETIM 6: EC000066 - Power contactor, AC switching
UNSPSC: 39121529
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AL9-22-00-81 . Santa Clara Systems carries 36,972 items from ABB.

Al9 4-Pole Contactors Are Mainly Used For Controlling Non-Inductive Or Slightly Inductive Loads (I.e. Resistance Furnaces...) And Generally For Controlling Power Circuits Up To 690 V Ac And 440 V Dc. The Contactors Can Also Be Used For Many Other Applications Such Lighting... The Al... Series 4-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 2 N.o. + 2 N.c. Main Poles

Al9 4-Pole Contactors Are Mainly Used For Controlling Non-Inductive Or Slightly Inductive Loads (I.e. Resistance Furnaces...) And Generally For Controlling Power Circuits Up To 690 V Ac And 440 V Dc. The Contactors Can Also Be Used For Many Other Applications Such Lighting... The Al... Series 4-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 2 N.o. + 2 N.c. Main Poles
Front And Side-Mounted Add-On Auxiliary Contact Blocks - Control Circuit: Dc Operated With Solid Core Magnet Circuit. The Polarity On The Coil Terminals (A1+ And A2-) Must Be Respected - Accessories: A Wide Range Of Accessories Is Available. Al... Contactors Are Fitted With Low Consumption Dc Coils And Are Suitable For A Direct Control By Plc Outputs.
