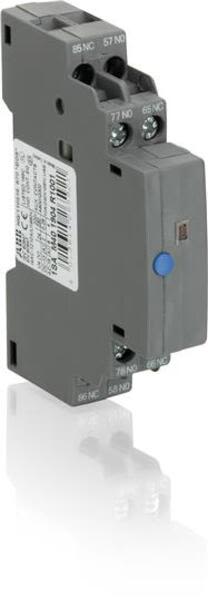

- Description: Short Circuit Signaling Contact | CK-11
- Product ID: 1SAM101943R0001
- Extended Product Type: 1SAM101943R0001
- Product Net Weight: 0.035 kg
- Product Net Width: 9 mm
- Product Net Height: 92 mm
- Product Net Depth: 73.5 mm
- Product Name: Short Circuit Signaling Contact
- Degree of Protection: IP20
- Ambient Air Temperature: Operation -25 . +50 C Storage -50 +80 C
- Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 508 CSA 22.2 No. 14
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): Auxiliary Circuit 6 kV
- Rated Insulation Voltage (U<sub>i</sub>): 690 V
- Rated Frequency (f): Auxiliary Circuit DC Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz
- Suitable For: MS325 MO325
- eClass: 7.0 27379201
- Tightening Torque: Auxiliary Circuit 0.8 1.0 N·m
- GOST Certificate: 1SAA918000-2703
- Connecting Capacity Auxiliary Circuit: Rigid 1/2x 1.0 2.5 mm Flexible with Ferrule 1/2x 0.75 ... 1.5 mm Flexible 1/2x 0.75 2.5 mm Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm Flexible with Insulated Ferrule 2x 0.75 mm
- Wire Stripping Length: Auxiliary Circuit 8 mm
- EAN: 4013614371073
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369085
- Package Level 1 Length: 79 mm
- Package Level 1 Height: 105 mm
- Package Level 1 Gross Weight: 0.43 kg
- Package Level 1 EAN: 4013614442384
- Package Level 1 Units: 10 piece
- Package Level 1 Width: 210 mm
- Rated Operational Current AC-15 (I<sub>e</sub>): (24 V) 6 A (120 V) 6 A (240 V) 4 A (380 / 400 V) 3 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (24 V) 2 A (125 V) 0.55 A (250 V) 0,27 A (400 V) 0.15 A
- Recommended Screw Driver: Pozidriv 2
- Suitable for Product Class: Manual Motor Starter
- Rated Operational Voltage: 400 V AC 400 V DC
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Contact Rating UL/CSA: B300 Q300 B600
- Instructions and Manuals: 2CDC131016M5501
- CCC Certificate: 1SAA918002-3801
- cUL Certificate: 1SAA918002-1701
- Data Sheet, Technical Information: 1SBC100173C0201
- Declaration of Conformity - CE: 1SAD938512-0003
- RoHS Information: 1SAA918001-4402
- UL Certificate: 1SAA918002-1601
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- UNSPSC: 39121500
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CK-11 . Santa Clara Systems carries 36,682 items from ABB.
- Ck-11 Short-Circuit Signal Contact
