Out of Stock

CK1-11

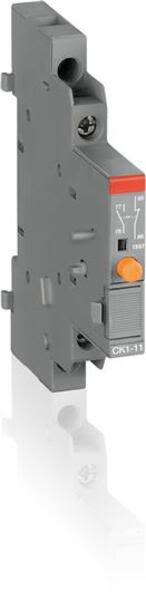

ABB - CK1-11 Short Circuit Signaling Contact

Current response time:

By 5AM PT on Monday

Emergency?

Description: CK1-11 Short Circuit Signaling Contact
Product ID: 1SAM301901R1001
Extended Product Type: 1SAM301901R1001
Product Net Weight: 0.035 kg
Product Net Width: 9 mm
Product Net Height: 90 mm
Product Net Depth: 78 mm
Product Name: Short Circuit Signaling Contact
Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 508 CSA 22.2 No. 14
Rated Impulse Withstand Voltage (Uimp): Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
Suitable For: MS132
eClass: 7.0 27379201
Tightening Torque: Auxiliary Circuit 0.8 … 1.2 N·m
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
Maximum Operating Voltage UL/CSA: Main Circuit 600 V
Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb
Connecting Capacity Auxiliary Circuit: Rigid 1/2x 1 ... 1.5 mm² Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² Flexible 1/2x 0.75 ... 1.5 mm²
Wire Stripping Length: Auxiliary Circuit 8 mm
GL Certificate: 1SAA963001-0401
EAN: 4013614403927
Minimum Order Quantity: 2 piece
Customs Tariff Number: 85365080
Package Level 1 Length: 80 mm
Package Level 1 Height: 93 mm
Package Level 1 Gross Weight: 0.08 kg

Package Level 1 EAN: 4013614481529
Package Level 1 Units: 2 piece
Package Level 1 Width: 25 mm
Rated Operational Current AC-15 (Ie): (24 V) 6 A (240 V) 4 A (380 / 400 V) 3 A (690 V) 1 A
Rated Operational Current DC-13 (Ie): (24 V) 2 A (125 V) 0.55 A (250 V) 0,27 A (440 V) 0.15 A (600 V) 0.15 A
Recommended Screw Driver: Pozidriv 2 M3
Suitable for Product Class: Manual Motor Starter
Rated Operational Voltage: 690 V AC 600 V DC
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Connecting Capacity Auxiliary Circuit UL/CSA: Stranded 1/2x 16 ... 14 AWG Flexible 1/2x 16 ... 14 AWG
Contact Rating UL/CSA: B600 Q600
Instructions and Manuals: 2CDC131027M6802
ABS Certificate: 1SAA963001-0101
CB Certificate: 1SAA963001-2002
CCC Certificate: 1SAA963003-3802
cUL Certificate: cUL_E137861
Data Sheet, Technical Information: 1SBC100192C02--
Declaration of Conformity - CE: 1SAD938509-0125 1SAD938501-0190
DNV Certificate: 1SAA963001-0303
LR Certificate: 1SAA963001-0502 1SAA918001-0501
RINA Certificate: 1SAA963000-0802
RoHS Information: 1SAA963002-4405
UL Certificate: UL_E137861
ETIM 4: EC002498 - Accessories for low-voltage switch technology
ETIM 5: EC002498 - Accessories for low-voltage switch technology
ETIM 6: EC002498 - Accessories for low-voltage switch technology
