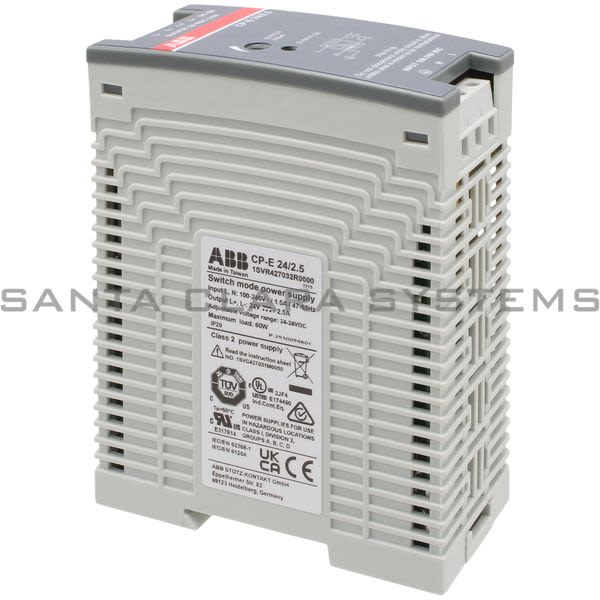

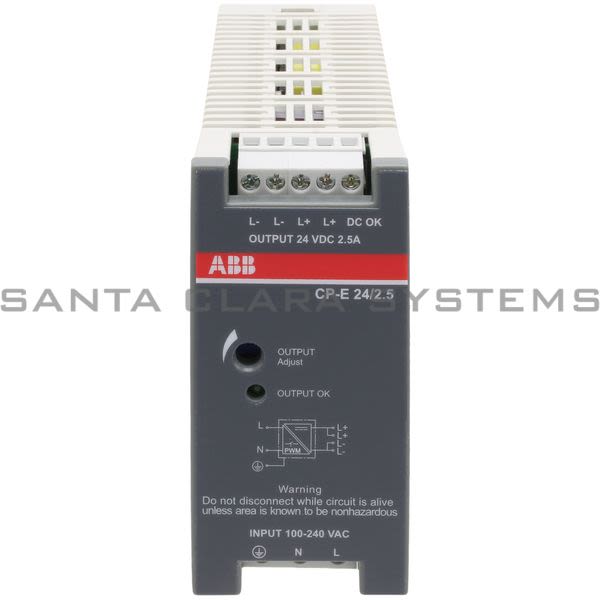

CP-E-24-2.5

ABB - Power Supply | 1SVR427032R0000

Current response time:

By 5AM PT on Monday

Emergency?

Description: Power Supply | 1SVR427032R0000
Product ID: 1SVR427032R0000
Extended Product Type: 1SVR427032R0000
Product Net Weight: 0.331 kg
Product Net Width: 40.5 mm
Product Net Height: 90 mm
Product Net Depth: 114 mm
Degree of Protection: Housing IP20 Terminals IP20
Ambient Air Temperature: Operation -40 … +70 °C Storage -40 ... +85 °C
Standards: IEC/EN 60950-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 UL 60950 UL 1310 ANSI/ISA-12.12 CAN/CSA C22.2 No.107.1 CAN/CSA C22.2 No.213 CAN/CSA C22.2 No.60950 CAN/CSA C22.2 No.223
Rated Insulation Voltage (Ui): Input Circuit / Output Circuit 3 V Input Circuit / PE 2 V
Function: Switch mode power supply
Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
eClass: 7.0 27049002
Tightening Torque: Input Circuit 0.6 N·m Output Circuit 0.6 N·m
Mounting Position: Position 1
GOST Certificate: GOST_POCC_CN.AB76.B00924
Tightening Torque UL/CSA: Input Circuit 5 in·lb Output Circuit 5 in·lb
Wire Stripping Length: Input Circuit 6 mm Output Circuit 6 mm
Output Current: 2.5 A
EAN: 4016779656887
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85044090
Package Level 1 Length: 154 mm
Package Level 1 Height: 58 mm
Package Level 1 Gross Weight: 0.4 kg
Package Level 1 Units: 1 piece
Package Level 1 Width: 132 mm
Number of Phases: 1
Rated Input Voltage (UIN): 100 ... 240 V AC
Input Voltage (Uin): 85 ... 264 V AC 90 ... 375 V DC
Rated Frequency Limits: 47 ... 63 Hz
Rated Output Power: 60 W

Output Power: 60 W
Rated Output Voltage: 24 V DC
Output Voltage (Uout): 24 V DC
Rated Output Current: 2.5 A
Pollution Degree: 2
Connecting Capacity Input Circuit: Flexible with Ferrule 0.2 ... 2.5 mm² Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit: Flexible with Ferrule 0.2 ... 2.5 mm² Rigid 0.2 ... 2.5 mm²
Minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Connecting Capacity Input Circuit UL/CSA: Rigid 24-14 AWG
Connecting Capacity Output Circuit UL/CSA: Rigid 24-14 AWG
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5: Level 3 Line-to-Line 2 kV Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6: Level 3 10 V
Electromagnetic Compatibility (EMC): Immunity - Class B Emission - Class B
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: Level 4 Air Discharge 15 kV Level 4 Contact Discharge 8 kV
Instructions and Manuals: 1SVC427031M0000
CCC Certificate: CCC_2008010907282731
cUL Certificate: cUL508_E174460
cUR Certificate: cUR60950_E196145 cUR1310_E313203 cUR_ANSI_E317914
Data Sheet, Technical Information: 2CDC114045D0201
Declaration of Conformity - CE: 1SVD982008-0000
EAC Certificate: EAC_RU_C-DE.ME77.B.01651
RoHS Information: 1SAA981023-4402
UL Certificate: UL508_E174460
UR Certificate: UR60950_E196145 UR1310_E313203 UR_ANSI_E317914
E-nummer: 5218703
ETIM 4: EC002540 - DC-power supply
ETIM 5: EC002540 - DC-power supply
ETIM 6: EC002540 - DC-power supply
UNSPSC: 39121100
Object Classification Code: T
