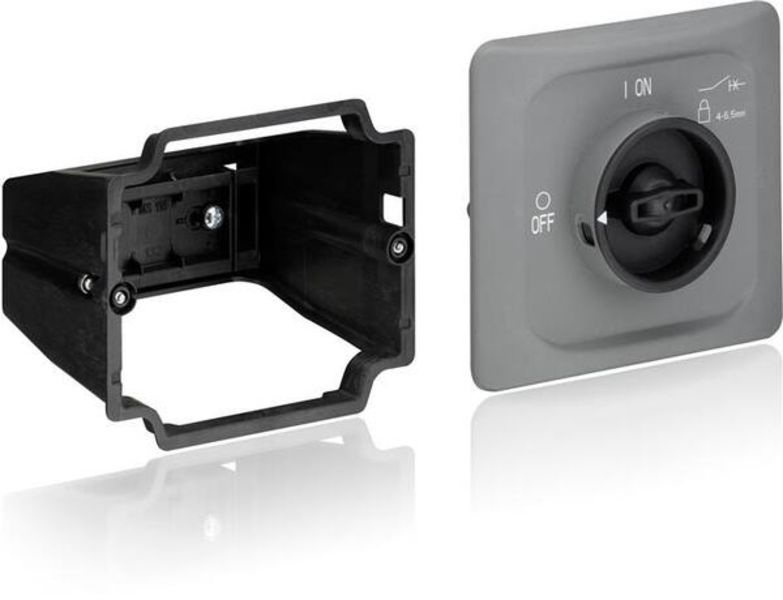

• ABB DMS325-G DMS325-G Door Mounting Kit Product Image
  • Abb DMS325-G Barcode

DMS325-G

Let Us Find It

Current response time:

8 Minutes 45 Seconds
  • Description: DMS325-G Door Mounting Kit
  • Product ID: 1SAM101941R1000
  • Extended Product Type: 1SAM101941R1000
  • Product Net Weight: 0.178 kg
  • Product Net Width: 119 mm
  • Product Net Height: 194 mm
  • Product Net Depth: 119 mm
  • Product Name: Door Mounting Kit
  • Degree of Protection: IP65
  • Ambient Air Temperature: Operation -25 . +70 C Storage -50 +80 C
  • Standards: IEC/EN 60947-1 IEC/EN 60947-4-1
  • Color: grey/black
  • Suitable For: MS325 MO325
  • eClass: 7.0 27379201
  • Actuator Type: Rotary Handle
  • Contact Position Indication: ON / OFF / TRIP
  • EAN: 4013614344619
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85369085
  • Package Level 1 Length: 141 mm
  • Package Level 1 Height: 129 mm
  • Package Level 1 Gross Weight: 0.282 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 129 mm
  • Suitable for Product Class: Manual Motor Starter
  • Remarks: For detailed specification see installation instruction.
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Instructions and Manuals: 2CDC131031M6802
  • Data Sheet, Technical Information: 1SBC100173C0201
  • Declaration of Conformity - CE: 1SAD938504-0021
  • RoHS Information: 1SAA918001-4402
  • ETIM 4: EC002498 - Accessories for low-voltage switch technology
  • ETIM 5: EC002498 - Accessories for low-voltage switch technology
  • ETIM 6: EC002498 - Accessories for low-voltage switch technology
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DMS325-G . Santa Clara Systems carries 36,673 items from ABB.
  • Dms325-G Door Mounting Kit Is Suitable For Manual Motor Starter Ms325. The Combination Of Manual Motor Starter And Door Mounting Kit Allows To Setup All Required Control And Protection Functions For Single Machine Installations. The Door Mounting Kit Has A Ip65 Degree Of Protection And Can Be Easily Integrated In Cubicals And Machines. Additional Mounting Of Auxiliary And Signalling Contacts
  • Dms325-G Door Mounting Kit Is Suitable For Manual Motor Starter Ms325. The Combination Of Manual Motor Starter And Door Mounting Kit Allows To Setup All Required Control And Protection Functions For Single Machine Installations. The Door Mounting Kit Has A Ip65 Degree Of Protection And Can Be Easily Integrated In Cubicals And Machines. Additional Mounting Of Auxiliary And Signalling Contacts
  • Shunt Trips And Undervoltage Release Is Possible. The Handle Is 3-Times Lockable In Off Position.
