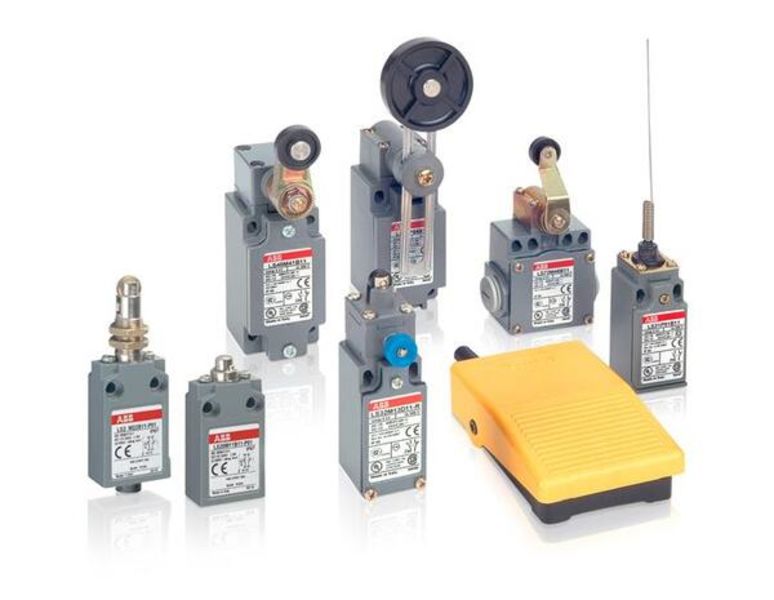

- Description: LS30P51L02 Limit Switch
- Product ID: 1SBV010251R1302
- Extended Product Type: 1SBV010251R1302
- Product Net Weight: 0.100 kg
- Product Net Width: 30 mm
- Product Main Type: LS30
- Product Name: Limit Switch
- Degree of Protection: acc. to IEC 60529 IP65
- Ambient Air Temperature: Operation -25 +70 C Storage -30 +80 C
- Standards: IEC 60947-1, IEC 60947-5-1, EN 60947-1, EN 60947-5-1, UL 508 and CSA C22-2 N14
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 6 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V
- Rated Frequency (f): Supply Circuit 50 Hz Supply Circuit 60 Hz
- Actuator Type: adjustable Ø 18 mm polyamide roller lever
- Mounting Position: all positions are authorised
- Number of Auxiliary Contacts NC: 2
- Mechanical Durability: 10 million
- Connecting Capacity: AWG 20 ... AWG 14 0.5 ... 2.5 mm
- Climatic Withstand: according to IEC 68-2-3 and salty mist according to IEC 68-2-11
- Connecting terminals (delivered in open position): M3.5 (+,-) pozidriv 2 screw with cable clamp
- Resistance Between Contacts: 25 m
- Pilot Duty of Contact Elements acc. UL508: A600 Q600
- Positive Opening Operation of NC Contact(s): No
- Terminal Marking: according to EN 50013
- Actuation Speed: acc. to IEC 60947-5-1 Max. 1.50 m/s acc. to IEC 60947-5-1 Min. 0.06 m/s
- Angular Head Adjustment: adjustable head every 90
- Movement to be Detected: 30 Cam Translation Movement
- EAN: 3471522007544
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85369085
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 118 mm
- Package Level 1 Height: 54 mm
- Package Level 1 Length: 32 mm
- Package Level 1 Gross Weight: 0.1 kg
- Package Level 1 EAN: 3471522007544
- Resistance to Shock acc. to IEC 60068-2-27: Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s
- Resistance to Vibrations acc. to IEC 60068-2-6: 25g (10 to 500 Hz) no change in position of contacts greater than 100 s
- Flammability According to UL94: V0
- Action Type of the Contact Element (acc. to IEC 60947-5-1): simultaneous slow action contacts
- Actuation Torque: acc. to IEC 60947-5-1 Min. 0.10 N·m
- Angular Lever Adjustment: 10 in 10
- Consistency (Measured over 1 Million Operations): 0.1 mm
- Contact Element Form (acc. to IEC 60947-5-1): Zb
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-5-1, q = 40 C 10.0 A
- Electrical Shock Protection acc. to IEC 536: Double insulation - Class II
- IIT Publishing Status: Level 0 - Information enabled
- Maximum Electrical Switching Frequency: 3600 cycles per hour
- Mounting by Screws (not supplied): 2 x M4 screws
- Number and Type of Bottom Cable Glands: Pg 13,5 Cable Gland
- Rated Operational Current AC-15 (I<sub>e</sub>): (130 V) 5.5 A (230 V) 3.1 A (240 V) 3 A (24 V) 10 A (400 V) 1.8 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (110 V) 0.6 / 66 A (24 V) 2.8 / 67.2 A (250 V) 0.27 / 67.5 A
- Data Sheet, Technical Information: 1SBC001699R1002
- Declaration of Conformity - CE: 1SBD250881C2000
- ETIM 4: EC001829 - Position switch modular
- ETIM 5: EC001829 - Position switch modular
- ETIM 6: EC001829 - Position switch modular
- UNSPSC: 39121500
