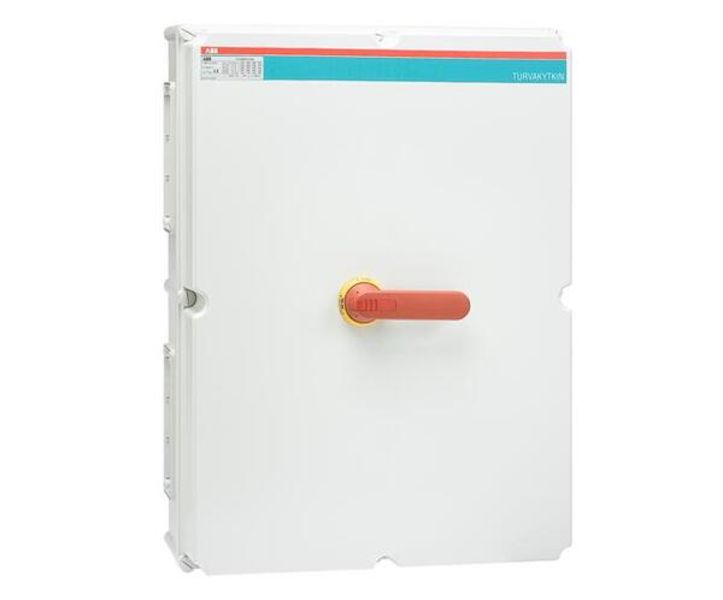

- Description: OT315KFCC6A Safety switch
- Product ID: 1SCA022292R7730
- Extended Product Type: 1SCA022292R7730
- Product Net Weight: 21 kg
- Product Net Width: 560 mm
- Product Net Height: 760 mm
- Product Net Depth: 250 mm
- Product Main Type: OT315
- Product Name: Safety switch
- Degree of Protection: acc. to IEC 60529 IP65
- Number of Poles: 6
- Number of Auxiliary Contacts NO: 4
- Number of Auxiliary Contacts NC: 2
- Enclosure Material: Plastic
- Order Multiple: 1 piece
- Position of Line Terminals: Top In - Bottom Out
- Cable Outlets Per Side: 2 x II-flange
- Cable Entry Position: Top and bottom
- EAN: 6417019076232
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 565 mm
- Package Level 1 Height: 330 mm
- Package Level 1 Length: 770 mm
- Package Level 1 Gross Weight: 21.6 kg
- Package Level 1 EAN: 6417019076232
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 315 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Position of PE Terminals: Top In - Bottom Out
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 315 A (690 V) 315 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 90 kW (400 V) 160 kW (500 V) 200 kW (690 V) 250 kW
- Rated Operational Voltage: 1000 V
- Data Sheet, Technical Information: 1SCC340006C0201
- Declaration of Conformity - CE: 1SCC340025D0203
- RoHS Information: 1SCC301149D0202
- ETIM 5: EC000249 - Protection switch disconnector housing
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT315KFCC6A . Santa Clara Systems carries 36,972 items from ABB.
- Safety Switch 6-P.400v Ac23a 160kw Ac22a 315a Plastic Enclosure Ip65 Yellow-Red Pistol Handle
