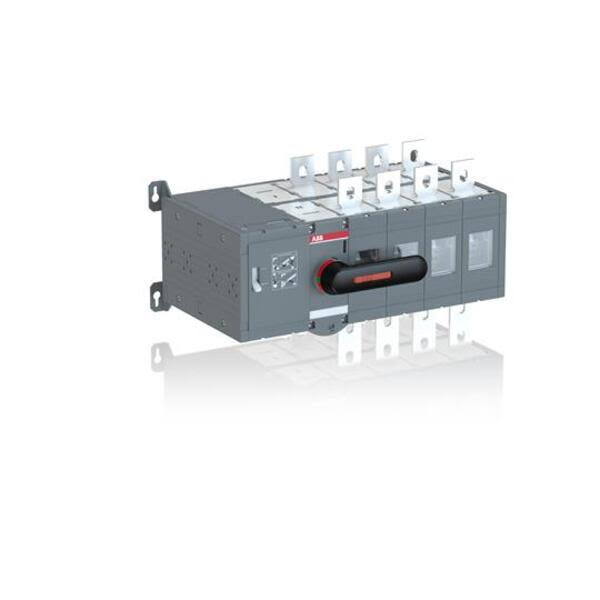

- Description: OTM630E4CM230C MOTORIZED C/O SWITCH
- Product ID: 1SCA022873R1990
- Extended Product Type: 1SCA022873R1990
- Product Net Weight: 25 kg
- Product Net Width: 476 mm
- Product Net Height: 250 mm
- Product Net Depth: 299 mm
- Product Main Type: OTM630_CM
- Product Name: MOTORIZED C/O SWITCH
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 4
- Power Loss: 25 W
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- EAN: 6417019339702
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 310 mm
- Package Level 1 Height: 330 mm
- Package Level 1 Length: 560 mm
- Package Level 1 Gross Weight: 25.19 kg
- Package Level 1 EAN: 6417019339702
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 °C 630 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 630 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 630 A (690 V) 630 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 200 kW (400 V) 355 kW (500 V) 400 kW (690 V) 630 kW
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 20 kiloampere rms
- Data Sheet, Technical Information: 1SCC303003C0201
- Declaration of Conformity - CE: 1SCC303018D0201
- RoHS Information: 1SCC303036D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTM630E4CM230C . Santa Clara Systems carries 37,005 items from ABB.
- Including A Handle For Manual Operation
- Including A Handle For Manual Operation
- Bolt Kit With Nut And Washers For All Terminals And Male Connectors For Control Circuits. Include A Storage Clip For The Handle And Spare Fuses.
