S804C-C25

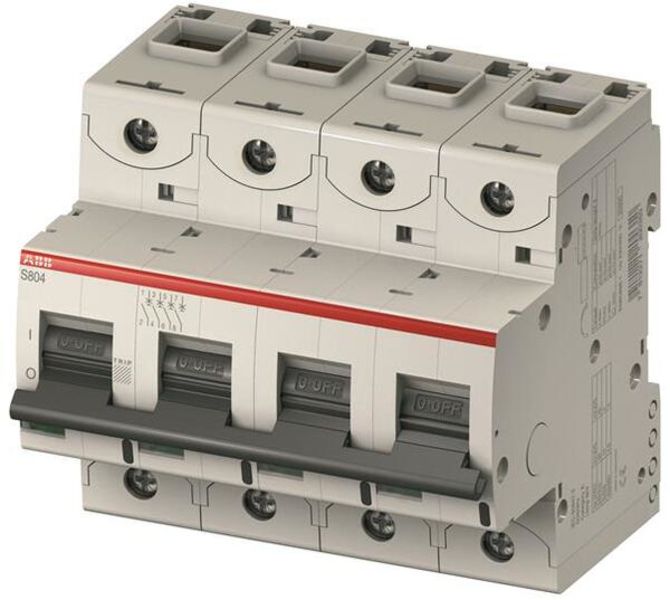

ABB - S804C-C25 High Performance Circuit Breaker

Current response time:

By 5AM PT on Thursday

Emergency?

Description: S804C-C25 High Performance Circuit Breaker
Product ID: 2CCS884001R0254
Extended Product Type: 2CCS884001R0254
Product Net Weight: 0.98 kg
Product Net Width: 106 mm
Product Net Height: 95 mm
Product Net Depth: 82.5 mm
Degree of Protection: acc. to IEC 60529 IP20
Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
Standards: IEC/EN 60947-2 IEC/EN 60898-1
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 500 V AC
Number of Poles: 4
Terminal Type: Screw Terminals
Rated Current (In): 25 A
Rated Frequency (f): 50 / 60 Hz
Power Loss: at Rated Operating Conditions per Pole 4.3 W
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Tightening Torque: 3.5 N·m 31 in·lb
Mounting Position: Any
Tripping Characteristic: C
Connecting Capacity: Stranded 1 ... 50 mm² Flexible 1 …70 mm²
Contact Position Indication: ON / OFF / TRIP
Overvoltage Category: IV
Environmental Conditions: Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96% Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100% Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
Housing Material: Insulation group I, RAL 7035
Electrical Endurance: 10000 cycle
Mechanical Endurance: 10000 cycle
Operational Voltage: Maximum 230/400 V AC Minimum 12 V AC

Energy Limiting Class: 3
EAN: 7612271212797
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362020
Package Level 1 Width: 105 mm
Package Level 1 Length: 111 mm
Package Level 1 Height: 99 mm
Package Level 1 Gross Weight: 1.01 kg
Package Level 1 EAN: 7612271212797
Package Level 1 Units: 1 piece
Resistance to Shock acc. to IEC 60068-2-27: 5 g 30 ms
Resistance to Vibrations acc. to IEC 60068-2-6: 2 - 13.2 Hz / 1mm 13.2 - 100Hz / 0.7g with load 100% x Ie
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Rated Operational Voltage: 254/440 V
Rated Short-Circuit Capacity (Icn): (230 / 400 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (240 / 415 V AC) 25 kA (254 / 440 V AC) 15 kA (125 V DC) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (240 / 415 V AC) 18 kA (254 / 440 V AC) 10 kA (125 V DC) 10 kA
Pollution Degree: 3
Remarks: Connection from top and bottom Connecting with CU only IP40 in enclosure with cover Cage terminal with captive screw
Recommended Screw Driver: Pozidriv 2
Instructions and Manuals: 2CCC413016M0004
Data Sheet, Technical Information: 2CCC413003C0203
Declaration of Conformity - CE: 2CCC413016D060
RoHS Information: 2CCC413008D0204
ETIM 4: EC000042 - Miniature circuit breaker (MCB)
ETIM 5: EC000042 - Miniature circuit breaker (MCB)
ETIM 6: EC000042 - Miniature circuit breaker (MCB)
Object Classification Code: F

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S804C-C25 . Santa Clara Systems carries 37,000 items from ABB.

Commercial And Industrial Applications. It Has Numerous Of Approvals
Therefore It Can Be Used Worldwide. The Extensive Range Of Accessory Makes The Use Of S804c-C25 More Comfortable. Due To The Fast Arc Extinction Of S804c-C25 Your Application Will Be Secured.

The S804c-C25 Is A 4-Pole High Performance Circuit Breaker With C-Characteristic
With Cage Terminal And A Rated Current Of 25 A. It Is A Current Limiting Device With A Maximum Breaking Capacity Of 25ka At 240/415v. It Can Be Used For Voltages Up To 254/440v And In Dc As Well. It Has Two Different Tripping Mechanisms
The Thermal Tripping Mechanism For Overload Protection And The Electromechanic Tripping Mechanism For Short Circuit Protection. The S804c-C25 Complies With Iec/en 60898-1 And Iec/en 60947-2 And Allows The Use For Residential
