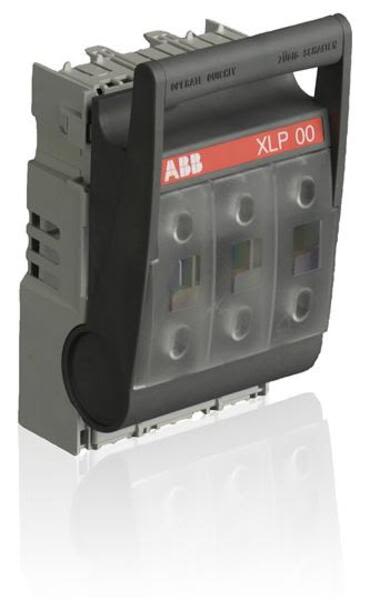

- Description: 160 A with MNS adapter incl. 3 Bridge Clamps
- Product ID: 1SEP101890R0402
- Extended Product Type: 1SEP101890R0402
- Product Net Weight: 0.88 kg
- Product Net Width: 0.105 m
- Product Net Height: 0.187 m
- Product Net Depth: 0.21 m
- Product Main Type: EasyLine
- Product Name: Fuse Switch Disconnector
- Degree of Protection: acc. to IEC 60529 Front IP30
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): Main Circuit 8 kV
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): Main Circuit 160 A
- Frequency (<i>f</i>): 50/60 Hz
- Handle Type: detach
- Fuse Size: 00
- Fuse Type: NH
- EAN: 7025840023289
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363000
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 0.105 m
- Package Level 1 Height: 0.187 m
- Package Level 1 Length: 0.21 m
- Package Level 1 Gross Weight: 0.88 kg
- Package Level 2 EAN: 7025840023289
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01
- Fuse Protected Short-Circuit Making: 50 kA
- Fuse Protected Short-Circuit Withstand: 50 kA
- Fuse System: DIN
- Rated Operational Current AC-21B (I<sub>e</sub>): (690 V) 125 A
- Rated Operational Current AC-22B (I<sub>e</sub>): (500 V) 160 A
- Rated Operational Current AC-23B (I<sub>e</sub>): (380 ... 415 V) 125 A
- Data Sheet, Technical Information: 1SEC312011B0202
- ETIM 4: EC001040 - Fuse switch disconnector
- ETIM 5: EC001040 - Fuse switch disconnector
- Object Classification Code: Q
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XLP00-W-MNS-ADAPTER-3BC . Santa Clara Systems carries 37,000 items from ABB.
- Xlp00-W/mns Adapter-3bc 160 A With Mns Adapter Incl. 3 Bridge Clamps
