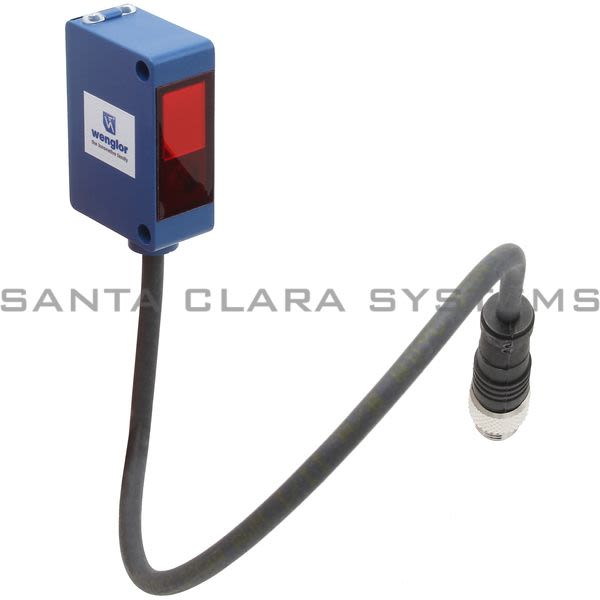

• Wenglor P1KY003 Laser Distance Sensor Time of Flight Product Image
  • Wenglor P1KY003 Laser Distance Sensor Time of Flight Product Image

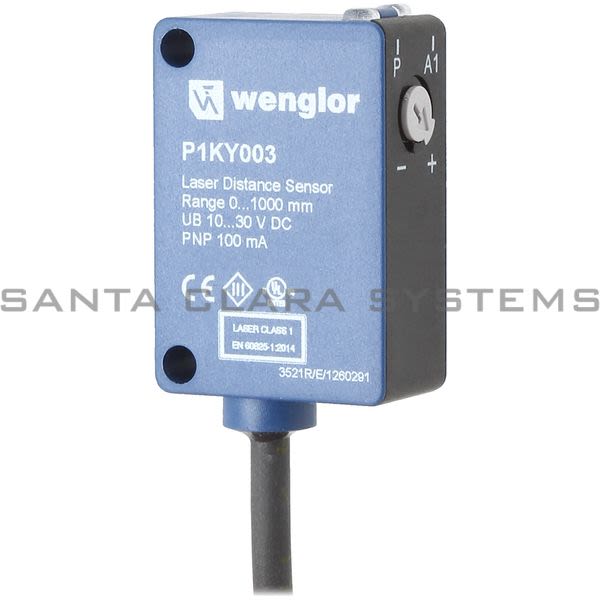

  • Wenglor P1KY003 Laser Distance Sensor Time of Flight Product Image

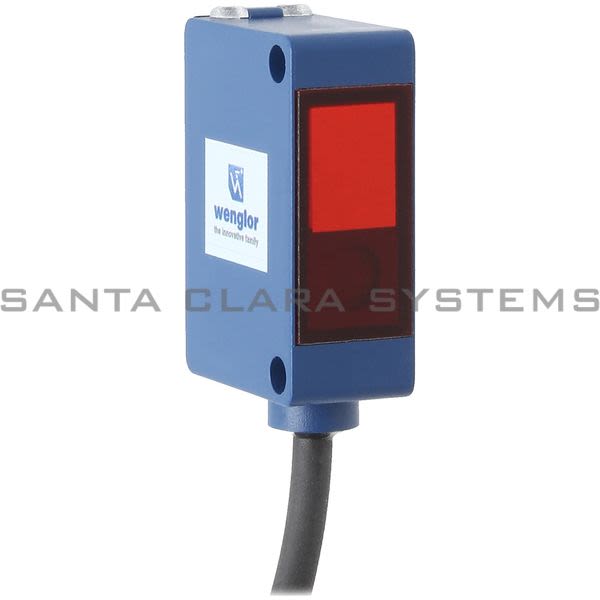

  • Wenglor P1KY003 Laser Distance Sensor Time of Flight Product Image
  • Wenglor P1KY003 Barcode

P1KY003

Product Summary:

  • Working Range: 0...1000 mm
  • Adjustable Range: 100...1000 mm
  • Switching Hysteresis: < 20 mm
  • Light Source: Laser (red)
  • Wavelength: 680 nm
Get a Quote

Current response time:

14 Minutes 7 Seconds
  • Description: Laser Distance Sensor Time of Flight
  • Working Range: 0...1000 mm
  • Adjustable Range: 100...1000 mm
  • Switching Hysteresis: < 20 mm
  • Light Source: Laser (red)
  • Wavelength: 680 nm
  • Service Life (T = +25 C): 100000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 16 mrad
  • Max. Ambient Light: 10000 Lux
  • Supply Voltage: 10...30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 1000 Hz
  • Response Time: 0,5 ms
  • Temperature Drift: < 2,5 %
  • Temperature Range: -40...50 C
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2,5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 1620293-001
  • Setting Method: Potentiometer
  • Housing Material: Plastic
  • Optic Cover: PMMA
  • Degree of Protection: IP67

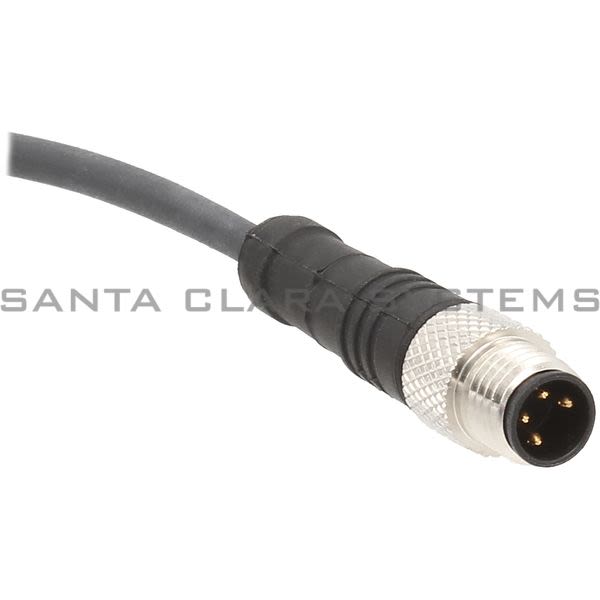

  • Connection: M8 1; 4-pin
  • Cable Length: 200 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KY003 . Santa Clara Systems carries 3,776 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
