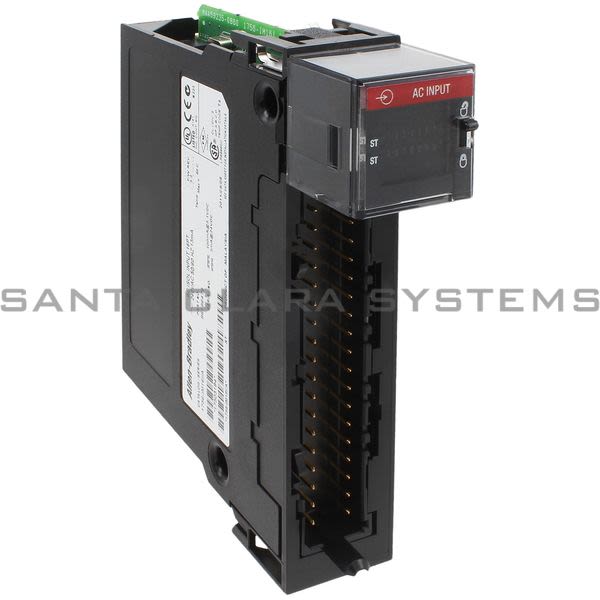

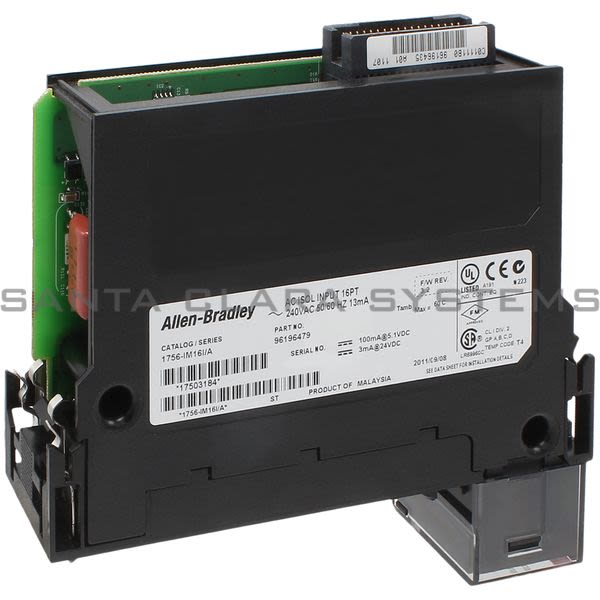

- Description: Input Module | ControlLogix
- Product Type: 240V AC Input Module
- Product Series: 1756 ControlLogix I/O Modules
- Inputs: 16 individually isolated
- Voltage category: 240V AC 50/60 Hz
- Operating voltage range: 159...265V AC, 47...63 Hz
- Input voltage, nom: 240V AC 50/60 Hz
- Current draw @ 5.1V: 100 mA
- Current draw @ 24V: 3 mA
- Total backplane power: 0.58 W
- Thermal dissipation: 19.78 BTU/hr
- Off-state voltage, max: 40V
- Off-state current, max: 2.5 mA
- On-state current, min: 5 mA @ 159V AC, 60 Hz
- On-state current, max: 13 mA @ 265V AC, 60 Hz
- Inrush current, max: 250 mA
- Change of state: Software configurable
- Isolation voltage: 250V (continuous), basic insulation type, inputs-to-backplane, and input-to-input
- Module keying: Electronic, software configurable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IM16I . Santa Clara Systems carries 53,639 items from Allen Bradley.
