1756-IN16

Get a Quote

Current response time:

4 Minutes 27 Seconds

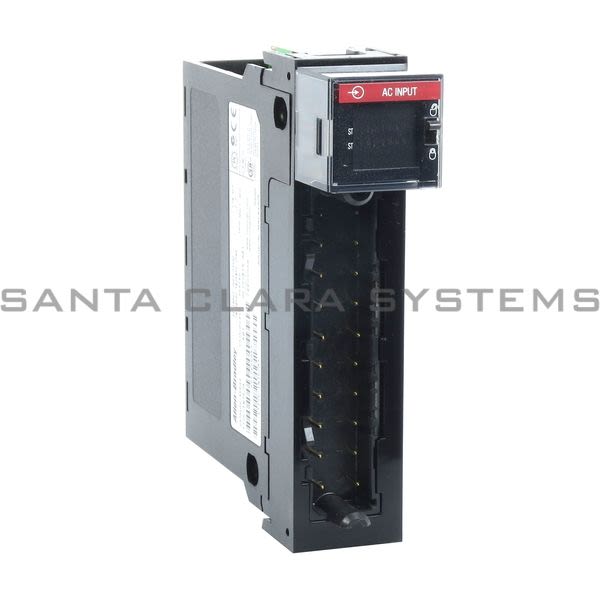

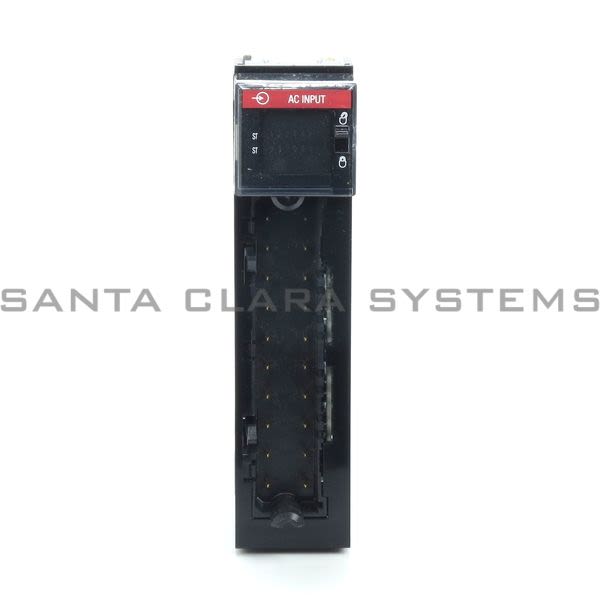

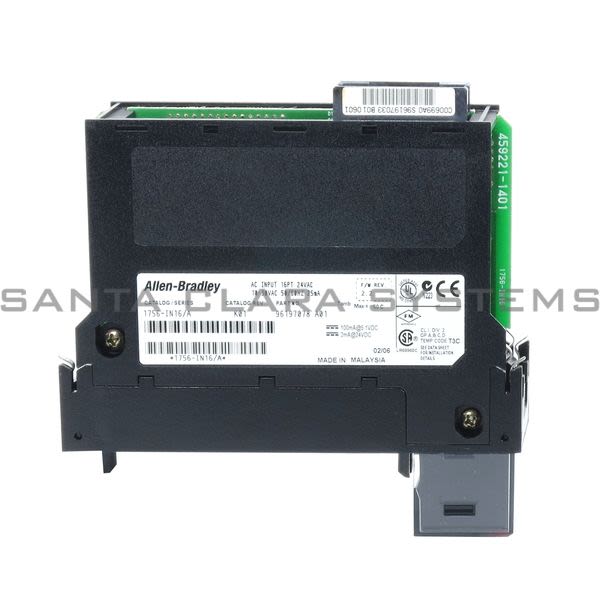

  • Description: Input Module | ControlLogix
  • Product Type: AC (1030V) Input Module
  • Product Series: 1756 ControlLogix I/O Modules
  • Inputs: 16 (8 points/group)
  • Voltage category: 24V AC 50/60 Hz
  • Operating voltage range: 10...30V AC, 47...63 Hz
  • Input voltage, nom: 24V AC 50/60 Hz
  • Backplane voltage: 5.1V DC, 135 mA | 24V DC, 2 mA
  • Inputs Current: 10...30V AC, 50/60Hz 25 mA max
  • Current draw @ 5.1V: 135 mA
  • Current draw @ 24V: 2 mA
  • Total backplane power: 0.56 W
  • Thermal dissipation: 17.39 BTU/hr
  • Off-state voltage, max: 5V
  • Off-state current, max: 2.75 mA
  • On-state current, min: 5 mA @ 10V AC, 60 Hz
  • On-state current, max: 1.2 mA @ 30V AC, 60 Hz
  • Inrush current, max: 250 mA
  • Change of state: Software configurable
