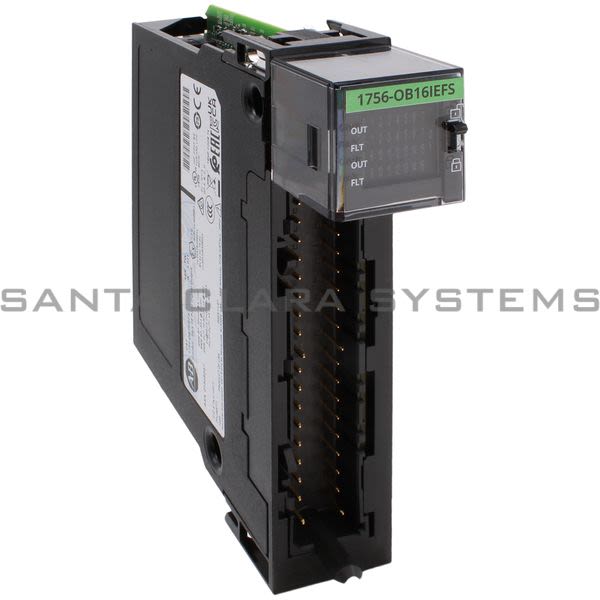

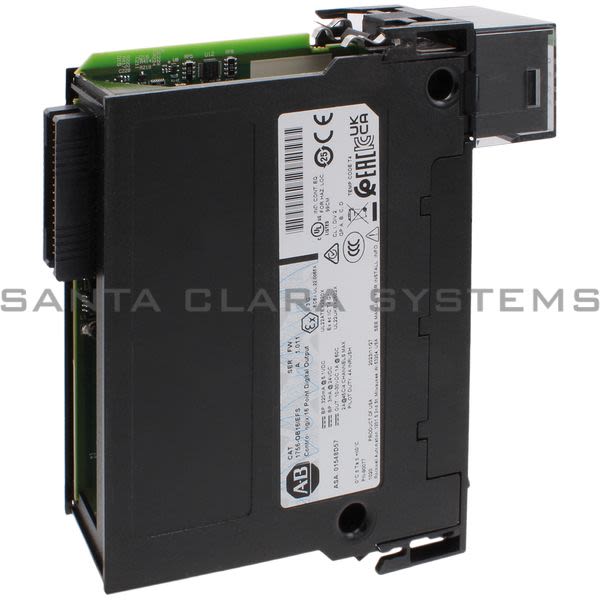

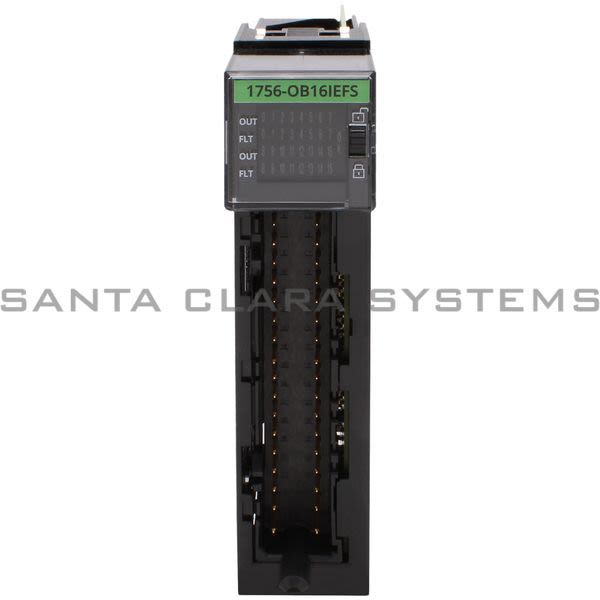

1756-OB16IEFS

Allen Bradley - 16 Point Digital Output | ControlLogix

Product Summary:

Enclosure type: None (open-style)
Product Series: 1756 ControlLogix I/O Modules
No. of Outputs: 16 Scheduled, Individually Isolated
Voltage category: 12/24V DC sink/source
Current draw @ 5.1V: 320 mA

Current response time:

By 5AM PT on Thursday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: 16 Point Digital Output | ControlLogix
Enclosure type: None (open-style)
Product Type: DC (10...30V) Scheduled Electronically Protected, Sinking, or Sourcing Isolated, Fast Output Module
Product Series: 1756 ControlLogix I/O Modules
No. of Outputs: 16 Scheduled, Individually Isolated
Voltage category: 12/24V DC sink/source
Current draw @ 5.1V: 320 mA
Current draw @ 24V: 3 mA

Total backplane power: 1.7 W
Power dissipation: 4.9 W max (16 channels @ 1 A or 4 channels @ 2 A)
Thermal dissipation: 16.71 BTU/hr
Off-state leakage current per point, max: < 0.1 mA per point
Surge current per point: 4 A for 10 ms per point, repeatable every 2 s
Load current, min: 1 mA per point
Isolation voltage: 250V (continuous)
Reverse polarity protection: No

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OB16IEFS . Santa Clara Systems carries 55,747 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
