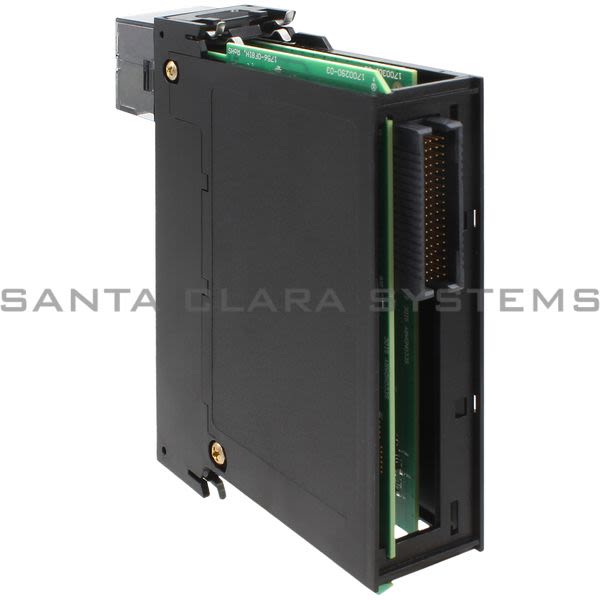

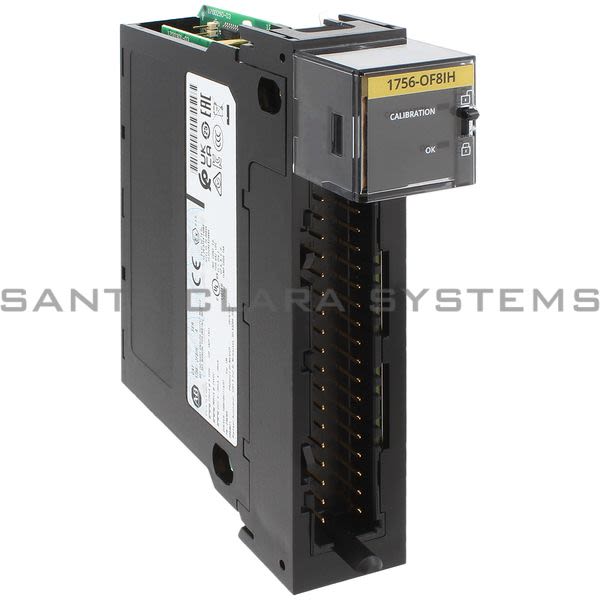

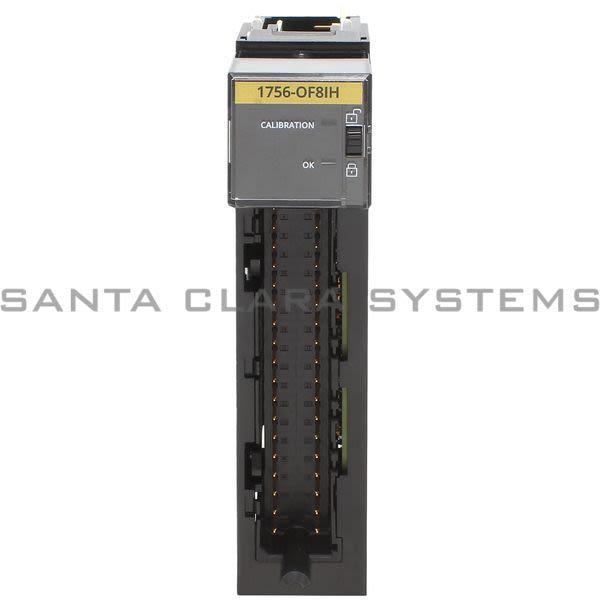

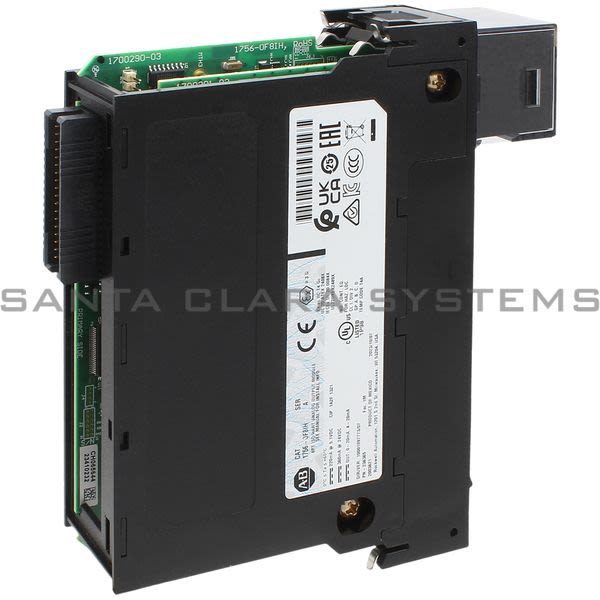

1756-OF8IH

Allen Bradley - Isolated Analog Output Module - 8-Channel HART

Product Summary:

Resolution: 15 bits across 24 mA, 732 nA per bit
Product Type: Isolated HART Current Analog Output Module
Product Series: 1756 ControlLogix I/O Modules
Outputs: 8 current
Output range: 0...20 mA | 4...20 mA

Current response time:

11 Minutes 51 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Isolated Analog Output Module - 8-Channel HART
Resolution: 15 bits across 24 mA, 732 nA per bit
Product Type: Isolated HART Current Analog Output Module
Product Series: 1756 ControlLogix I/O Modules
Outputs: 8 current
Output range: 0...20 mA | 4...20 mA
Voltage and current ratings, backplane: 220 mA @ 5.1V DC, 360 mA @ 24V DC
Voltage and current ratings, Output Voltage: 5...30V DC
Voltage and current ratings, Output current: 0...20 mA, 4...20 mA

Power dissipation, max: 6.5 W nominal
Current draw @ 24V: 400 mA (estimated)
Open circuit detection: Current output only (output must be set >= 0.1 mA)
Output short circuit protection: Current electronically limited to <= 21 mA with no damage
Overvoltage protection, max: ±24V DC
Calibration interval: 12 months typical
Module error: 0.3% @ 4...20 mA
Output conversion method: R-Ladder DAC
Data format: IEEE 32-bit floating point
