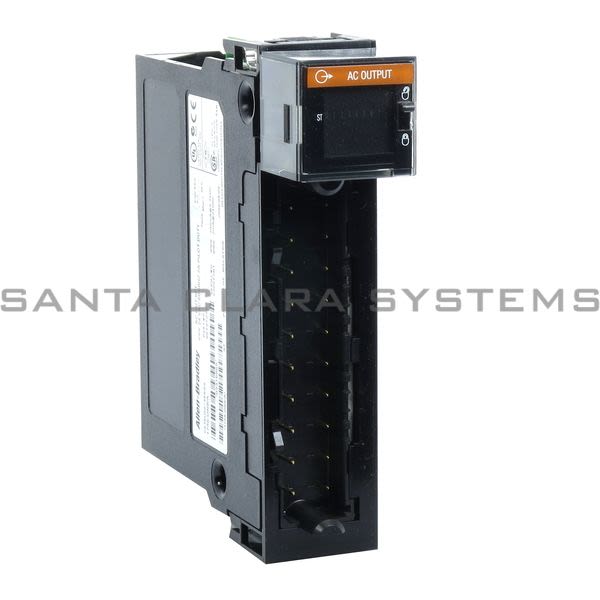

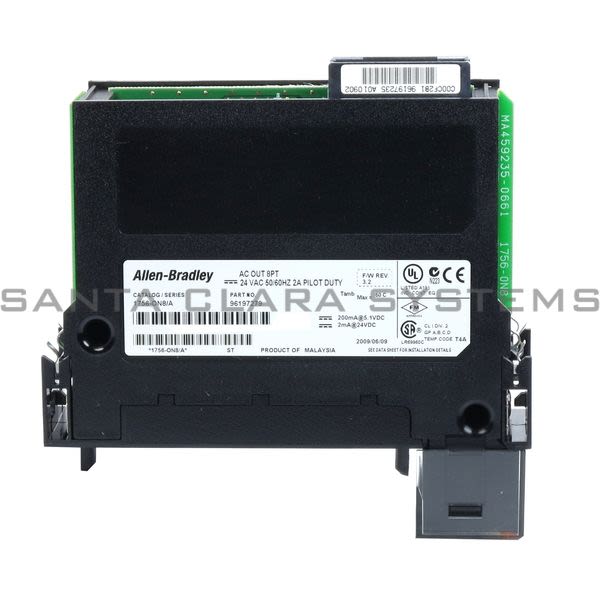

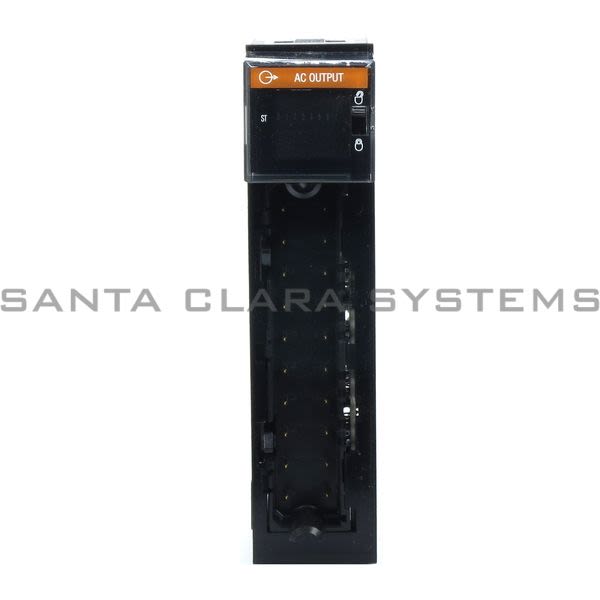

- Description: Output Module | ControlLogix
- Product Type: 24V AC Output Module
- Product Series: 1756 ControlLogix I/O Modules
- Outputs: 8 (4 points/group)
- Voltage category: 24V AC 50/60 Hz
- Operating voltage range: 10...30V AC, current >50 mA, 47...63Hz | 16...30V AC, current <50 mA, 47...63Hz
- Output delay time, Off to On/On to Off: 9.3 ms @ 60 Hz 11 ms @ 50 Hz
- Voltage and current ratings, backplane: 5.1V DC, 200 mA | 24V DC, 2 mA
- Voltage and current ratings, Output: 10...30V AC, 50/60Hz, 2 A Pilot Duty (DC-13/SQ)
- Voltage and current ratings, MDL: 5A/4A 30 C/60 C
- Current draw @ 5.1V: 200 mA
- Current draw @ 24V: 2 mA
- Total backplane power: 1.07 W
- Thermal dissipation: 17.39 BTU/hr
- Off-state leakage current, max: 3 mA per point
- On-state voltage drop, max: 1.5V peak @ 2 A | 6V peak @ load current < 50 mA
- Load current, min: 10 mA per point
- Isolation voltage: 250V (continuous)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-ON8 . Santa Clara Systems carries 53,635 items from Allen Bradley.
