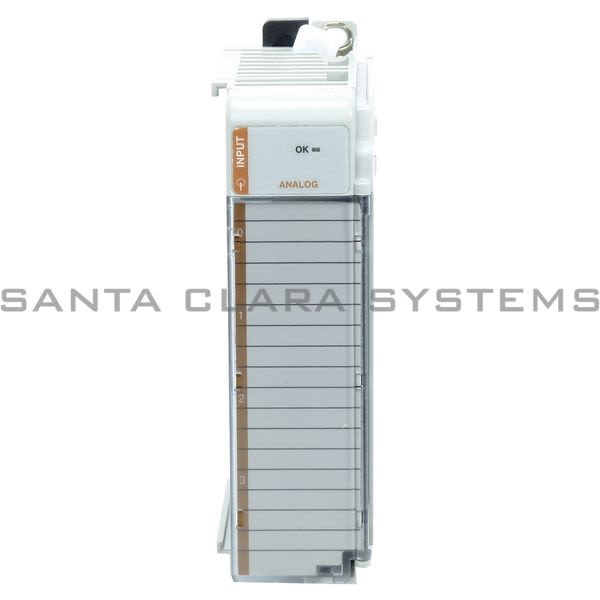

• Allen Bradley 1769-IF4I Isolated Analog Input Product Image
  • Allen Bradley 1769-IF4I Isolated Analog Input Product Image
  • Allen Bradley 1769-IF4I Isolated Analog Input Product Image
  • Allen Bradley 1769-IF4I Barcode
  • Allen Bradley 1769-IF4I User Manual

    User Manual

  • Allen Bradley 1769-IF4I Installation Instructions

    Installation Instructions

  • Allen Bradley 1769-IF4I Technical Data

    Technical Data

  • Allen Bradley 1769-IF4I Selection Guide

    Selection Guide

  • More Catalog PDFs

    More PDFs

1769-IF4I

Product Summary:

  • Inputs: 4 insolated differential
  • Bus current draw: 5V DC, 140 mA / 24V DC, 110 mA
  • Heat dissipation, max: 3.0 W
  • Converter type: Delta Sigma
  • Rated working voltage: 30V AC/30V DC
Get a Quote
           or
  • Description: Isolated Analog Input
  • Repeatability: +0.03%
  • Weight, approx: 300 g (0.65 lb)
  • Dimensions (HxWxD), approx: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
  • Slot width: 1
  • Module location: DIN rail or panel mount
  • Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
  • Power supply distance rating: 8 modules
  • Terminal screw torque: 0.68 N m (6lbs in)
  • Retaining screw torque: 0.46 N m (4.1 lb in)
  • Inputs: 4 insolated differential
  • Bus current draw: 5V DC, 140 mA / 24V DC, 110 mA
  • Heat dissipation, max: 3.0 W
  • Converter type: Delta Sigma
  • Resolution: 16 bits (unipolar) / 15 bits plus sign (bipolar)
  • Rated working voltage: 30V AC/30V DC
  • Common mode voltage range: +10V DC max per channel
  • Commone mode rejection: >60 dB @ 50 and 60 Hz with the 10 Hz filter selected
  • Normal mode rejection ration: -50 dB @ 50 and 60 Hz with the 10 Hz filter selected
  • Nonlinearity: +0.03%
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1769-IF4I . Santa Clara Systems carries 45,700 items from Allen Bradley.
