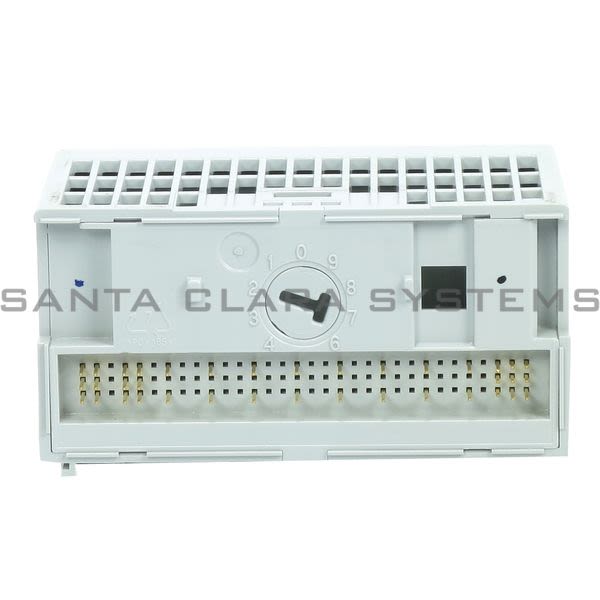

• Allen Bradley 1794-OB16 Output Module | FlexLogix Product Image

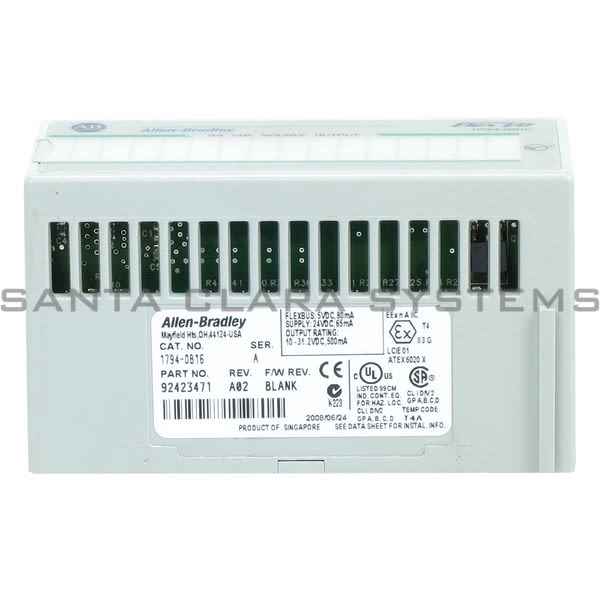

  • Allen Bradley 1794-OB16 Output Module | FlexLogix Product Image

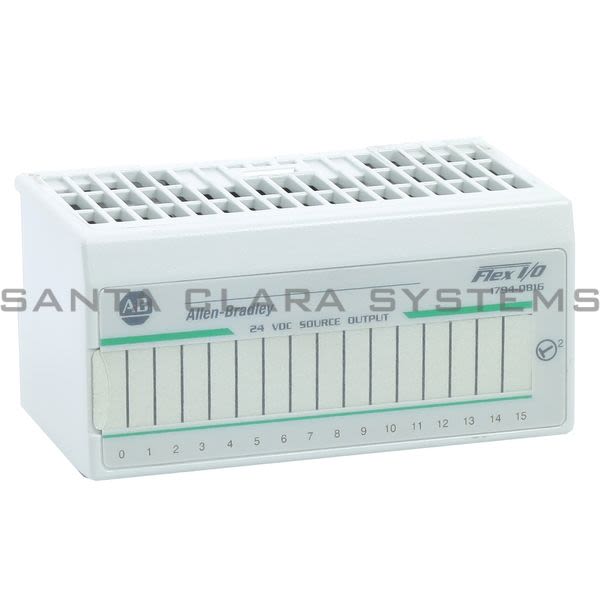

  • Allen Bradley 1794-OB16 Output Module | FlexLogix Product Image

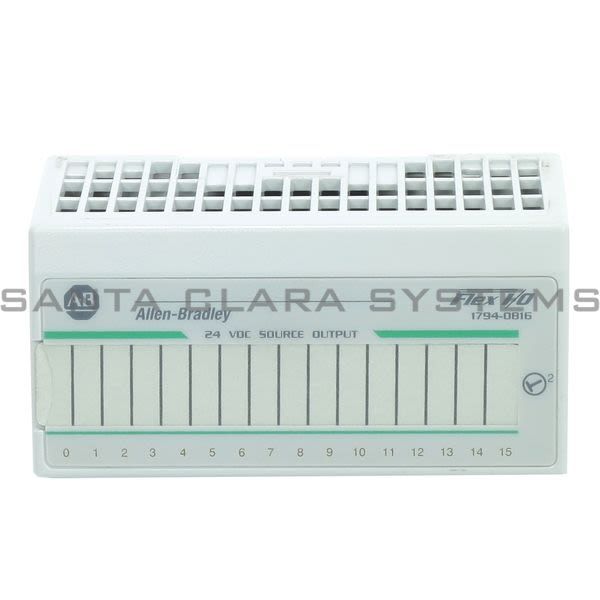

  • Allen Bradley 1794-OB16 Output Module | FlexLogix Product Image
  • Allen Bradley 1794-OB16 Barcode
  • Allen Bradley 1794-OB16 Installation Instructions

    Installation Instructions

  • Allen Bradley 1794-OB16 Reference Manual

    Reference Manual

  • Allen Bradley 1794-OB16 User Manual

    User Manual

  • Allen Bradley 1794-OB16 Selection Guide

    Selection Guide

  • More Catalog PDFs

    More PDFs

1794-OB16

Product Summary:

  • Number of Outputs: 16, Current, Sourcing
  • On-State Voltage, Output Min: 10V DC
  • On-State Voltage, Output Nom: 24V DC
  • On-State Voltage, Output Max: 31.2V DC
  • Output Current Rating: 8.0 A (16 Outputs @ 0.5 A)
Get a Quote

Current response time:

7 Minutes 37 Seconds
  • Description: Output Module | FlexLogix
  • Surge Current: 2 A for 50 ms, Repeatable Every 2 Seconds
  • Off-State Leakage Current, Max: 0.5 mA
  • Isolation Voltage: 50V (Continuous)
  • FlexBus Current: 80 mA @ 5V DC
  • Power Dissipation, Max: 5.3 W @ 31.2V DC
  • Thermal Dissipation, Max: 18.1 BTU/hr @ 31.2V DC
  • Number of Outputs: 16, Current, Sourcing
  • On-State Voltage, Output Min: 10V DC
  • On-State Voltage, Output Nom: 24V DC
  • On-State Voltage, Output Max: 31.2V DC
  • Output Current Rating: 8.0 A (16 Outputs @ 0.5 A)
  • On-State Current, Output, Min: 1.0 mA per Channel
  • On-State Current, Output, Max: 500 mA per Channel
  • On-State Voltage Drop, Max: 0.5V DC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1794-OB16 . Santa Clara Systems carries 46,816 items from Allen Bradley.
