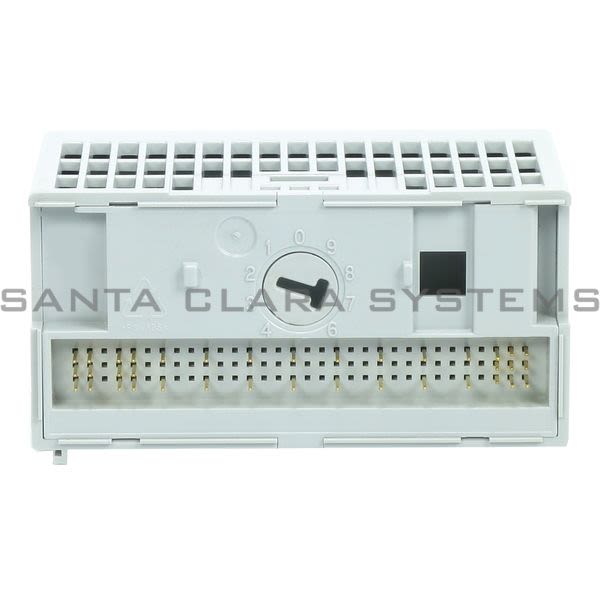

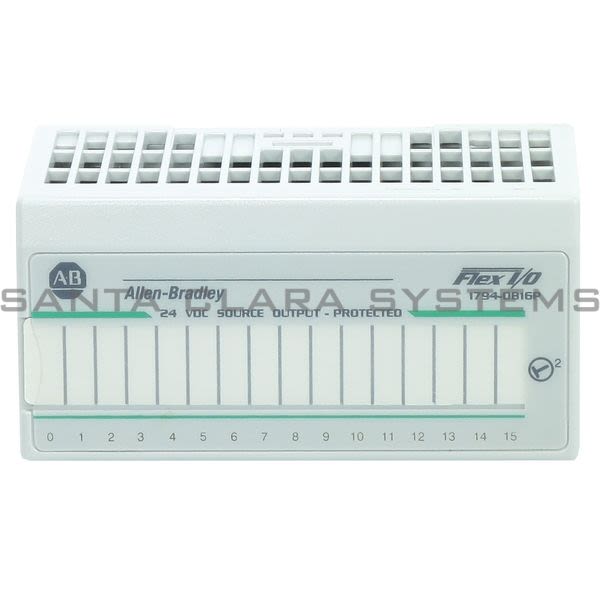

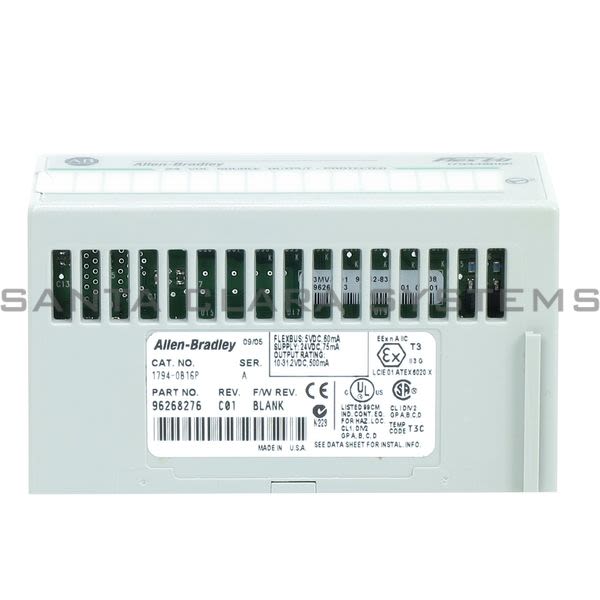

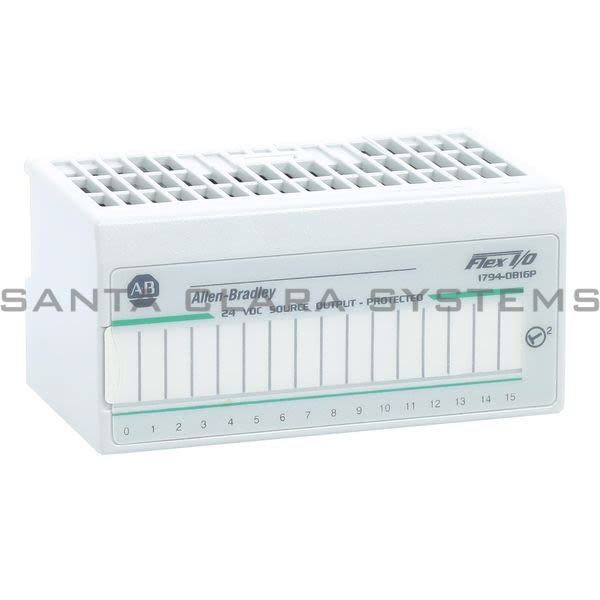

1794-OB16P

Allen Bradley - Output Module | FlexLogix

Current response time:

8 Minutes 51 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module | FlexLogix
Output current rating: 8.0 A (16 outputs @ 0.5 A)
Outputs: 16, current, sourcing
On-State Voltage, Output Min: 10 V DC
On-State Voltage, Output Nom: 24 V DC
Surge Current: 1.5 A for 50 ms, repeatable every 2 seconds
Isolation Voltage: 50V (continuous), Basic Insulation Type Type tested at 2121V DC for 60 s, between field side and system No isolation between individual channels

FlexBus Current: 60 mA @ 5V DC
Fusing: Outputs are electronically protected.
Number of outputs: 16, current, sourcing
Off-state leakage current, max: 0.5 mA
Power dissipation, max: 5.0 W @ 31.2V DC
Thermal dissipation, max: 17.0 BTU/hr @ 31.2V DC

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1794-OB16P . Santa Clara Systems carries 53,635 items from Allen Bradley.
