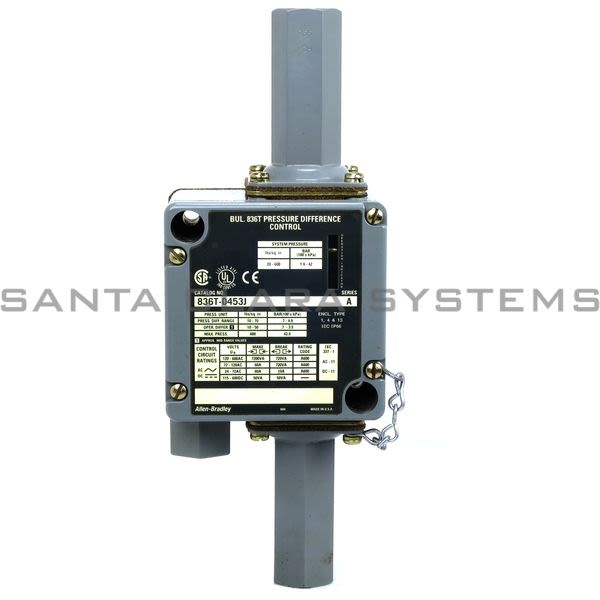

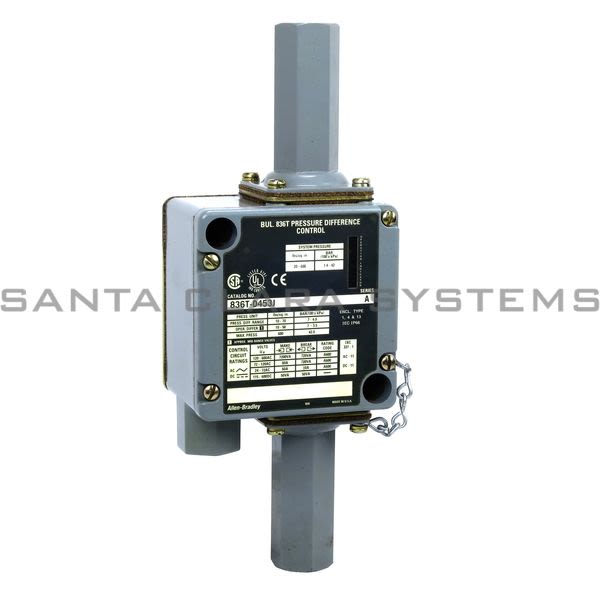

836T-D453J

Allen Bradley - Pressure Difference Control

Current response time:

18 Minutes 25 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Difference Control
Operator Type: With Copper Alloy BellowsCopper Bellows may not be used on water or air, and other liquids or gases not corrosive to this alloy.
Enclosure Type: Enclosure Type 1, 4 and 13 Industrial use.
Custom Trip or Reset Setting: Default Factory SettingStandard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Contact Block Type: S.P.D.T. , 2 - circuit contact block
Maximum Line Pressure: 600 psi

Style of Device: D - Style Pressure Difference ControlIndependently adjustable system difference range and differential, Two bellows operation, one bellows connected to each system.
Adjustable Pressure Selection (Operating Range): 70 psi
Adjustable Differential (Approximate Mid-Range Values): 10 psi
MinPressure: 0 psi
Ordering Modifications: No Modifications

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 836T-D453J . Santa Clara Systems carries 55,073 items from Allen Bradley.
