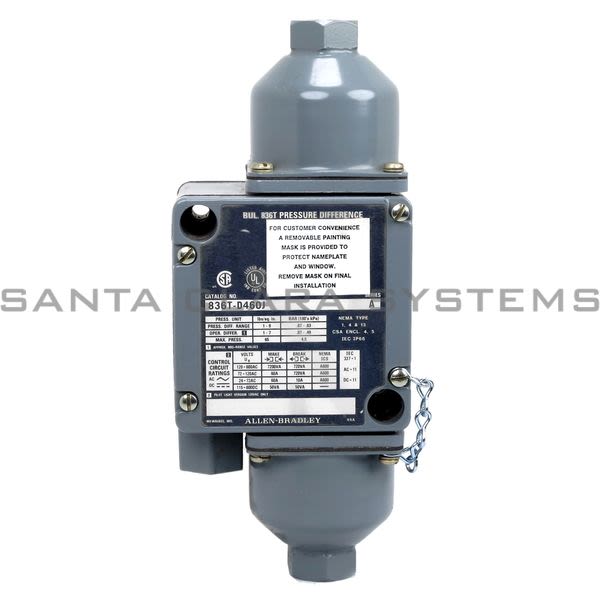

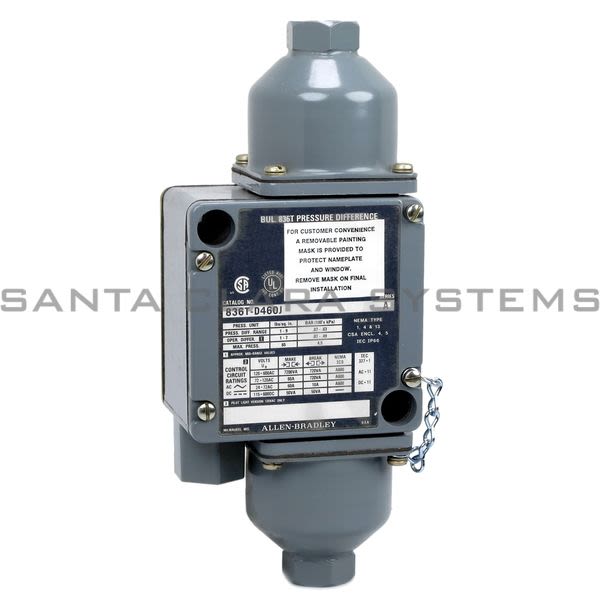

836T-D460J

Allen Bradley - Pressure Switch

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Switch
Operator Type: With Type 316 Stainless Steel BellowsType 316 stainless steel bellows are available for more corrosive gasses.
Enclosure Type: Enclosure Type 1, 4 and 13 Industrial use.
Custom Trip or Reset Setting: Default Factory SettingStandard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Contact Block Type: S.P.D.T. , 2 - circuit contact block
Maximum Line Pressure: 65 psi

Style of Device: D - Style Pressure Difference ControlIndependently adjustable system difference range and differential, Two bellows operation, one bellows connected to each system.
Adjustable Pressure Selection (Operating Range): 9 psi
Adjustable Differential (Approximate Mid-Range Values): 1 psi
MinPressure: 30in Hg Vac.
Ordering Modifications: No Modifications

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 836T-D460J . Santa Clara Systems carries 55,605 items from Allen Bradley.

836T-D460J Catalog
