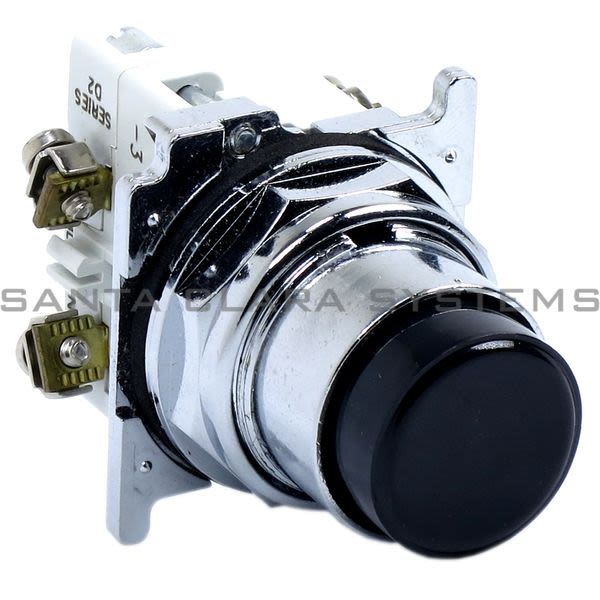

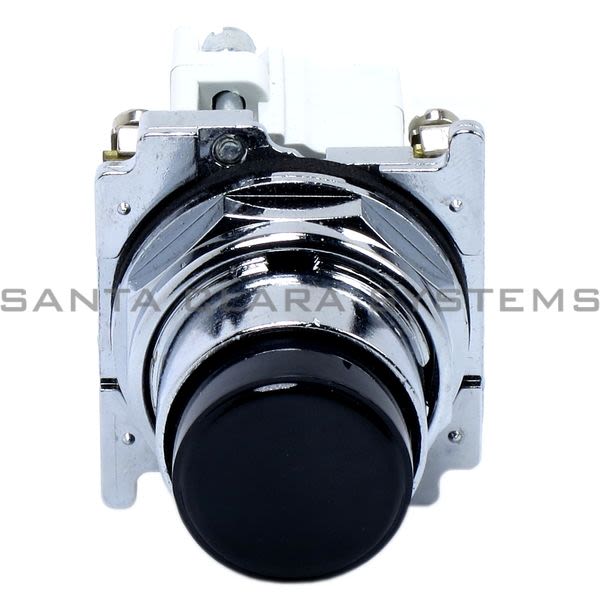

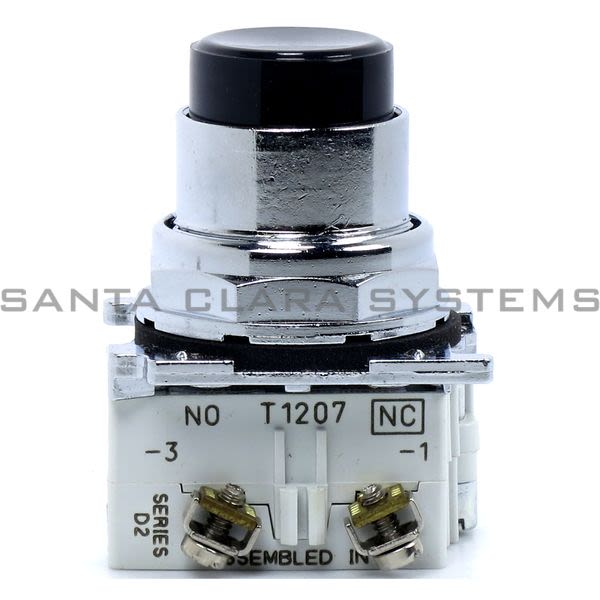

10250T31B

Cutler-Hammer - Push Button

Product Summary:

UPC: 782113145457
Contacts: 1NO; 1NC
Terminal Type: Exposed Screw
Contact configuration: 1NO-1NC
Operating mode: Momentary

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Push Button
UPC: 782113145457
Contacts: 1NO; 1NC
Terminal Type: Exposed Screw
Contact configuration: 1NO-1NC
Operating mode: Momentary
Nominal Mounting Size: 30 MM
Operation: Momentary
Lens/Button Shape: Round Extended
Lens/Button Color: Black
Bezel: Metal Round
Max Voltage: 660 VAC;660 VDC
Current (A): 10 Amps
IEC Rating: IP65
NEMA Rating: 1;2;3;3R;4;4X;12;13
Approvals: UL;CSA;CE

H x W x D: 3.4 in x 2 in x 2.4 in
Net Weight: 4.8 OZ
Gross Weight: 5.6 OZ
Series: 10250T
Type: 30.5 mm, Heavy-Duty
Actuator color: Black
Actuator material: Plastic
Rating: NEMA 3, 3R, 4, 4X, 12, 13
Illumination: Non-illuminated
Actuator: Extended
Product Length/Depth: 3 IN
Product Height: 2 IN
Product Width: 2 IN
Product Weight: .25 LB
Compliances: CE Marked
Certifications: UL Listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 10250T31B . Santa Clara Systems carries 15,839 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
