10250T31R

Cutler-Hammer - Push Button Red | Eaton

Current response time:

By 5AM PT on Monday

Emergency?

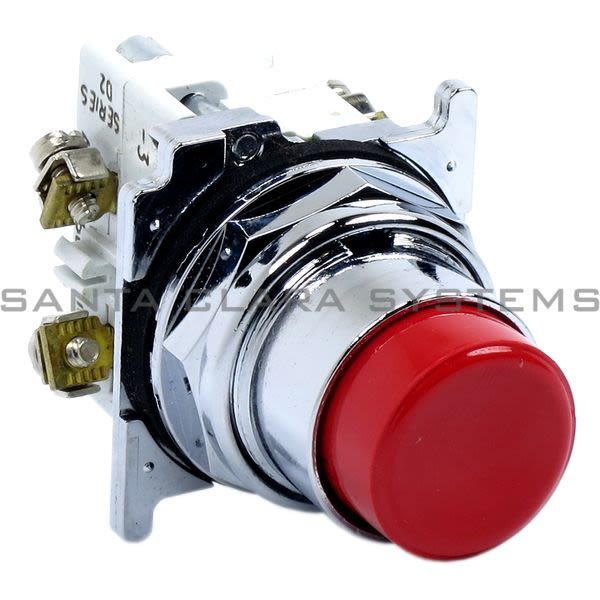

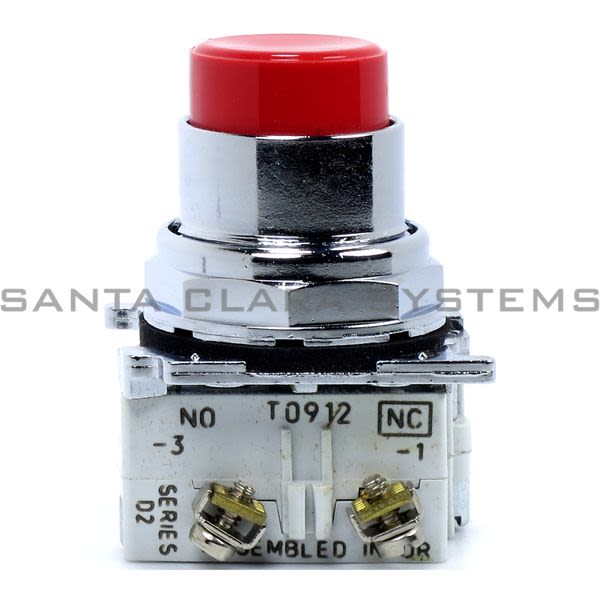

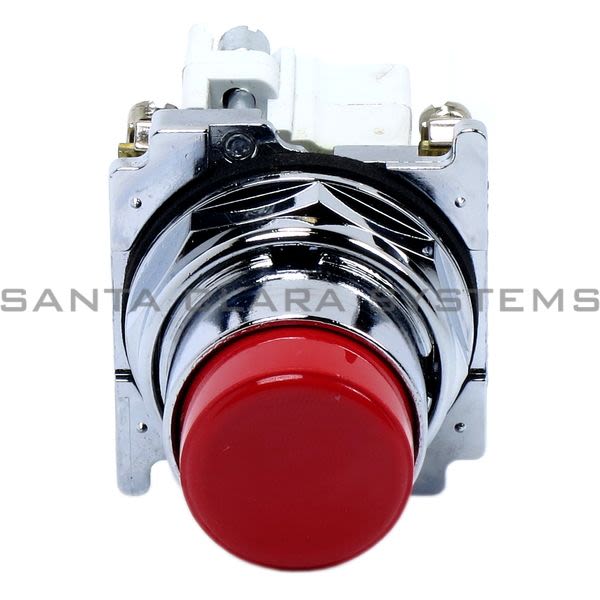

Description: Push Button Red | Eaton
UPC: 782113357874
Contacts: 1NO; 1NC
Terminal Type: Exposed Screw
Contact configuration: 1NO-1NC
Operating mode: Momentary
Nominal Mounting Size: 30 MM
Lens/Button Shape: Round Extended
Lens/Button Color: Red
Bezel: Metal Round
Max Voltage: 660 VAC;660 VDC
Current (A): 10 Amps
IEC Rating: IP65
NEMA Rating: 1;2;3;3R;4;4X;12;13
Approvals: UL;CSA;CE
H x W x D: 3.4 in x 2.1 in x 2.4 in

Net Weight: 4.8 OZ
Gross Weight: 4.8 OZ
Series: 10250T
Type: 30.5 mm, Heavy-Duty
Actuator color: Red
Actuator material: Plastic
Rating: NEMA 3, 3R, 4, 4X, 12, 13
Illumination: Non-illuminated
Actuator: Extended
Product Length/Depth: 2.4 IN
Product Height: 2 IN
Product Width: 2.1 IN
Product Weight: .2 LB
Compliances: CE Marked
Certifications: CSA Certified

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 10250T31R . Santa Clara Systems carries 16,288 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
