13105A6513

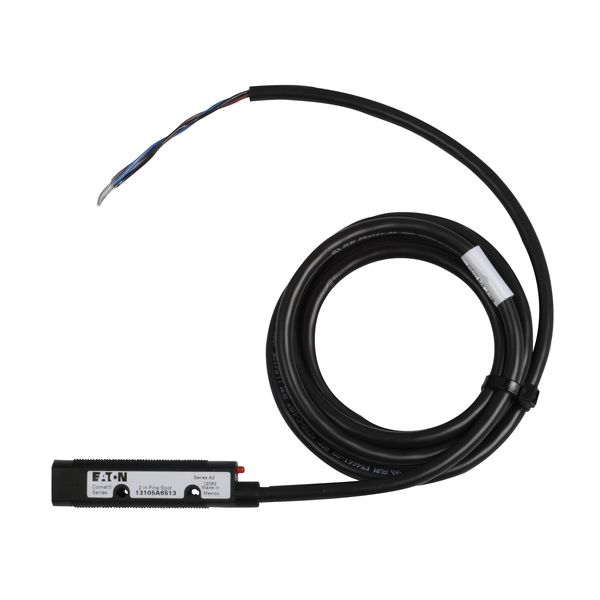

Cutler-Hammer - Comnet Photoelectric Switch

Product Summary:

Input Voltage: 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
Contact Configuration: AC: L1 switched, DC: NPN open collector
Operating Temperature: -40 to 158F (-40 to 70C)
Cord Length: 79.2 FT
Maximum Ac Current: 300 mA

Current response time:

9 Minutes 22 Seconds

Description: Comnet Photoelectric Switch
Input Voltage: 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
Contact Configuration: AC: L1 switched, DC: NPN open collector
Operating Temperature: -40 to 158F (-40 to 70C)
Cord Length: 79.2 FT
Maximum Ac Current: 300 mA
Maximum Dc Current: 300 mA
Cable Type: PVC
Enclosure Material: Polyurethane Foam (RIM)
Series: Comet
Type: Fine Spot Perfect Prox Photoelectric Sensor
Sensor Type: Back Ground Suppression

Contact Rating: 300 mA AC/DC at 20-264 Vac/15-30 Vdc
Environmental Rating: NEMA 1, 3, 4, 4X, 6, 12, 13, IP69k
Protection: Latching S/C
Led Indicators: Output ON
Product Length/Depth: 2.6 IN
Product Height: .71 IN
Product Width: .47 IN
Product Weight: .37 LB
Certifications: UL Recognized
AC current - max: 300 mA
DC current - max: 300 mA
LED indicator: Output ON

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 13105A6513 . Santa Clara Systems carries 15,839 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
