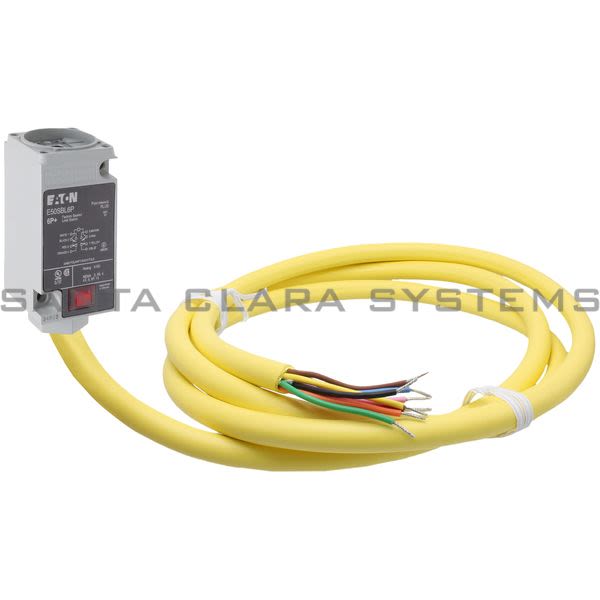

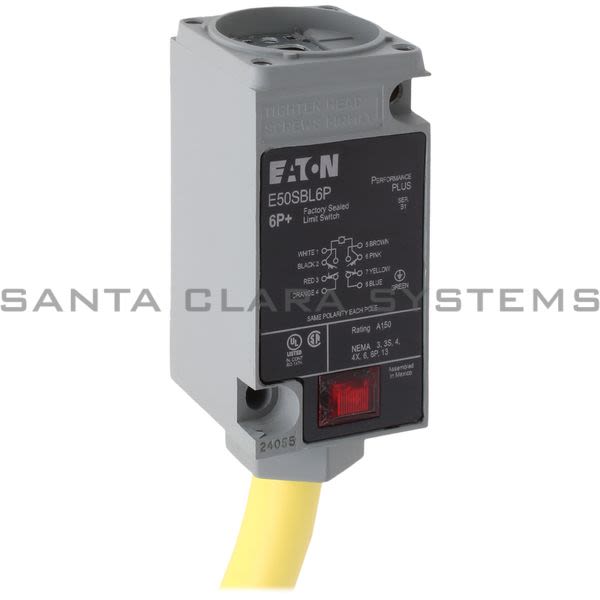

E50SBL6P
In stock and ready to ship
Product Summary:
- Contact Configuration: 2NO-2NC
- Operating Temperature: -29° to 221°F (-34° to 105°C)
- Enclosure Material: Die Cast Zinc
- Contact Rating: 10A at 240Vac, 1A at 125Vdc
- Cord Length: 96 FT
Get a Quote
Current response time:
8 Minutes 14 Seconds
- Description: Limit Switch Body
- Contact Configuration: 2NO-2NC
- Operating Temperature: -29° to 221°F (-34° to 105°C)
- Enclosure Material: Die Cast Zinc
- Contact Rating: 10A at 240Vac, 1A at 125Vdc
- Cord Length: 96 FT
- Maximum Ac Current: 10A
- Maximum Dc Current: 1A
- Connection: 8 Ft. ( 2.5m ) Cable
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K

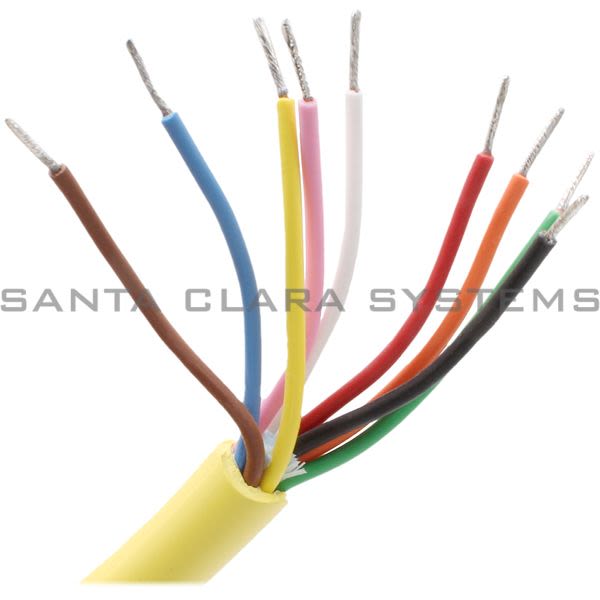

- Cable Type: SOOW-A
- Led Indicators: LED (24–120 Vac/dc)
- Product Length/Depth: 1.54 IN
- Product Height: 3.58 IN
- Product Width: 1.58 IN
- Product Weight: 2.1188 LB
- Compliances: CE Marked
- Certifications: CSA Certified
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E50SBL6P . Santa Clara Systems carries 16,351 items from Cutler-Hammer.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
