Out of Stock

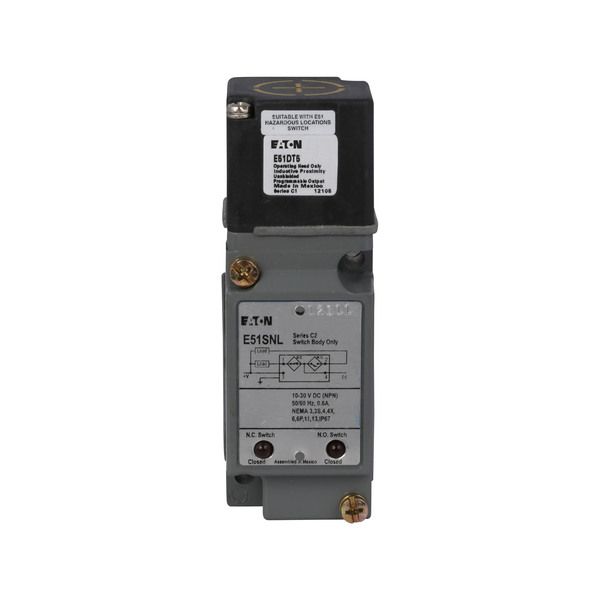

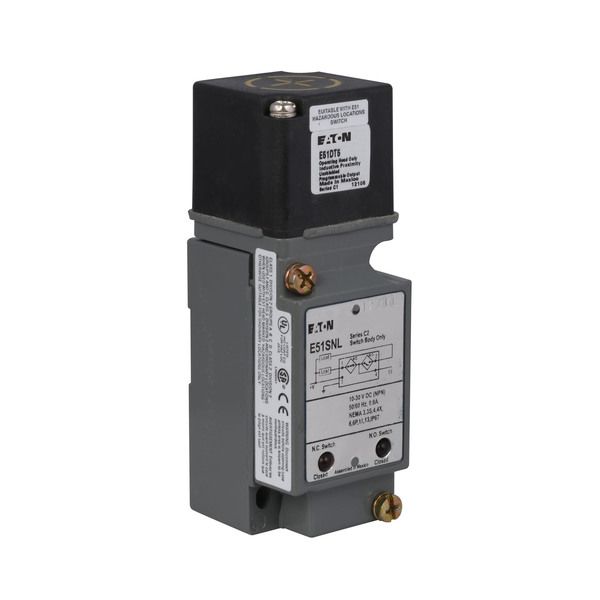

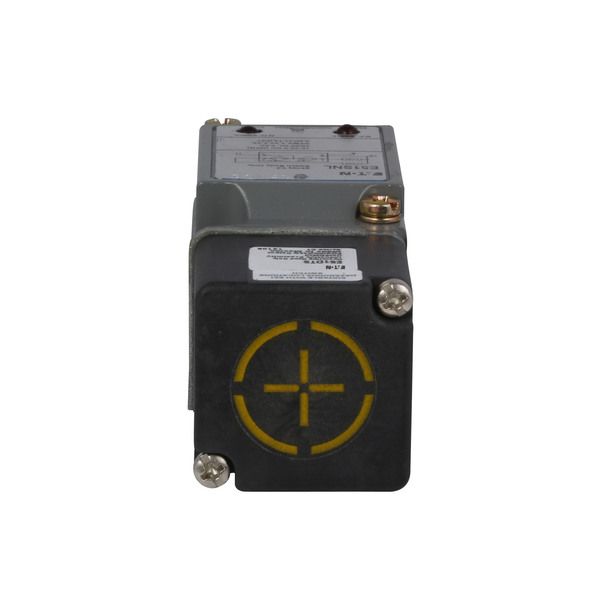

Cutler-Hammer E51NLT5 Inductive Proximity Sensor Product Image

E51NLT5

Cutler-Hammer - Inductive Proximity Sensor

Product Summary:

Input Voltage: 10-30 Vdc
Contact Configuration: Complementary NPN open collector
Operating Mode: Unshielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Enclosure Material: Die cast zinc

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Inductive Proximity Sensor
Input Voltage: 10-30 Vdc
Contact Configuration: Complementary NPN open collector
Operating Mode: Unshielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Enclosure Material: Die cast zinc
Series: E51
Contact Rating: 600 mA
Maximum Dc Current: 600 mA

Connection: Screw Terminals
Environmental Rating: NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13,IP67
Protection: Auto reset
Led Indicators: Output ON (1 LED per output)
Product Length/Depth: 4.53 IN
Product Height: 1.78 IN
Product Width: 1.54 IN
Product Weight: 1.05 LB
Certifications: UL Listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E51NLT5 . Santa Clara Systems carries 16,351 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
