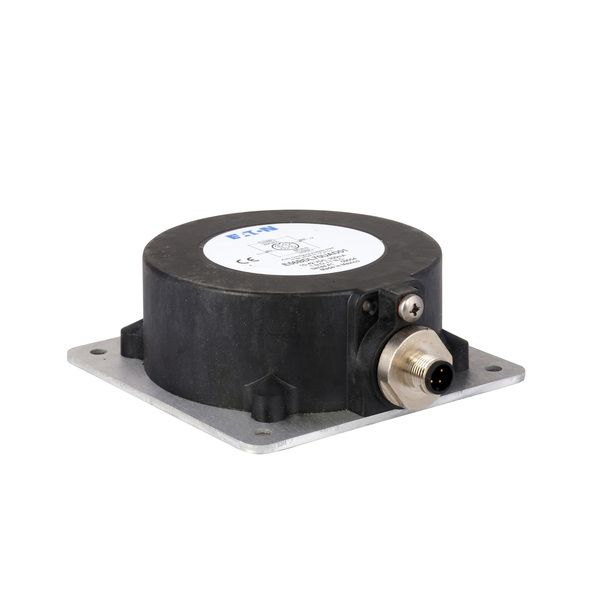

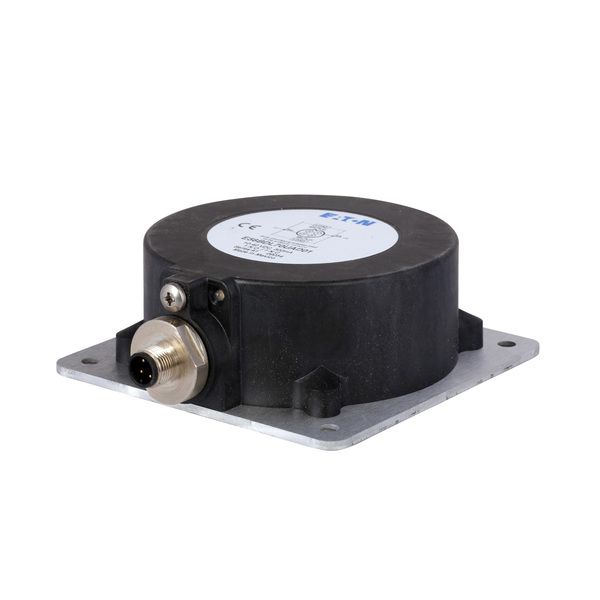

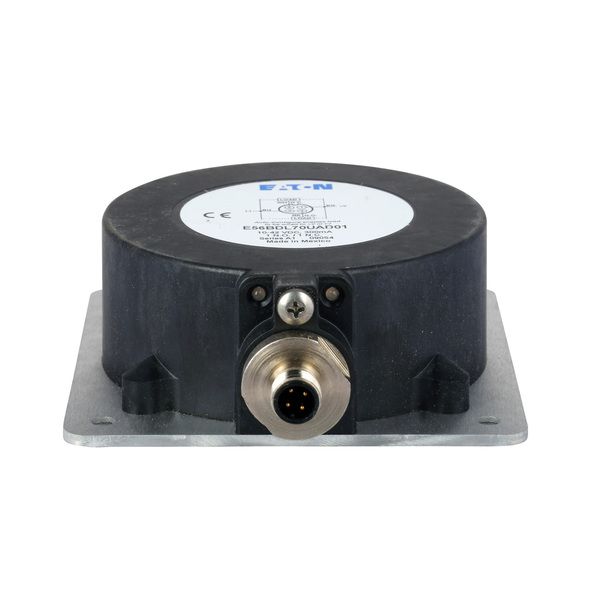

Cutler-Hammer E56BDL70UAD01 Inductive Proximity Sensor Product Image

E56BDL70UAD01

Cutler-Hammer - Inductive Proximity Sensor

Product Summary:

Input Voltage: 10-42 Vdc
Contact Configuration: Complementary NPN/PNP Auto-configure
Operating Mode: Un-shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity

Current response time:

17 Minutes 35 Seconds

Description: Inductive Proximity Sensor
Input Voltage: 10-42 Vdc
Contact Configuration: Complementary NPN/PNP Auto-configure
Operating Mode: Un-shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity
Maximum Dc Current: 300 mA
Connection: 4 Pin M12 Connector
Enclosure Material: PPS housing
Accuracy: < 2%

Sensor Type: Inductive Proximity
Contact Rating: 300 mA at 42 Vdc
Environmental Rating: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Protection: Short circuit protection with auto reset
Led Indicators: Power on and output Status
Product Length/Depth: 4.35 IN
Product Height: 5.29 IN
Product Width: 1.63 IN
Product Weight: 3.275 LB
