E57LAL18T110ED

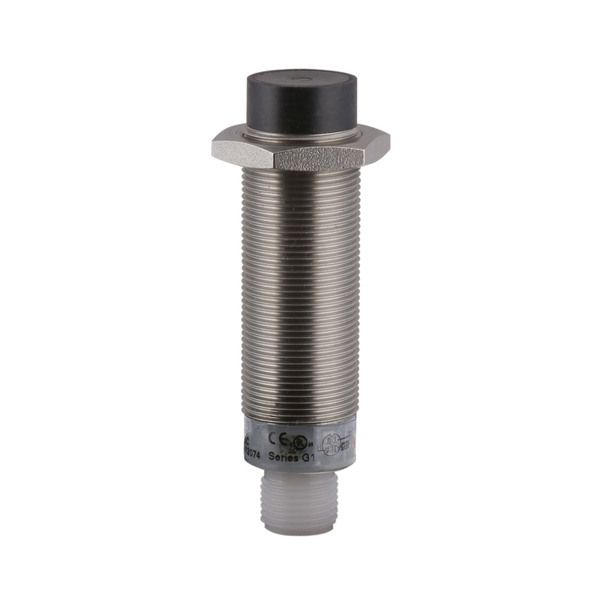

Cutler-Hammer - Proximity Sensor

Product Summary:

Input Voltage: 6–48 Vdc
Contact Configuration: Normally Open NPN Open Collector
Operating Mode: Un-shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity

Current response time:

8 Minutes 53 Seconds

Description: Proximity Sensor
Input Voltage: 6–48 Vdc
Contact Configuration: Normally Open NPN Open Collector
Operating Mode: Un-shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity
Maximum Dc Current: 500 mA
Connection: 4 Pin M12 Connector
Enclosure Material: Stainless Steel
Series: E57
Accuracy: < 3%
Sensor Type: Inductive Proximity

Contact Rating: 500 mA at 6-30Vdc
Environmental Rating: IP67, IP69K, UL Type 1, NEMA 6P, 4X
Protection: Short circuit protected
Diameter: .71 IN
Led Indicators: Red output status
Product Length/Depth: .71 IN
Product Height: 2.73 IN
Product Width: .71 IN
Product Weight: .1438 LB
Compliances: CE Marked
Certifications: CSA Certified
