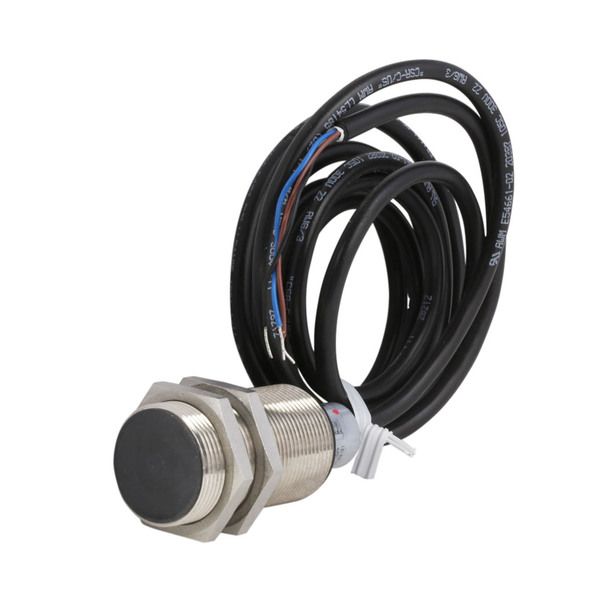

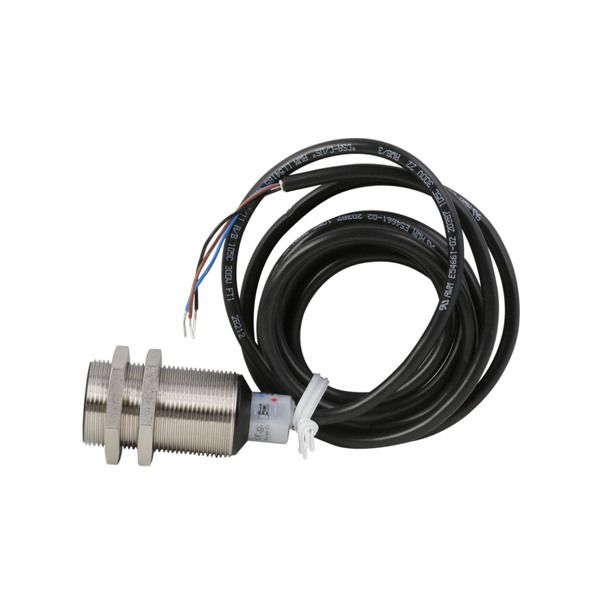

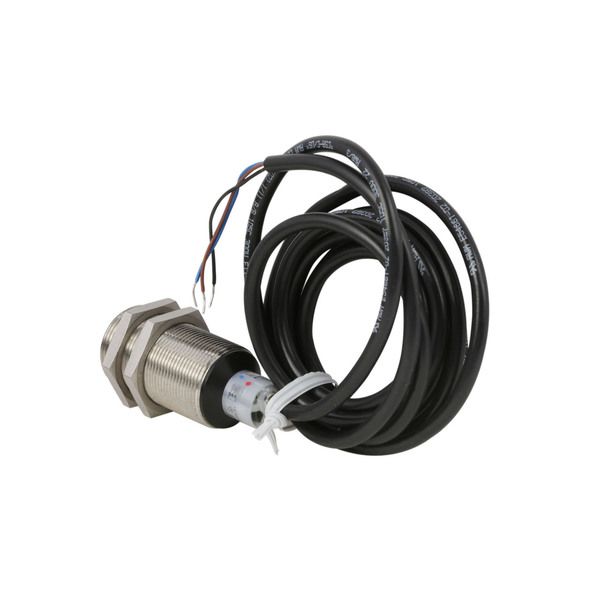

E57LAL30T110

Cutler-Hammer - Proximity Sensor

Product Summary:

Input Voltage: 6-48 Vdc
Contact Configuration: NO NPN open collector
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Cord Length: 79.2 FT

Current response time:

11 Minutes 40 Seconds

Description: Proximity Sensor
Input Voltage: 6-48 Vdc
Contact Configuration: NO NPN open collector
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Cord Length: 79.2 FT
Maximum Dc Current: 500 mA
Cable Type: PVC
Enclosure Material: 303 stainless steel
Series: E57
Type: Premium+ Inductive Proximity Sensor
Accuracy: <3% sensing range

Contact Rating: 500 mA at 6-30 Vdc
Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13, IP67, IP69K
Protection: Auto reset
Diameter: 1.18110237 MM
Led Indicators: 360° viewable LED
Product Length/Depth: 3.39 IN
Product Height: 1.18 IN
Product Width: 1.18 IN
Product Weight: .45 LB
Compliances: CE Marked
Certifications: UL Listed
