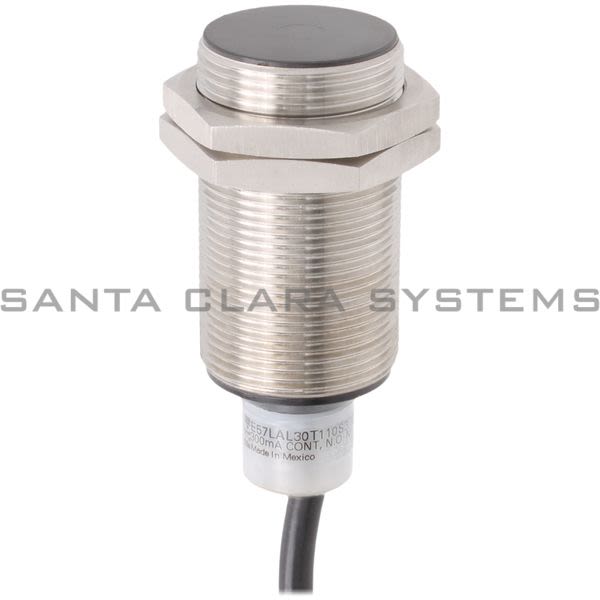

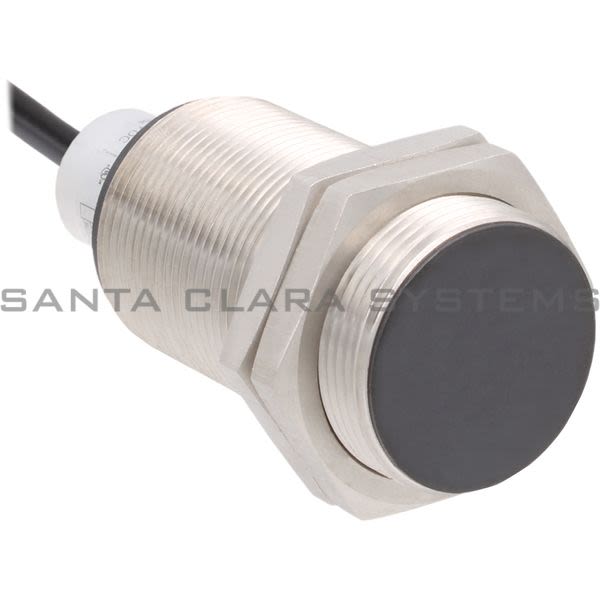

E57LAL30T110S3

Cutler-Hammer - Proximity Sensor

Product Summary:

Input Voltage: 6–48 Vdc
Contact Configuration: Normally Open NPN Open Collector
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Proximity Sensor
Input Voltage: 6–48 Vdc
Contact Configuration: Normally Open NPN Open Collector
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity
Cord Length: 120 FT
Maximum Dc Current: 500 mA

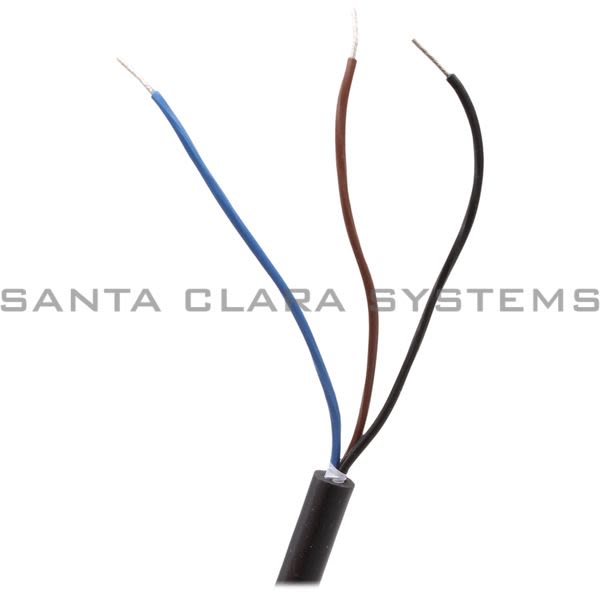

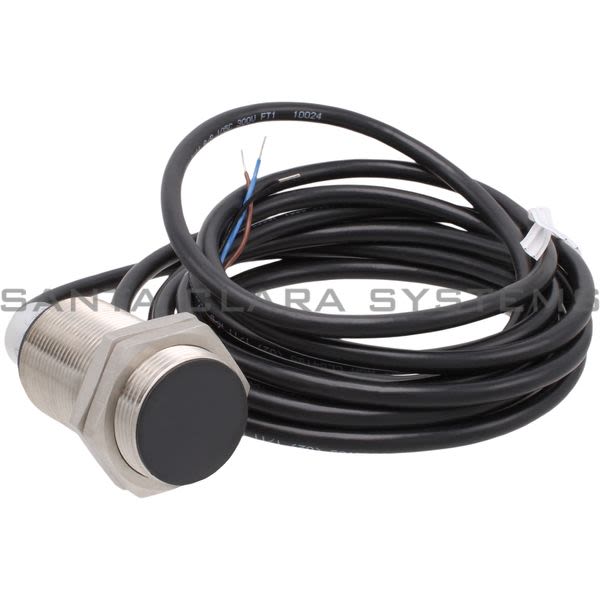

Connection: 10 Ft. ( 3m ) Cable
Cable Type: PVC
Enclosure Material: Stainless Steel
Series: E57
Accuracy: < 1%

Sensor Type: Inductive Proximity
Contact Rating: 500 mA at 6-30Vdc
Environmental Rating: IP67, IP69K, UL Type 1, NEMA 6P, 4X
Protection: Short circuit protected
Diameter: 1.18 IN
Led Indicators: Red output status
Product Length/Depth: 1.18 IN
Product Height: 2.73 IN
Product Width: 1.18 IN
Product Weight: .6469 LB
Compliances: CE Marked
Certifications: UL Listed
