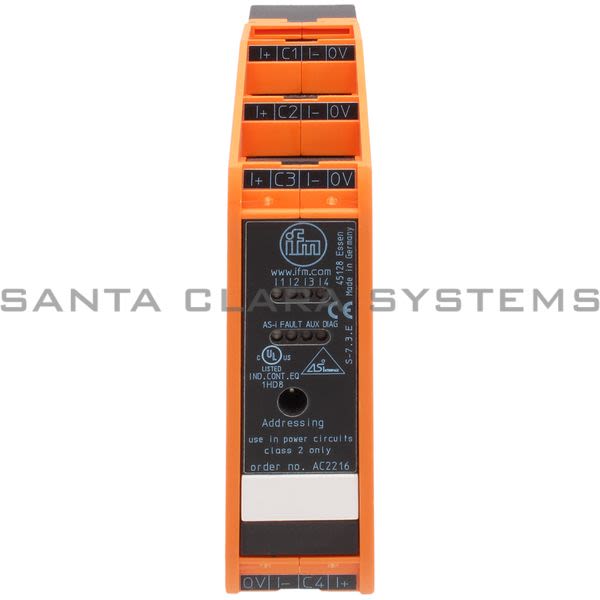

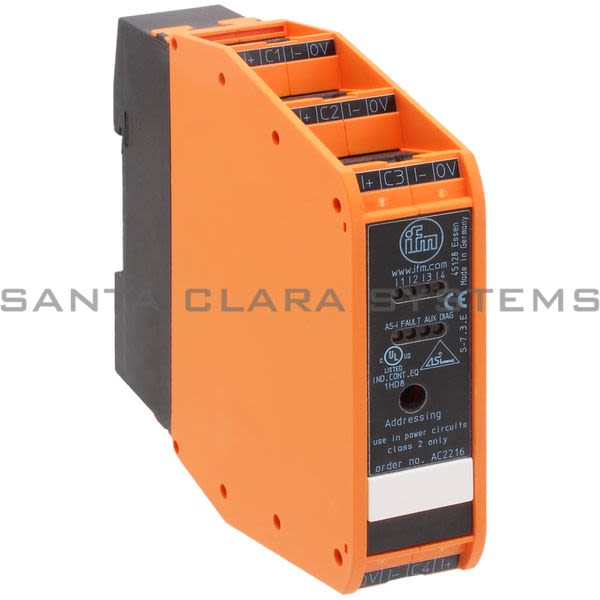

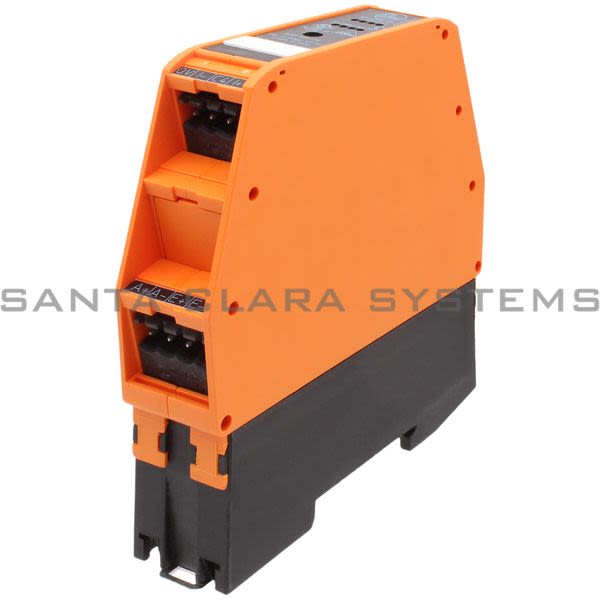

AC2216

Efector - Active AS-i Module | SmartLine25 4AI (C) C IP20

Current response time:

16 Minutes 11 Seconds

Description: Active AS-i Module | SmartLine25 4AI (C) C IP20
Material: Pa 6.6
Operating Voltage [V]: 26.5...31.6 Dc; (Culus - Class 2 Source Required)
Current Consumption [Ma]: 10...53; (External Supply)
Max. Current Consumption From As-I [Ma]: 53; (With External Supply: 28 Ma)
Reverse Polarity Protection: Yes
Additional Voltage Supply [V]: 24 Dc
Number Of Inputs And Outputs: Number Of Analog Inputs: 4
Number Of Analog Inputs: 4; (Anschluss Von 2-, 3-, 4-Draht-Sensoren)
Analog Input (Current) [Ma]: 4...20
Analog Inputs Protected Against Short Circuits: No
Resolution Of Analog Input: 16 (1 Bit = 1 a)
Sensor Supply Of The Inputs: As-I / External (To Pelv)
Measuring Error [% Of The Final Value]: 0,5

Ambient Temperature [C]: 0...70
Storage Temperature [C]: -20...85
Protection: Ip 20
Emc: En 50295
As-I Profile: S-7.3.E
As-I I/O Configuration [Hex]: 7
As-I Id Code [Hex]: 3.E
As-I Certificate Pending: Yes
Type Of Mounting: Mounting On Din Rail
Display: Power Led, Green Voltage As-I / 24 V Aux Errors Led, Red Function Led, Yellow Channels 1...4
Accessories (Optional): Combicon Connector
Connection: Combicon:
Alternate Manufacturer Name: IFM
