AC2250

Product Summary:

  • Material: Pa
  • Operating Voltage [V]: 26.5...31.6 Dc
  • Max. Current Consumption From As-I [Ma]: 250
  • Number Of Inputs And Outputs: Number Of Digital Inputs: 4
  • Number Of Digital Inputs: 4
Get a Quote

Current response time:

19 Minutes 32 Seconds

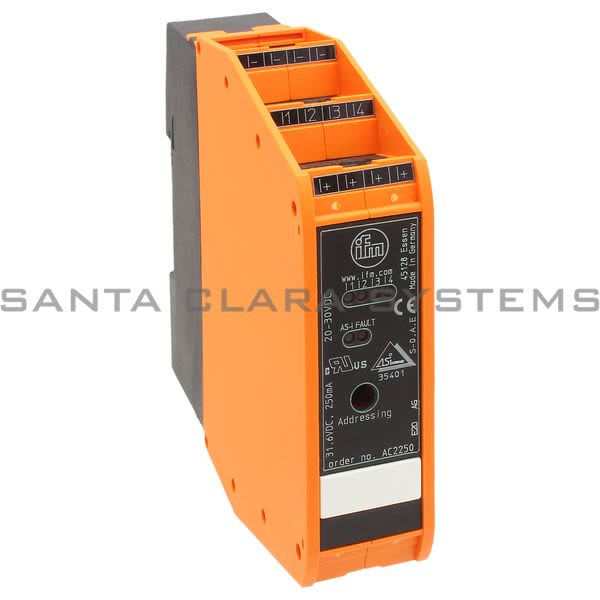

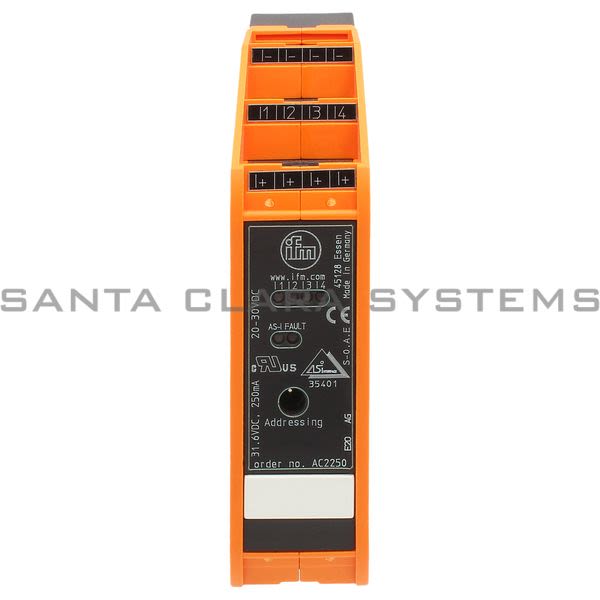

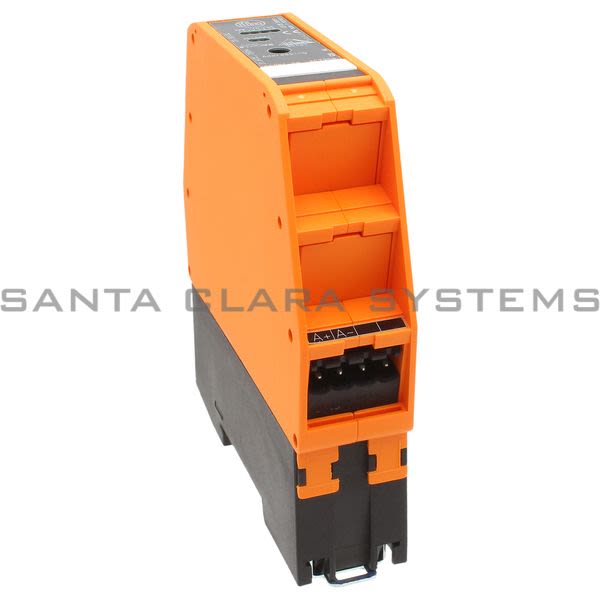

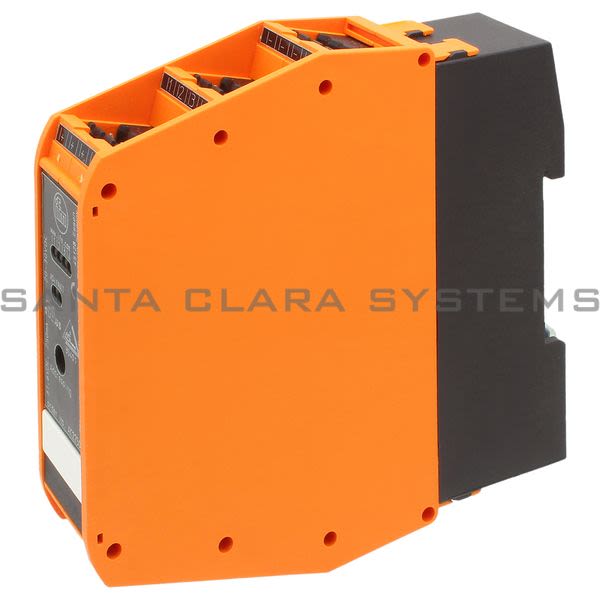

  • Description: AS-Interface Bus System | Module
  • Material: Pa
  • Operating Voltage [V]: 26.5...31.6 Dc
  • Max. Current Consumption From As-I [Ma]: 250
  • Number Of Inputs And Outputs: Number Of Digital Inputs: 4
  • Number Of Digital Inputs: 4
  • Input Circuit Of Digital Inputs: Pnp
  • Voltage Supply [V]: 16...30
  • Max. Total Current Rating Of Inputs [Ma]: 200
  • Input Current High [Ma]: 6...10
  • Input Current Low [Ma]: 0...2
  • Min. Switching Level High Signal [V]: 11
  • Digital Inputs Protected Against Short Circuits: Yes
  • Sensor Supply Of The Inputs: As-I
  • Ambient Temperature [C]: -25...70
  • Protection: Ip 20
  • Emc: En 50295
  • As-I Version: 2.1
  • As-I Addressing: Addressing Socket
  • Extended Addressing Mode Possible: Yes
  • As-I Profile: S-0.A.E
  • As-I I/O Configuration [Hex]: 0
  • As-I Id Code [Hex]: A.E
  • As-I Certificate: 35401
  • Data Bits: Data Bit D0 D1 D2 D3 Input I-1 I-2 I-3 I-4
  • Type Of Mounting: Mounting On Din Rail; String Mounting Possible
  • Display: Switching Status Led, Yellow Power Led, Green Errors Led, Red
  • Accessories (Optional): Combicon Connector
  • Connection: Combicon:
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AC2250 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
