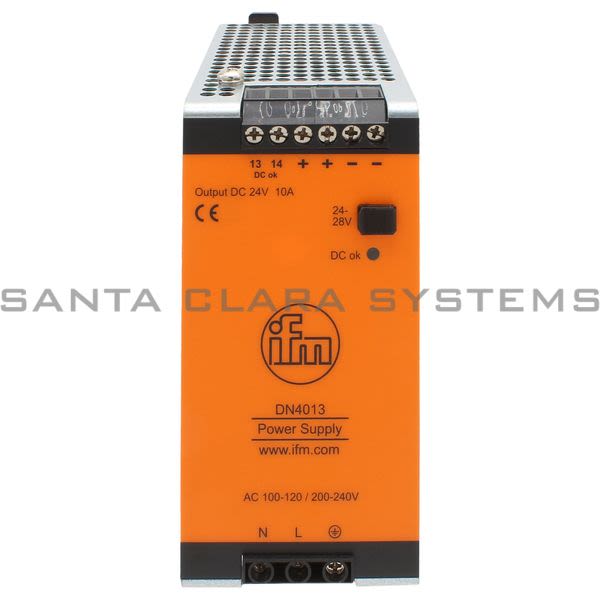

• Efector DN4013 Power Supply | PSU-1AC/24VDC-10A Product Image

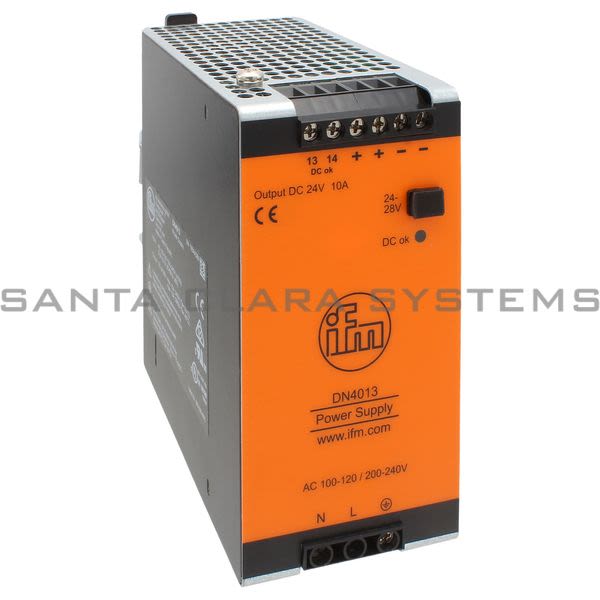

  • Efector DN4013 Power Supply | PSU-1AC/24VDC-10A Product Image

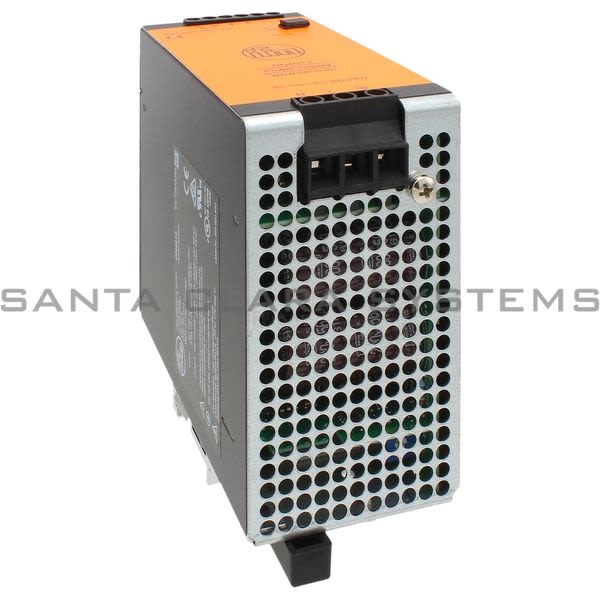

  • Efector DN4013 Power Supply | PSU-1AC/24VDC-10A Product Image

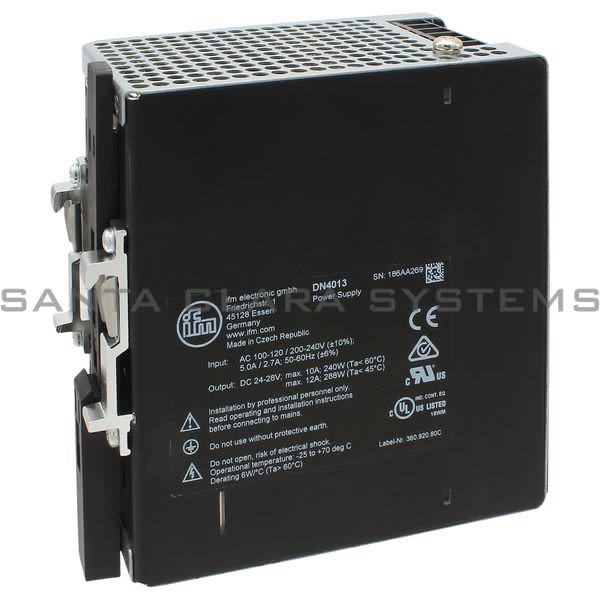

  • Efector DN4013 Power Supply | PSU-1AC/24VDC-10A Product Image
  • Efector DN4013 Barcode

DN4013

Product Summary:

  • Material: Steel Sheet
  • Frequency Ac [Hz]: 47...64
  • Operating Voltage Tolerance [%]: 10
  • Operating Voltage Tolerance 2 [%]: 10
  • Operating Voltage [V]: Automatic Range Selection
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Power Supply | PSU-1AC/24VDC-10A
  • Material: Steel Sheet
  • Frequency Ac [Hz]: 47...64
  • Operating Voltage Tolerance [%]: 10
  • Operating Voltage Tolerance 2 [%]: 10
  • Operating Voltage [V]: Automatic Range Selection
  • Nominal Voltage Ac [V]: < 230
  • Input Voltage Ac [V]: 100...120 / 200...240
  • Output Voltage Dc [V]: 24...28
  • Protection Class: I; (Iec 61140)
  • Overvoltage Protection: Yes; (< 39 Dc)
  • Output Voltage [V]: Adjustable; Output Voltage To Selv, Pelv
  • Max. Output Current At Min. Output Voltage [A]: 10
  • Max. Output Current At Max. Output Voltage [A]: 8.6
  • Max. Output Current Peak At Min. Output Voltage [A]: 12
  • Max. Output Current Peak At Max. Output Voltage [A]: 10.3
  • Output Power (Permanent) [W]: 240
  • Output Power (Peak) [W]: 288
  • Power Factor (Nominal Voltage 120 V Ac / 60 Hz): 0.59
  • Power Factor (Nominal Voltage 230 V Ac / 50 Hz): 0.51
  • Power Reserve [%]: 20
  • Number Of Output Circuits: 1
  • Max. Residual Ripple [Mv]: 50
  • Switch-On Peak Current (Nominal Voltage 120 V Ac / 60 Hz) [A]: 3
  • Switch-On Peak Current (Nominal Voltage 230 V Ac / 50 Hz) [A]: 3
  • Inrush Current Limitation: Yes
  • Efficiency (Nominal Voltage 120 V Ac / 60 Hz) [%]: 91
  • Efficiency (Nominal Voltage 230 V Ac / 50 Hz) [%]: 91.6
  • External Input Protection: B-10 A / ? C-6 A
  • Derating [W/K]: 6 (60...70 C)
  • Mains Buffering Time (Nominal Voltage 120 V Ac / 60 Hz) [Ms]: 46
  • Mains Buffering Time (Nominal Voltage 230 V Ac / 50 Hz) [Ms]: 47
  • Input Current (Nominal Voltage 120 V Ac / 60 Hz) [A]: 3.73
  • Input Current (Nominal Voltage 230 V Ac / 50 Hz) [A]: 2.23
  • Power Loss (Nominal Voltage 120 V Ac / 60 Hz) [W]: 23.7
  • Power Loss (Nominal Voltage 230 V Ac / 50 Hz) [W]: 22
  • Back Feeding Protection [V]: 35
  • Short-Circuit Proof: Yes
  • Overload Protection: Yes
  • Overload Performance: Constant Output Current
  • Type Dc-Ok Signal: Relay Output
  • Reliability Of The Dc Ok Signal: 60 V Dc (0.3 A) / 30 V Dc (1 A) / 30 V Ac (0.5 A)
  • Ambient Temperature [C]: -25...70
  • Storage Temperature [C]: -40...85
  • Max. Relative Air Humidity [%]: 95; (Iec 60068-2-30)
  • Protection: Ip 20; (En 60529)
  • Degree Of Soiling: 2; (Iec 62103: Conductive Soiling Not Permitted)
  • Emc: En 61000-6-1 En 61000-6-2 En 61000-6-4
  • Vibration Resistance: Iec 60068-2-6 1,6 Mm 2...17,8 Hz / 2 G 17,8...500 Hz
  • Shock Resistance: Iec 60068-2-27 30 G 6 Ms / 20 G 11 Ms
  • Type Of Mounting: Rail; (Th35 (En 60715))
  • Dimensions [Mm]: 124 X 62 X 122.5
  • Display: Dcok 1 Led
  • Connection: Screw Terminals:
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DN4013 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
