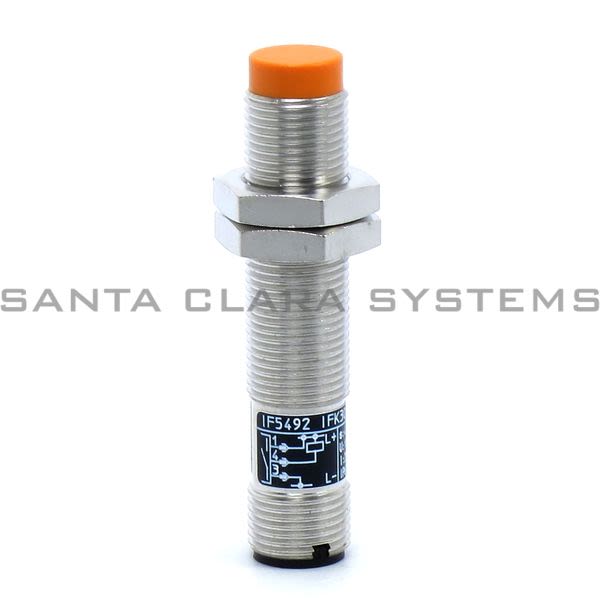

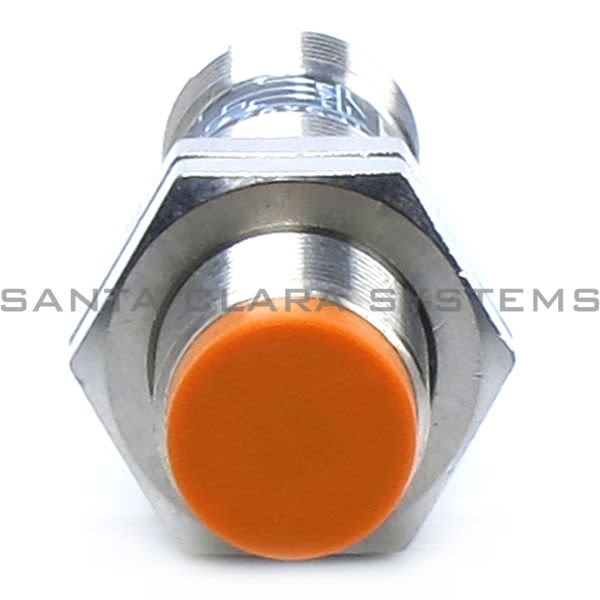

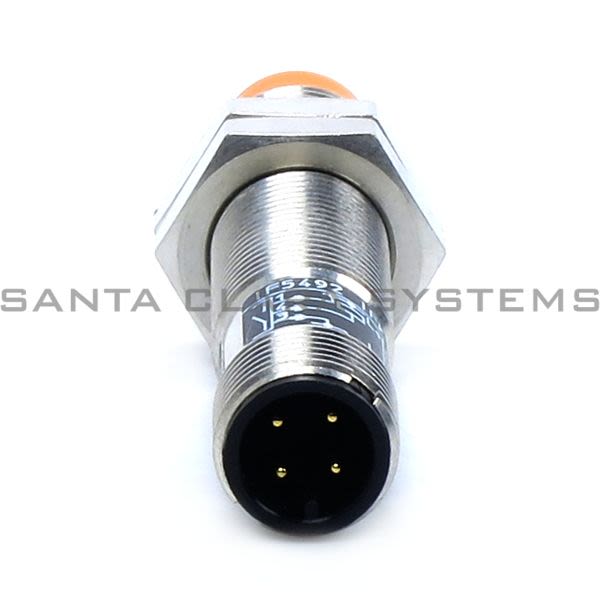

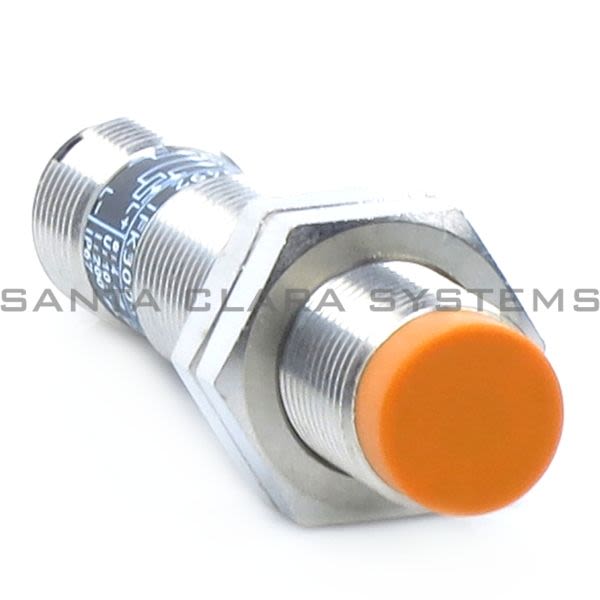

• Efector IF5492 Inductive Sensor | IFK3004-ANOG/US-100/MDG/OLED Product Image
  • Efector IF5492 Inductive Sensor | IFK3004-ANOG/US-100/MDG/OLED Product Image
  • Efector IF5492 Inductive Sensor | IFK3004-ANOG/US-100/MDG/OLED Product Image
  • Efector IF5492 Inductive Sensor | IFK3004-ANOG/US-100/MDG/OLED Product Image
  • Efector IF5492 Barcode

IF5492

Product Summary:

  • Electrical Design: DC NPN
  • Output Function: Normally Open
  • Operating Voltage: 10-30VDC
  • Sensing Range: 4mm
  • Mounting: non-flush mountable
Get a Quote

Current response time:

19 Minutes 18 Seconds
  • Description: Inductive Sensor | IFK3004-ANOG/US-100/MDG/OLED
  • Electrical Design: DC NPN
  • Output Function: Normally Open
  • Operating Voltage: 10-30VDC
  • Sensing Range: 4mm
  • Mounting: non-flush mountable
  • Material: brass white bronze coated; sensing face: PBT orange; lock nuts: brass white bronze coated
  • Protection: IP 67
  • Alternate Manufacturer Name: IFM
  • Housing: Threaded type
  • Dimensions [mm]: M12 x 1 / L = 60
  • System: gold-plated contacts
  • Current consumption [mA]: < 10
  • Protection class: III
  • Reverse polarity protection: no
  • Max. voltage drop switching output DC [V]: 1
  • Permanent current rating of switching output DC [mA]: 200
  • Switching frequency DC [Hz]: 300
  • Short-circuit protection: yes
  • Overload protection: yes
  • Real sensing range Sr [mm]: 4 10 %
  • Operating distance [mm]: 0...3.24
  • Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
  • Hysteresis [% of Sr]: 3...15
  • Switch-point drift [% of Sr]: -10...10
  • Ambient temperature [C]: -25...80
  • EMC: EN 60947-5-2 EN 55011 class B
  • MTTF [years]: 1600
  • Weight [g]: 27.3
  • Thread designation: M12 x 1
  • Accessories (supplied): lock nuts: 2
  • Pack quantity: 1 pcs.
  • Connection: Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IF5492 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
