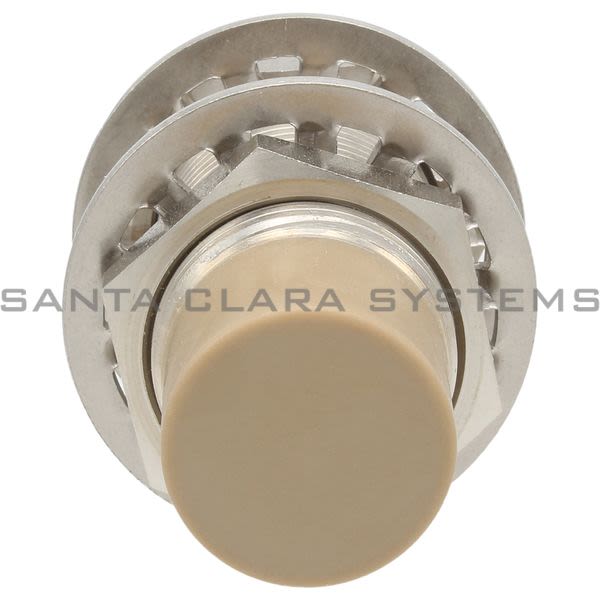

• Efector IIT002 Inductive Sensor | IIK2022-ARKA/M/V4A/LS-104-AK Product Image

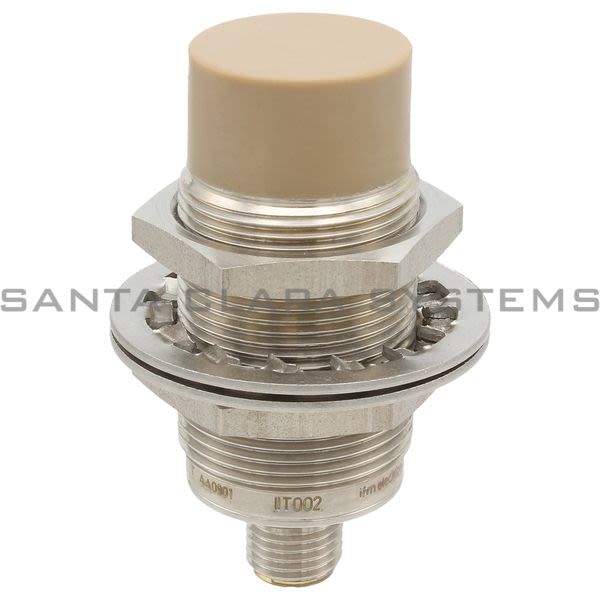

  • Efector IIT002 Inductive Sensor | IIK2022-ARKA/M/V4A/LS-104-AK Product Image

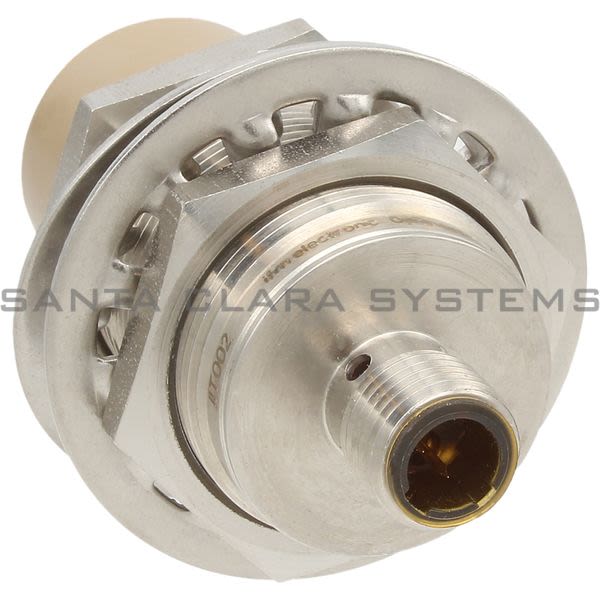

  • Efector IIT002 Inductive Sensor | IIK2022-ARKA/M/V4A/LS-104-AK Product Image

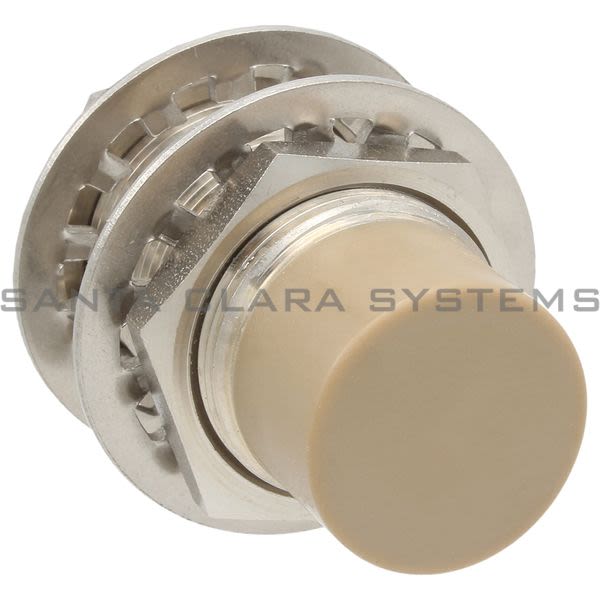

  • Efector IIT002 Inductive Sensor | IIK2022-ARKA/M/V4A/LS-104-AK Product Image
  • Efector IIT002 Barcode

IIT002

Product Summary:

  • Output Function: Normally Open
  • Mounting: Non-Flush Mountable
  • Material: Stainless Steel (1.4404 / 316L); Peek
  • Operating Voltage [V]: 20...140 Ac/Dc
  • Protection Class: Ii
Get a Quote

Current response time:

9 Minutes 23 Seconds
  • Description: Inductive Sensor | IIK2022-ARKA/M/V4A/LS-104-AK
  • Output Function: Normally Open
  • Mounting: Non-Flush Mountable
  • Material: Stainless Steel (1.4404 / 316L); Peek
  • Operating Voltage [V]: 20...140 Ac/Dc
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Power-On Delay Time [Ms]: 1000
  • Max. Voltage Drop Switching Output Dc [V]: 5.5
  • Max. Voltage Drop Switching Output Ac [V]: 5.5
  • Minimum Load Current [Ma]: 5
  • Max. Leakage Current [Ma]: 1
  • Permanent Current Rating Of Switching Output Ac [Ma]: 80; (200 (...80 C))
  • Permanent Current Rating Of Switching Output Dc [Ma]: 80; (200 (...80 C))
  • Short-Time Current Rating Of Switching Output [Ma]: 1200; (20Ms / 0,5Hz / 80 Ma (> 80C))
  • Switching Frequency Ac [Hz]: 25
  • Switching Frequency Dc [Hz]: 100
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Sensing Range [Mm]: 22
  • Real Sensing Range Sr [Mm]: 22 10 %
  • Operating Distance [Mm]: 0...17.82
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
  • Hysteresis [% Of Sr]: 3...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: 0...100
  • Protection: Ip 68; Ip 69K; ("Cop")
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 55011 Class B
  • Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Hazardous Voltage File Number Ul E174191
  • Housing: Threaded Type
  • Dimensions [Mm]: M30 X 1.5 / L = 70
  • Thread Designation: M30 X 1.5
  • Display: Switching Status 4 X 90 Led, Yellow
  • Accessories (Supplied): Lock Nuts: 2
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IIT002 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • IIK2022-ARKA/M/V4A/LS-104-AK
