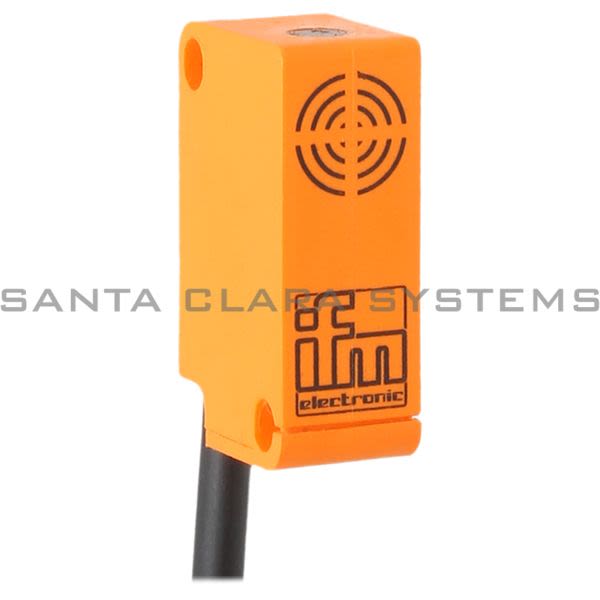

• Efector IS0003 Inductive Sensor | IS-2002-AROA RT Product Image

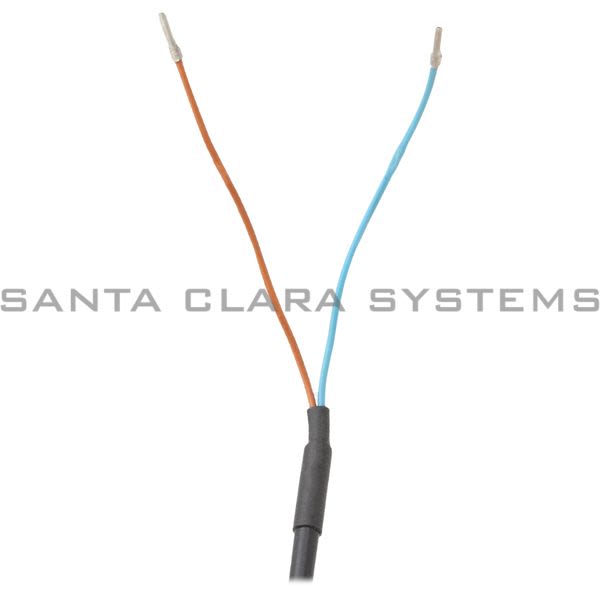

  • Efector IS0003 Inductive Sensor | IS-2002-AROA RT Product Image

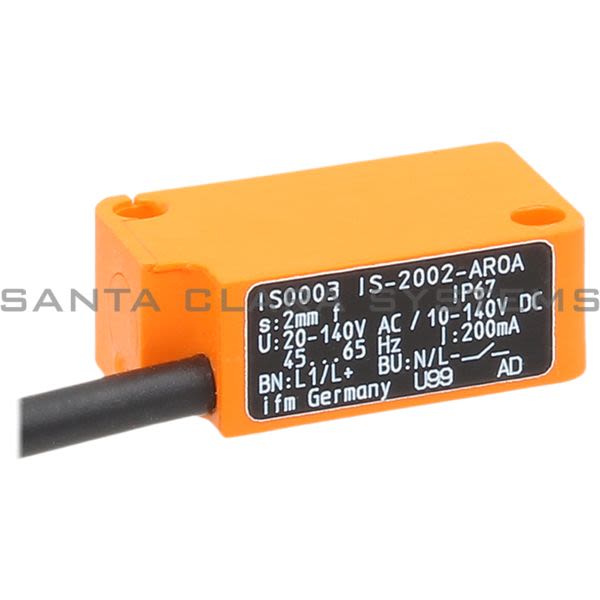

  • Efector IS0003 Inductive Sensor | IS-2002-AROA RT Product Image

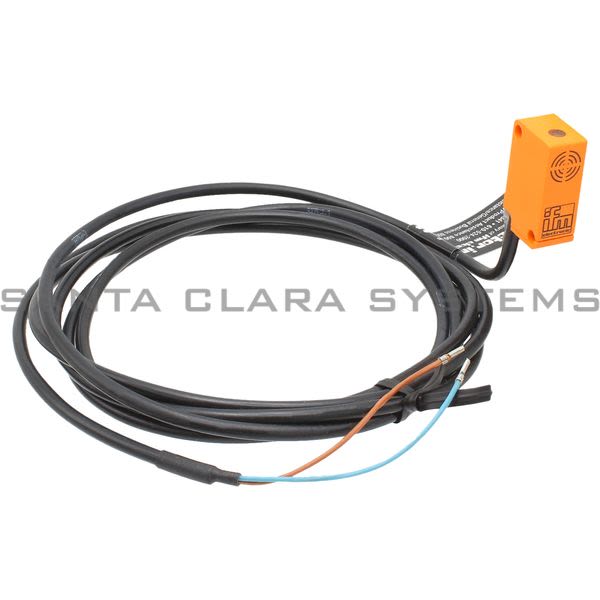

  • Efector IS0003 Inductive Sensor | IS-2002-AROA RT Product Image
  • Efector IS0003 Barcode

IS0003

Product Summary:

  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Pbt
  • Frequency Ac [Hz]: 45...65
  • Operating Voltage [V]: 20...140 Ac / 10...140 Dc
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Inductive Sensor | IS-2002-AROA RT
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Pbt
  • Frequency Ac [Hz]: 45...65
  • Operating Voltage [V]: 20...140 Ac / 10...140 Dc
  • Protection Class: Ii
  • Reverse Polarity Protection: No
  • Max. Voltage Drop Switching Output Dc [V]: 7
  • Max. Voltage Drop Switching Output Ac [V]: 7
  • Minimum Load Current [Ma]: 5
  • Max. Leakage Current [Ma]: 0.8
  • Permanent Current Rating Of Switching Output Ac [Ma]: 200
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Short-Time Current Rating Of Switching Output [Ma]: 900; (20 Ms / 0,5 Hz)
  • Switching Frequency Ac [Hz]: 25
  • Switching Frequency Dc [Hz]: 25
  • Short-Circuit Proof: No
  • Overload Protection: No
  • Sensing Range [Mm]: 2
  • Real Sensing Range Sr [Mm]: 2 10 %
  • Operating Distance [Mm]: 0...1.6
  • Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
  • Hysteresis [% Of Sr]: 1...15
  • Switch-Point Drift [% Of Sr]: -10...10
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 67
  • Emc: En 60947-5-2 En 55011 Class B
  • Ul Approval: Ta 0...40 C Enclosure Type Type 1 Voltage Supply Hazardous Voltage File Number Ul E174191
  • Housing: Rectangular
  • Dimensions [Mm]: 28 X 10 X 16
  • Tightening Torque [Nm]: < 0.5; (With Washer)
  • Display: Switching Status 1 X Led, Red
  • Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
  • Connection: Cable: 2 M, Pur; 2 X 0.14 Mm
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IS0003 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
