IS5001

Efector - Inductive Sensor | IS-3002-BPKG

Current response time:

By 5AM PT on Monday

Emergency?

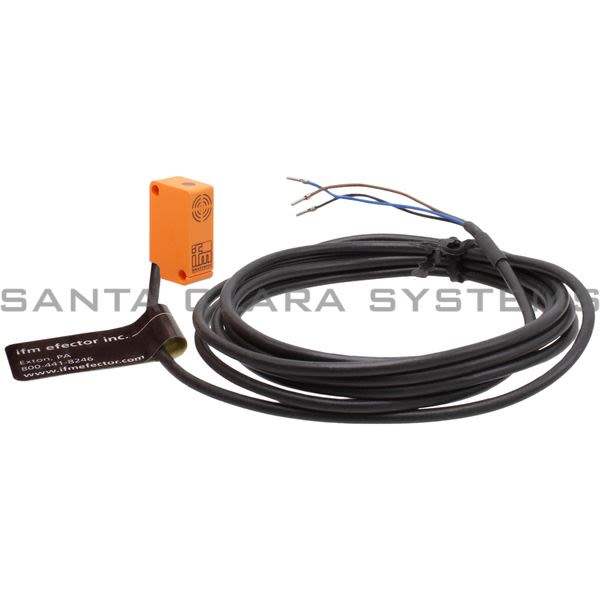

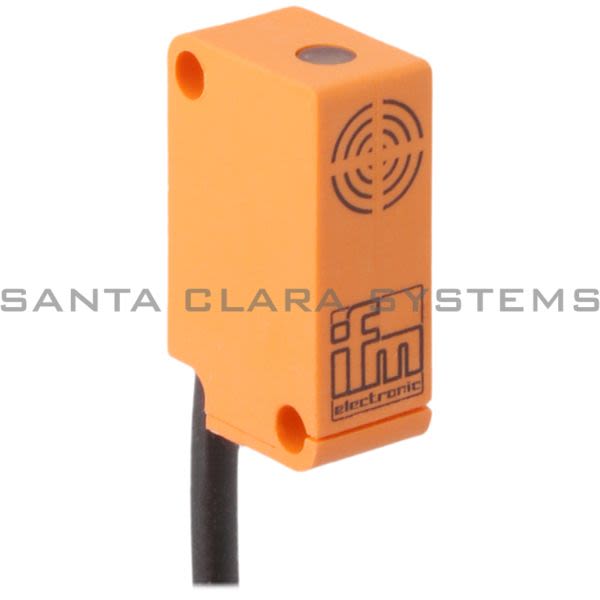

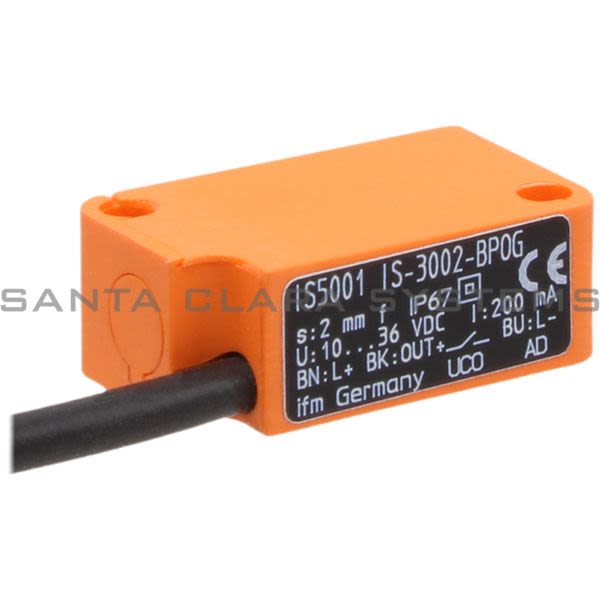

Description: Inductive Sensor | IS-3002-BPKG
Electrical Design: Pnp
Output Function: Normally Open
Mounting: Flush Mountable
Material: Housing: Pbt
Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
Current Consumption [Ma]: < 15
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2.5
Max. Leakage Current [Ma]: 0.5
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Short-Time Current Rating Of Switching Output [Ma]: 200
Switching Frequency Dc [Hz]: 800
Short-Circuit Protection: Yes
Overload Protection: Yes
Sensing Range [Mm]: 2
Real Sensing Range Sr [Mm]: 2 10 %

Operating Distance [Mm]: 0...1.6
Safe Switching-Off Distance S(Ar) [Mm]: 1.62
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 67
Emc: En 61000-4-2 Esd -- Cd / 15 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5 Kv En 61000-4-6 Hf Conducted 10 V En 55011 Class B
Vibration Resistance: En 60947-5-2
Shock Resistance: En 60947-5-2
Ul Approval: Ta -25...80 C Enclosure Type Type 1 Voltage Supply Class 2 File Number Ul E174191
Housing: Rectangular
Dimensions [Mm]: 28 X 10 X 16
Tightening Torque [Nm]: < 0.5; (With Washer)
Display: Switching Status 1 X Led, Yellow

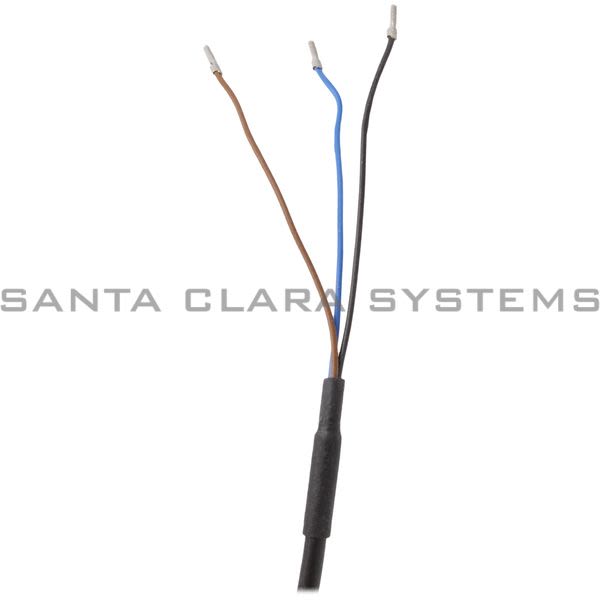

Connection: Cable: 2 M, Pvc, 3.5 Mm; 3 X 0.14 Mm
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IS5001 . Santa Clara Systems carries 2,284 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
