IS5035

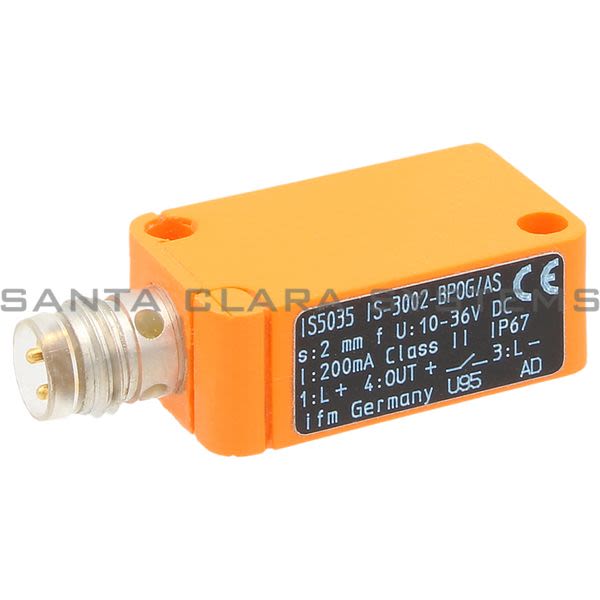

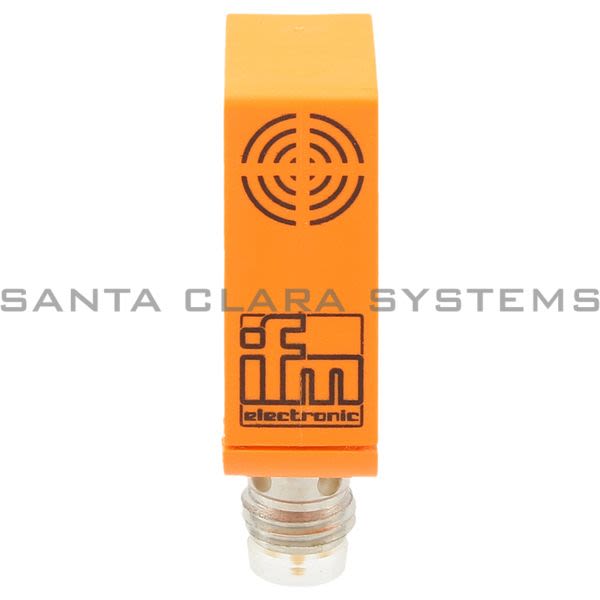

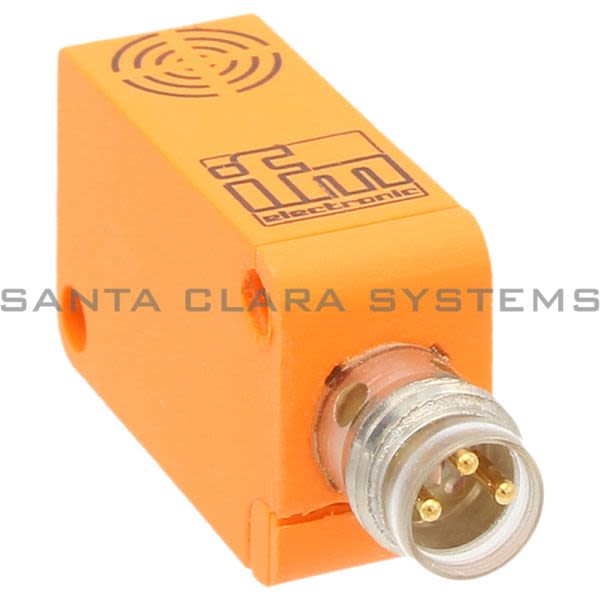

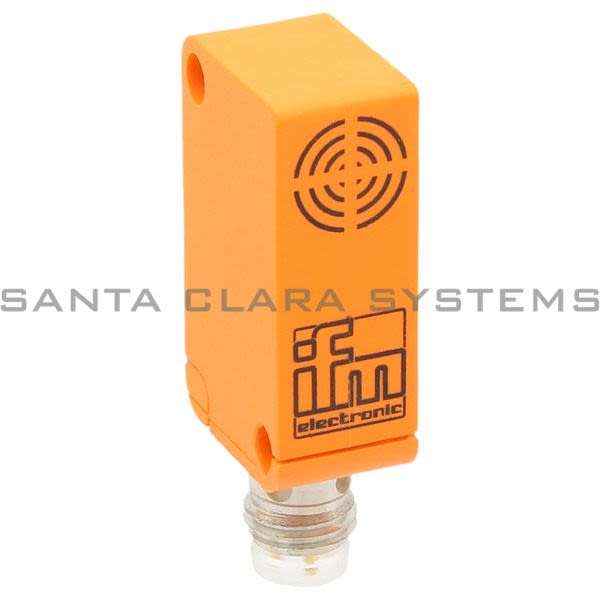

Efector - Inductive Sensor | IS-3002-BPKG/AS

Current response time:

14 Minutes 50 Seconds

Description: Inductive Sensor | IS-3002-BPKG/AS
Electrical Design: Pnp
Output Function: Normally Open
Mounting: Flush Mountable
Material: Pbt
Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
Current Consumption [Ma]: 15
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 200
Switching Frequency Dc [Hz]: 800
Short-Circuit Protection: Yes
Overload Protection: Yes
Sensing Range [Mm]: 2

Real Sensing Range Sr [Mm]: 2 10 %
Operating Distance [Mm]: 0...1.6
Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.4 / Aluminum: 0.3 / Copper: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -10...10
Ambient Temperature [C]: -25...80
Protection: Ip 65; (With Ifm Socket Duly Screwed On: Ip67)
Emc: En 60947-5-2 En 55011 Class B
Ul Approval: Ta -25...80 C Enclosure Type Type 1 Voltage Supply Class 2 File Number Ul E174191
Housing: Rectangular
Dimensions [Mm]: 28 X 10 X 16
Tightening Torque [Nm]: < 0.5; (With Washer)
Display: Switching Status 1 X Led, Yellow
Connection: Connector: 1 X M8
Alternate Manufacturer Name: IFM
