KI0042

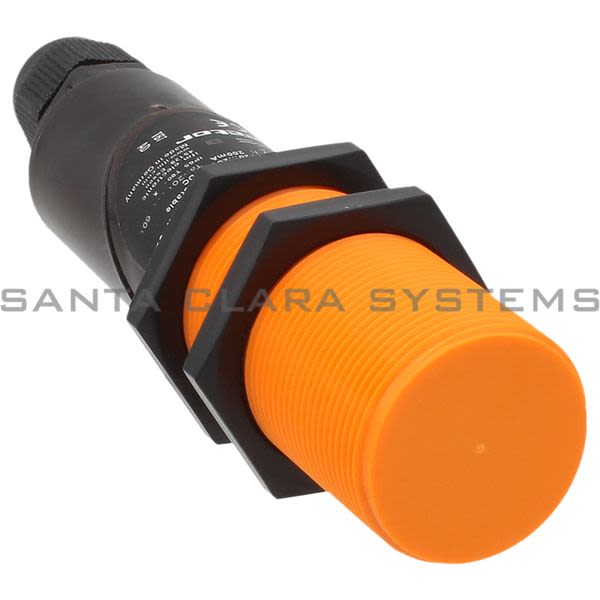

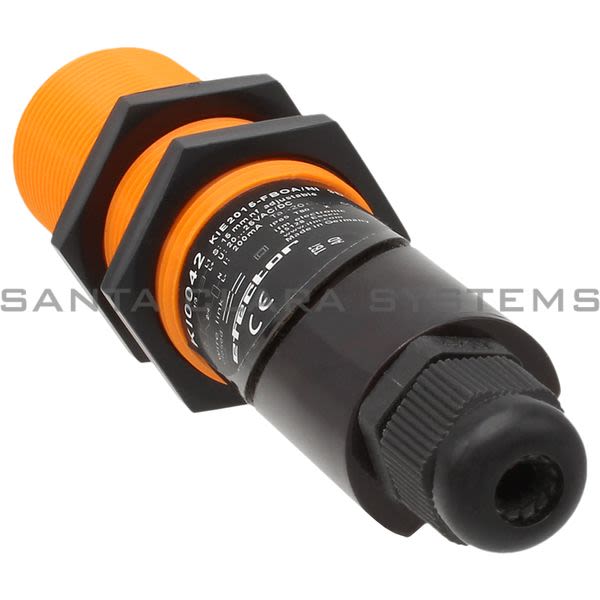

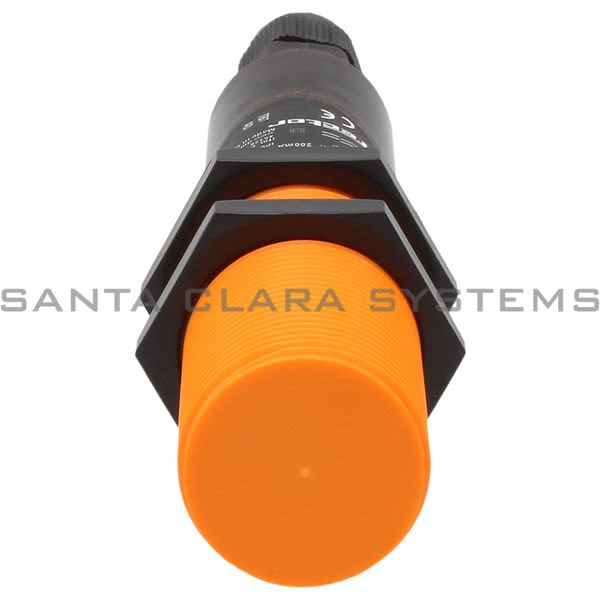

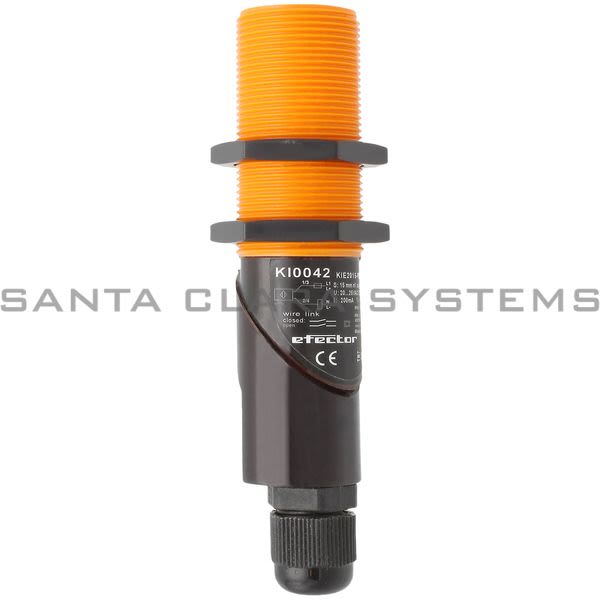

Efector - Photoelectric Sensor | KIE2015-FBOA/NI/3D

Current response time:

18 Minutes 2 Seconds

Description: Photoelectric Sensor | KIE2015-FBOA/NI/3D
Output Function: Normally Open / Closed; (Selectable)
Mounting: Non-Flush Mountable
Material: Pbt; Pa
Operating Voltage [V]: 20...250 Ac/Dc
Protection Class: Ii
Reverse Polarity Protection: No
Max. Voltage Drop Switching Output Dc [V]: 8
Max. Voltage Drop Switching Output Ac [V]: 10
Minimum Load Current [Ma]: 5
Max. Leakage Current [Ma]: 2.5 (250 V Ac) / 1.7 (110 V Ac) / 1.5 (24 V Dc)
Permanent Current Rating Of Switching Output Ac [Ma]: 130; (250 (...40 C) 250 (...50 C); When Used Outside The Hazardous Area: 200 (...70 C))
Permanent Current Rating Of Switching Output Dc [Ma]: 130; (250 (...40 C) 250 (...50 C); When Used Outside The Hazardous Area: 200 (...70 C))
Short-Time Current Rating Of Switching Output [Ma]: 1500; (20Ms / 0,5Hz)
Switching Frequency Ac [Hz]: 25
Switching Frequency Dc [Hz]: 50
Short-Circuit Proof: No
Overload Protection: No
Sensing Range [Mm]: 15
Sensing Range Adjustable: Yes

Factory Setting Sensing Range [Mm]: 15
Real Sensing Range Sr [Mm]: 15 10 %
Correction Factor: Glass: 0.4 / Water: 1 / Ceramics: 0.2 / Pvc: 0.2
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -15...15
Ambient Temperature [C]: -20...60
Protection: Ip 54; (When Used Outside The Hazardous Area: Ip 65)
Increased Immunity: Yes
Atex Marking: Ii 3D Ex Td A22 Ip54 T80C X
Emc: Iec 60947-5-2
Housing: Threaded Type
Dimensions [Mm]: M30 X 1.5 / L = 151
Thread Designation: M30 X 1.5
Tightening Torque For Cable Gland [Nm]: 2.7; (Maximum: 3,5)
Display: Switching Status 1 X Led, Yellow
Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting; Place The Fuse Outside The Hazardous Area.
Accessories (Supplied): Lock Nuts: 2 Screwdriver: 1
Connection: Terminals: ...2.5 Mm; Cable Sheath: 5.5...13 Mm; Cable Gland: M20 X 1.5
Alternate Manufacturer Name: IFM
