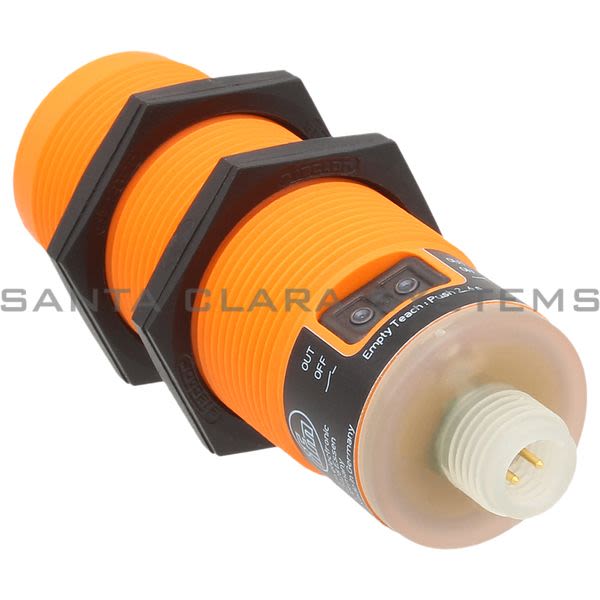

• Efector KI0054 Capacitive Sensor | KI-2200NFBOAP2T/LS100 Product Image

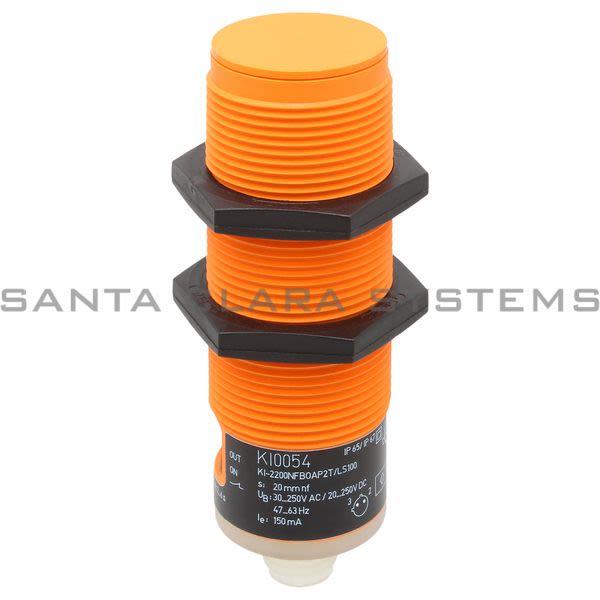

  • Efector KI0054 Capacitive Sensor | KI-2200NFBOAP2T/LS100 Product Image

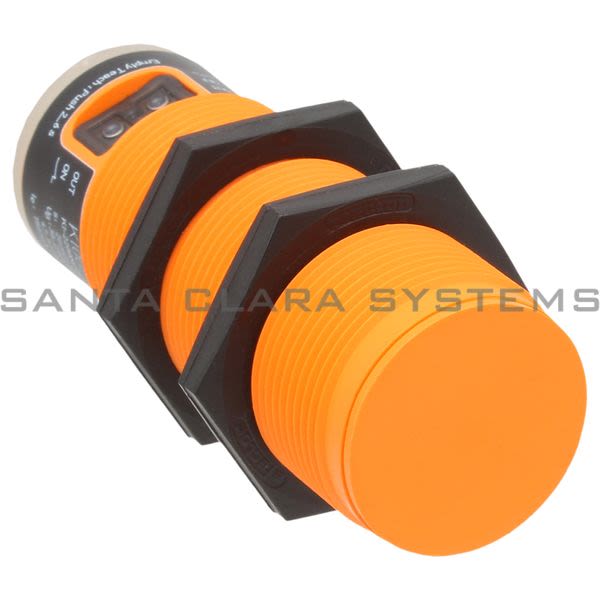

  • Efector KI0054 Capacitive Sensor | KI-2200NFBOAP2T/LS100 Product Image

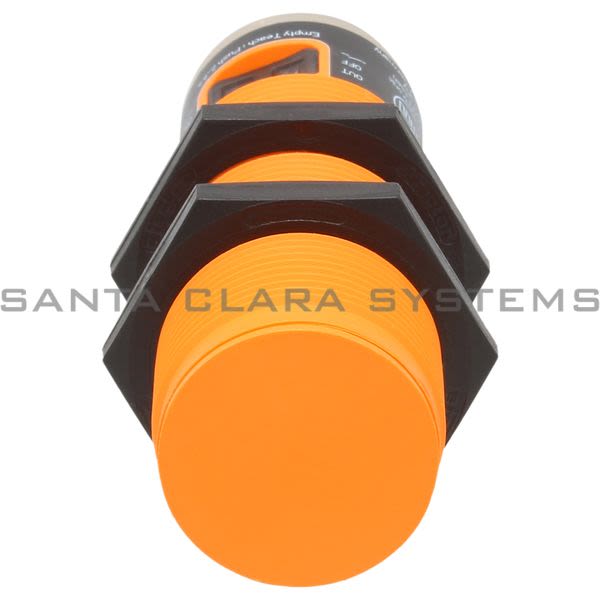

  • Efector KI0054 Capacitive Sensor | KI-2200NFBOAP2T/LS100 Product Image
  • Efector KI0054 Barcode

KI0054

Product Summary:

  • Output Function: Normally Open / Closed; (Selectable)
  • Mounting: Non-Flush Mountable
  • Material: Housing: Pbt; Plug: Pc; Pushbuttons: Tpe-U
  • Installation: Detection Through Non-Metallic Container Wall Or On Bypass Pipes
  • Media: Dry Bulk Material; Liquids
Get a Quote

Current response time:

12 Minutes 59 Seconds
  • Description: Capacitive Sensor | KI-2200NFBOAP2T/LS100
  • Output Function: Normally Open / Closed; (Selectable)
  • Mounting: Non-Flush Mountable
  • Material: Housing: Pbt; Plug: Pc; Pushbuttons: Tpe-U
  • Installation: Detection Through Non-Metallic Container Wall Or On Bypass Pipes
  • Media: Dry Bulk Material; Liquids
  • Frequency Ac [Hz]: 47...63
  • Operating Voltage [V]: 30...250 Ac / 20...250 Dc
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Max. Voltage Drop Switching Output Dc [V]: 8
  • Max. Voltage Drop Switching Output Ac [V]: 10
  • Max. Leakage Current [Ma]: 2.5 (250 V Ac) / 1.7 (110 V Ac) / 1.5 (24 V Dc)
  • Permanent Current Rating Of Switching Output Ac [Ma]: 100; (150 (...40 C))
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100; (150 (...40 C))
  • Short-Time Current Rating Of Switching Output [Ma]: 1000; (20 Ms / 0,5 Hz)
  • Switching Frequency Ac [Hz]: 10
  • Switching Frequency Dc [Hz]: 10
  • Short-Circuit Proof: No
  • Overload Protection: No
  • Sensing Range [Mm]: 5...40; (Programming Buttons)
  • Sensing Range Adjustable: Yes
  • Factory Setting Sensing Range [Mm]: 20
  • Real Sensing Range Sr [Mm]: 20 10 %
  • Correction Factor: Glass: 0.3 / Water: 1 / Ceramics: 0.2 / Pvc: 0.1
  • Hysteresis [% Of Sr]: 1...15
  • Switch-Point Drift [% Of Sr]: -20...20
  • Ambient Temperature [C]: -25...80
  • Protection: Ip 65; Ip 67
  • Emc: En 60947-5-2
  • Housing: Threaded Type
  • Dimensions [Mm]: M30 X 1.5 / L = 90
  • Thread Designation: M30 X 1.5
  • Display: Switching Status 1 X Led Ring, Yellow Translucent Connector Indicates Output Status
  • Teach Function: Yes
  • Electronic Lock: Yes
  • Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 2 A; Fast Acting
  • Accessories (Supplied): Lock Nuts: 2
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KI0054 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
