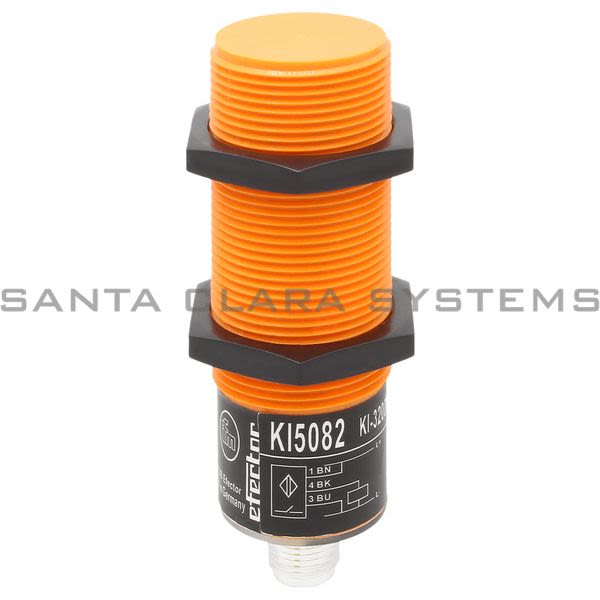

• Efector KI5082 Capacitive Sensor | KI-3200NFAKGP2T/US Product Image

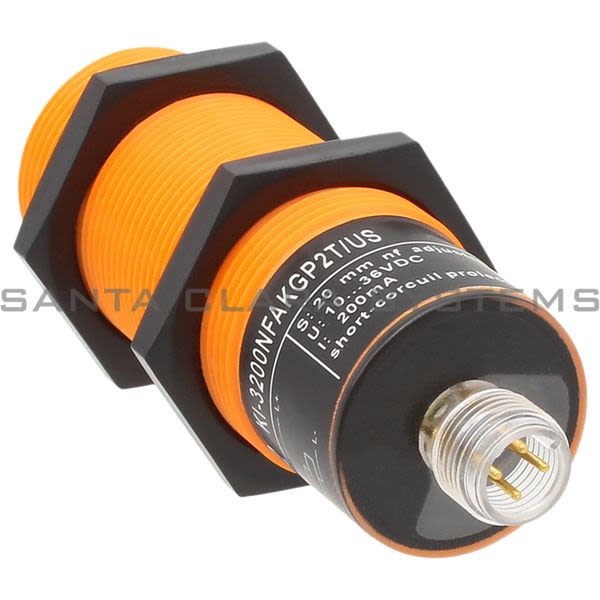

  • Efector KI5082 Capacitive Sensor | KI-3200NFAKGP2T/US Product Image
  • Efector KI5082 Capacitive Sensor | KI-3200NFAKGP2T/US Product Image
  • Efector KI5082 Capacitive Sensor | KI-3200NFAKGP2T/US Product Image
  • Efector KI5082 Barcode

KI5082

Product Summary:

  • Electrical Design: DC PNP/NPN
  • Output Function: Normally Open / Closed Programmable
  • MOUNTING: NON-FLUSH MOUNTABLE
  • MATERIAL: HOUSING: PBT; PLUG: PC; PUSHBUTTONS: TPE-U
  • Operating Voltage [V]: 10...36 DC
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Capacitive Sensor | KI-3200NFAKGP2T/US
  • Electrical Design: DC PNP/NPN
  • Output Function: Normally Open / Closed Programmable
  • MOUNTING: NON-FLUSH MOUNTABLE
  • MATERIAL: HOUSING: PBT; PLUG: PC; PUSHBUTTONS: TPE-U
  • Operating Voltage [V]: 10...36 DC
  • Sensing Range [mm]: 20
  • Ambient Temperature [C]: -25...80, temperature of the sensing face -25...110 C
  • Alternate Manufacturer Name: IFM
  • COMMUNICATION INTERFACE: IO-LINK
  • HOUSING: THREADED TYPE
  • DIMENSIONS [MM]: M30 X 1.5 / L = 90
  • CURRENT CONSUMPTION [MA]: < 20
  • PROTECTION CLASS: II
  • REVERSE POLARITY PROTECTION: YES
  • MAX. VOLTAGE DROP SWITCHING OUTPUT DC [V]: 2.5
  • PERMANENT CURRENT RATING OF SWITCHING OUTPUT DC [MA]: 200
  • SWITCHING FREQUENCY DC [HZ]: 10
  • SHORT-CIRCUIT PROOF: YES
  • OVERLOAD PROTECTION: YES
  • HYSTERESIS [% OF SR]: 1...15
  • SWITCH-POINT DRIFT [% OF SR]: -20...20
  • TRANSMISSION TYPE: COM1 (4,8 KBAUD)
  • IO-LINK REVISION: 1.1
  • SDCI STANDARD: IEC 61131-9 CDV
  • IO-LINK DEVICE ID: 388D / 000184H
  • PROFILES: SMART SENSOR
  • MIN. PROCESS CYCLE TIME [MS]: 101
  • PROTECTION: IP 65; IP 67
  • EMC: EN 61000-4-2 ESD 8 KV AD EN 61000-4-3 HF RADIATED 10 V/M EN 61000-4-4 BURST 2 KV EN 61000-4-6 HF CONDUCTED 3 V EN 55011 CLASS B
  • VIBRATION RESISTANCE: EN 60068-2-6 FC (10...55 HZ) / 1 MM AMPLITUDE, VIBRATION DURATION 5 MIN., 30 MIN. PER AXIS WITH RESONANCE OR 55 HZ
  • SHOCK RESISTANCE: EN 60068-2-27 EA 30 G / 6 SHOCKS / 11 MS HALF-SINE (X, Y, Z)
  • MTTF [YEARS]: 569
  • WEIGHT [G]: 88.2
  • THREAD DESIGNATION: M30 X 1.5
  • DISPLAY: SWITCHING STATUS 1 X LED, YELLOW
  • TEACH FUNCTION: YES
  • ELECTRONIC LOCK: YES
  • ACCESSORIES (SUPPLIED): LOCK NUTS: 2
  • PACK QUANTITY: 1 PCS.
  • CONNECTOR: 1 X M12
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KI5082 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
