KI5085

Efector - Capacitive Sensor | KIA3080BFPKG/2T/US

Current response time:

By 5AM PT on Friday

Emergency?

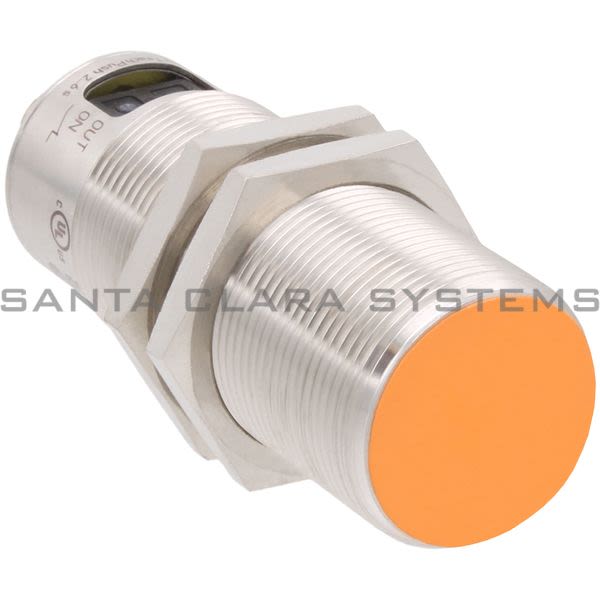

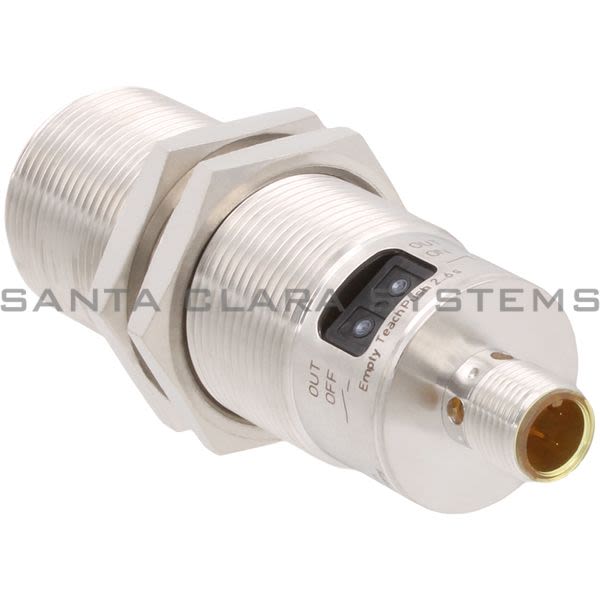

Description: Capacitive Sensor | KIA3080BFPKG/2T/US
Electrical Design: Pnp
Output Function: Normally Open / Closed; (Selectable)
Mounting: Flush Mountable
Material: Housing: Stainless Steel (1.4404 / 316L); Pushbuttons: Tpe-U; Cover: Pbt; Plug: Pei
Operating Voltage [V]: 10...30 Dc; (10...36 Dc (60 C))
Current Consumption [Ma]: < 18
Protection Class: Iii
Reverse Polarity Protection: Yes
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 100
Switching Frequency Dc [Hz]: 10
Short-Circuit Proof: Yes
Overload Protection: Yes
Sensing Range [Mm]: 8
Hysteresis [% Of Sr]: 1...15
Switch-Point Drift [% Of Sr]: -20...20
Communication Interface: Io-Link
Transmission Type: Com1 (4,8Kbaud)
Io-Link Revision: 1.1

Sdci Standard: Iec 61131-9 Cdv
Io-Link Device Id: 388D / 000184H
Profiles: Smart Sensor
Sio Mode: Yes
Min. Process Cycle Time [Ms]: 101
Ambient Temperature [C]: -25...80
Protection: Ip 65; Ip 67
Emc: En 61000-4-2 Esd 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 3 V En 55011 Class B
Vibration Resistance: En 60068-2-6 Fc (10...55 Hz) / 1 Mm Amplitude, Vibration Duration 5 Min., 30 Min. Per Axis With Resonance Or 55 Hz
Shock Resistance: En 60068-2-27 Ea 30 G 6 Shocks / 11 Ms Half-Sine (X, Y, Z)
Housing: Threaded Type
Dimensions [Mm]: M30 X 1.5 / L = 90
Thread Designation: M30 X 1.5
Display: Switching Status 1 X Led, Yellow
Teach Function: Yes
Electronic Lock: Yes
Accessories (Supplied): Lock Nuts: 2
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on KI5085 . Santa Clara Systems carries 2,216 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
