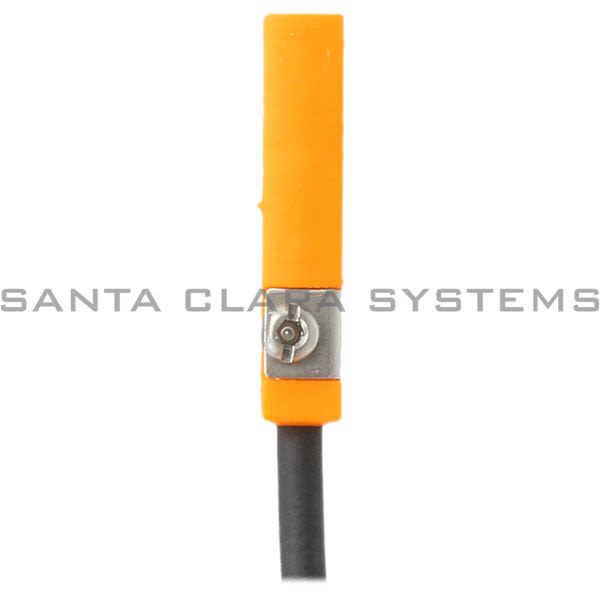

• Efector MK5138 Cylinder Sensor | MKT3020BBPKG/A/0.3M/ZH/AS Product Image

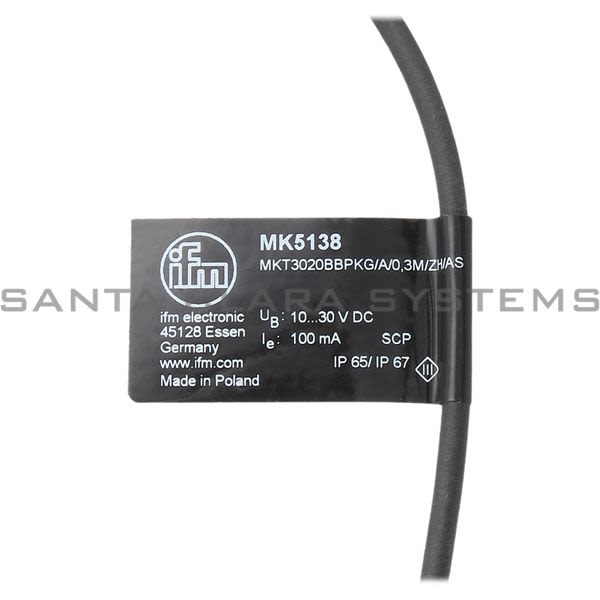

  • Efector MK5138 Cylinder Sensor | MKT3020BBPKG/A/0.3M/ZH/AS Product Image

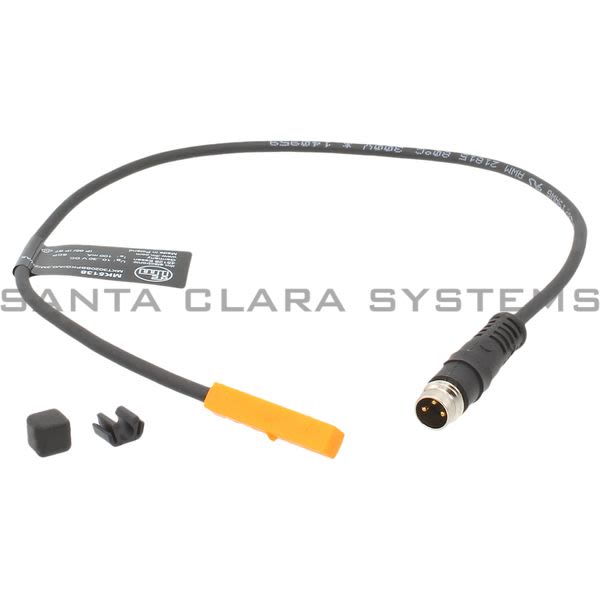

  • Efector MK5138 Cylinder Sensor | MKT3020BBPKG/A/0.3M/ZH/AS Product Image
  • Efector MK5138 Cylinder Sensor | MKT3020BBPKG/A/0.3M/ZH/AS Product Image
  • Efector MK5138 Barcode

MK5138

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Housing: Pa; Fastening Clamp: Stainless Steel
  • Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
Get a Quote

Current response time:

13 Minutes 59 Seconds
  • Description: Cylinder Sensor | MKT3020BBPKG/A/0.3M/ZH/AS
  • Electrical Design: Pnp
  • Output Function: Normally Open
  • Mounting: Flush Mountable
  • Material: Housing: Pa; Fastening Clamp: Stainless Steel
  • Operating Voltage [V]: 10...30 Dc; (Culus - Class 2 Source Required)
  • Current Consumption [Ma]: < 10
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Max. Power-On Delay Time [Ms]: 30
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 100
  • Switching Frequency Dc [Hz]: 6000
  • Short-Circuit Protection: Yes
  • Overload Protection: Yes
  • Magnetic Sensitivity [Mt]: 2
  • Travel Speed [M/S]: > 10
  • Hysteresis [Mm]: < 1
  • Repeatability [Mm]: < 0.2
  • Ambient Temperature [C]: -25...85
  • Protection: Ip 65; Ip 67
  • Emc: En 61000-4-2 Esd - Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 55011 Class B
  • Ul Approval: Ul Approval Number C003
  • Type Of Mounting: Fastening Clamp With Combined Slot / Hexagon Socket, Width Across Flats 1.5
  • Cylinder Type: T-Slot Cylinders
  • Dimensions [Mm]: 25 X 5 X 6.5
  • Display: Switching Status 1 X Led, Yellow
  • Accessories (Supplied): Rubber Memory Stop: 1 Cable Clip: 1

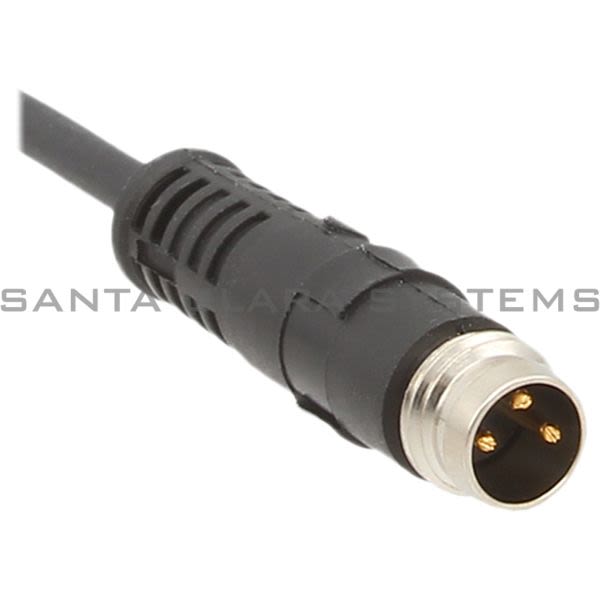

  • Connection: Connector: 1 X M8; Locking: Snap-Fit
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MK5138 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
