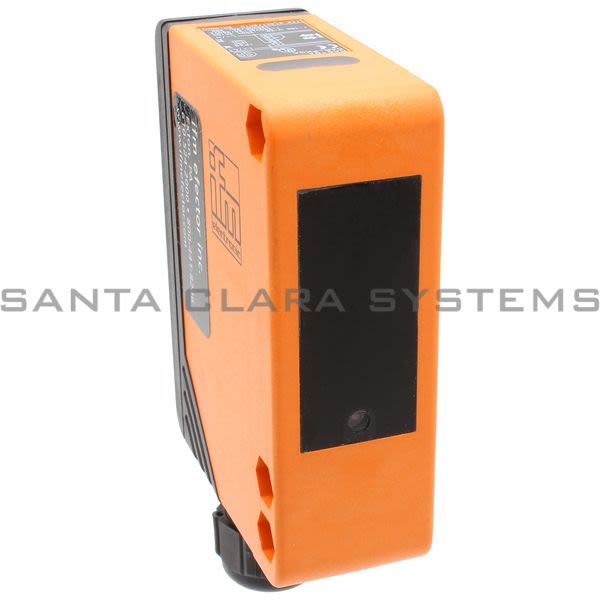

• Efector OA0104 Retro-reflective Sensor | OAR-FKOA Product Image

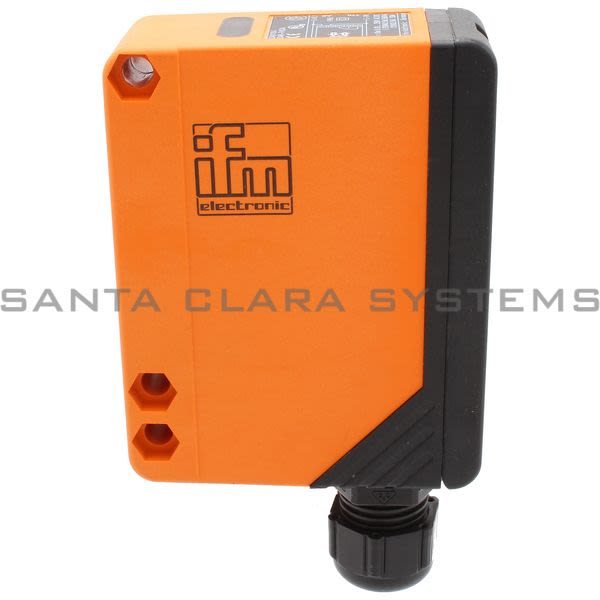

  • Efector OA0104 Retro-reflective Sensor | OAR-FKOA Product Image

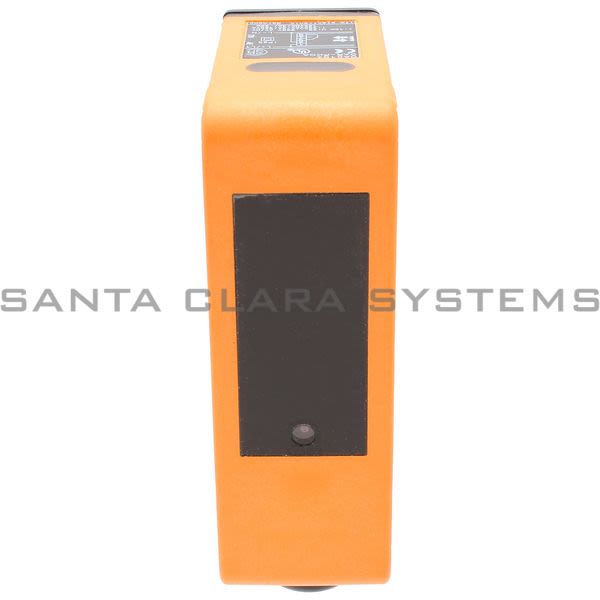

  • Efector OA0104 Retro-reflective Sensor | OAR-FKOA Product Image
  • Efector OA0104 Retro-reflective Sensor | OAR-FKOA Product Image

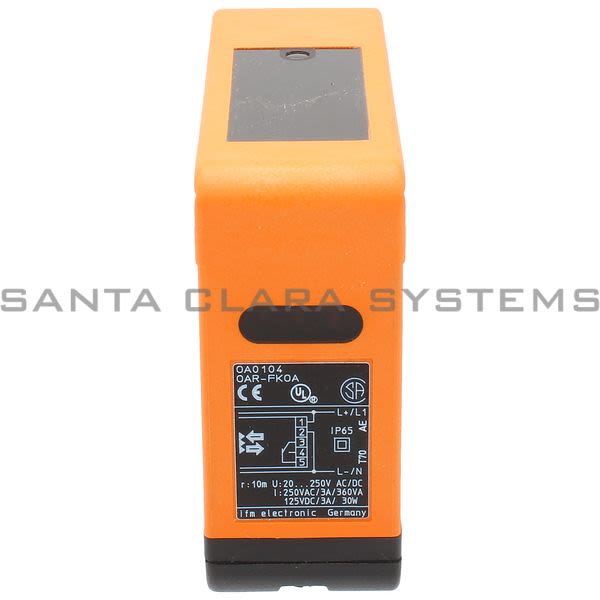

  • Efector OA0104 Retro-reflective Sensor | OAR-FKOA Product Image
  • Efector OA0104 Barcode

OA0104

Product Summary:

  • Electrical Design: AC/DC relay
  • Output Function: light-on / dark-on programmable
  • Material: PPO modified
  • Contact rating: 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
  • Operating Voltage [V]: 20...250 AC/DC (47...63 Hz AC)
Get a Quote

Current response time:

5 Minutes 35 Seconds
  • Description: Retro-reflective Sensor | OAR-FKOA
  • Electrical Design: AC/DC relay
  • Output Function: light-on / dark-on programmable
  • Material: PPO modified
  • Contact rating: 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
  • Operating Voltage [V]: 20...250 AC/DC (47...63 Hz AC)
  • Sensing Range [m]: 0.25...10 (Prismatic reflector 80 (E20005))
  • Ambient temperature [C]: -25...60
  • Alternate Manufacturer Name: IFM
  • Type of light: Infrared light
  • Housing: rectangular
  • Dimensions [mm]: 90 x 30 x 70
  • Function principle: Retro-reflective sensor
  • Frequency AC [Hz]: 47...63
  • Max. power consumption [VA]: 2
  • Protection class: II
  • Reverse polarity protection: no
  • Wave length [nm]: 880
  • Switching frequency AC [Hz]W: 10
  • Switching frequency DC [Hz]: 10
  • Short-circuit proof: no
  • Overload protection: no
  • Range referred to prismatic reflector [m]: 0.25...10; (Prismatic reflector 80 E20005)
  • Range adjustable: yes
  • Max. light spot diameter [mm]: 350
  • Light spot dimensions refer to: at maximum range
  • Protection: IP 65
  • EMC: EN 60947-5-2 EN 55011 class B
  • MTTF [years]: 288
  • Weight [g]: 299.5
  • Lens material: PMMA
  • Lens alignment: Side sensing
  • Display: Switching status 1 x LED, yellow Power 1 x LED, green Function 1 x LED, red
  • Required protection: miniature fuse to IEC60127-2 sheet 1; 5 A; fast acting

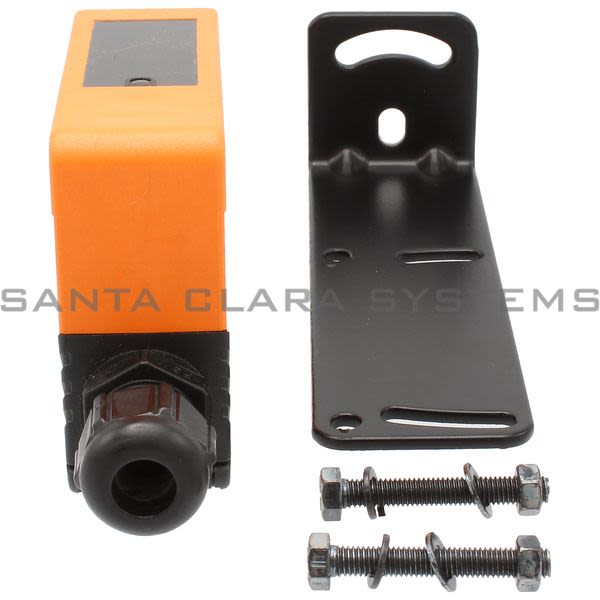

  • Accessories (supplied): Angle bracket: 1 x, E20514 screwdrivers
  • Remarks: Recommendation: check the unit for reliable function after a short circuit.
  • Pack quantity: 1 pcs.
  • Connection: terminals: ...1.5 mm; Cable sheath: 4.5...10 mm; Cable gland: M16 X 1.5
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OA0104 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • OAR-FKOA
