OA0106

Product Summary:

  • Electrical Design: Relay
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Ppo Modified
  • Contact Rating: 250 V Ac / 3 A / 360 Va, 125 V Dc / 3 A / 30 W
  • Function Principle: Retro-Reflective Sensor
Get a Quote

Current response time:

14 Minutes 53 Seconds
  • Description: Retro-reflective Sensor | OAP-FKOA
  • Electrical Design: Relay
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Ppo Modified
  • Contact Rating: 250 V Ac / 3 A / 360 Va, 125 V Dc / 3 A / 30 W
  • Function Principle: Retro-Reflective Sensor
  • Frequency Ac [Hz]: 47...63
  • Operating Voltage [V]: 20...250 Ac/Dc
  • Max. Power Consumption [Va]: 2
  • Protection Class: Ii
  • Reverse Polarity Protection: No
  • Type Of Light: Red Light
  • Wave Length [Nm]: 660
  • Switching Frequency Ac [Hz]: 10
  • Switching Frequency Dc [Hz]: 10
  • Short-Circuit Proof: No
  • Overload Protection: No
  • Range Referred To Prismatic Reflector [M]: 0.2...8; (Prismatic Reflector 80 E20005)
  • Range Adjustable: Yes
  • Max. Light Spot Diameter [Mm]: 420
  • Light Spot Dimensions Refer To: At Maximum Range
  • Polarization Filter Available: Yes
  • Ambient Temperature [C]: -25...60
  • Protection: Ip 65
  • Emc: En 60947-5-2 En 55011 Class B
  • Housing: Rectangular
  • Dimensions [Mm]: 90 X 30 X 70
  • Lens Material: Pmma
  • Lens Alignment: Side Sensing
  • Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green Function 1 X Led, Red
  • Required Protection: Miniature Fuse To Iec60127-2 Sheet 1; ? 5 A; Fast Acting

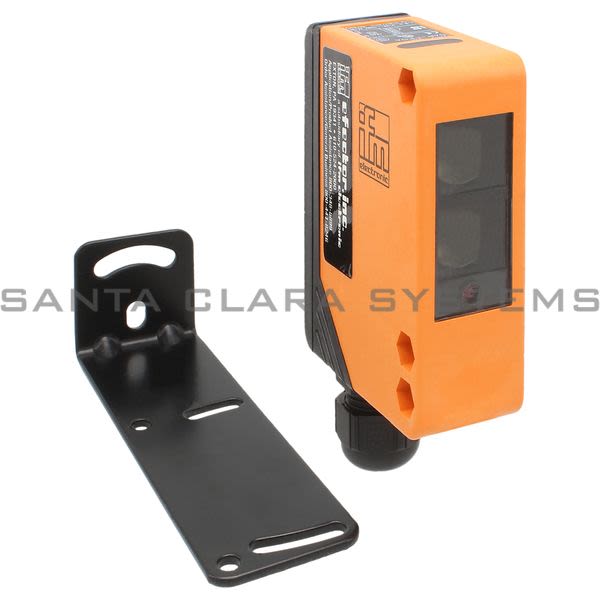

  • Accessories (Supplied): Angle Bracket: 1 X, E20514 Screwdrivers

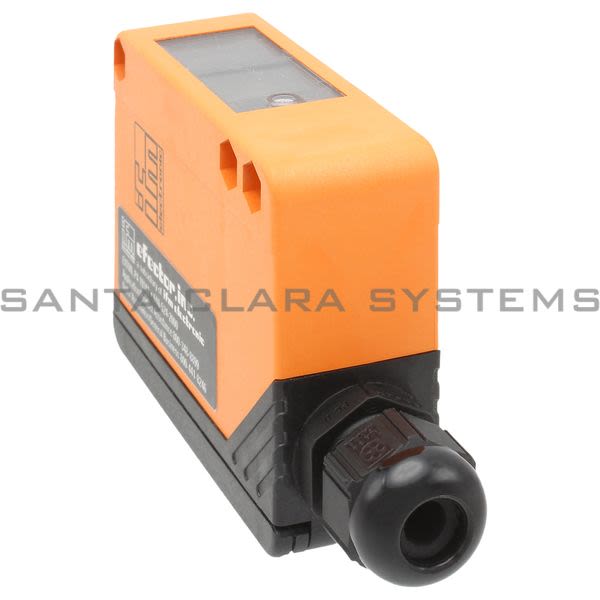

  • Connection: Terminals: ...1.5 Mm; Cable Sheath: 4.5...10 Mm; Cable Gland: M16 X 1.5
  • Alternate Manufacturer Name: IFM
