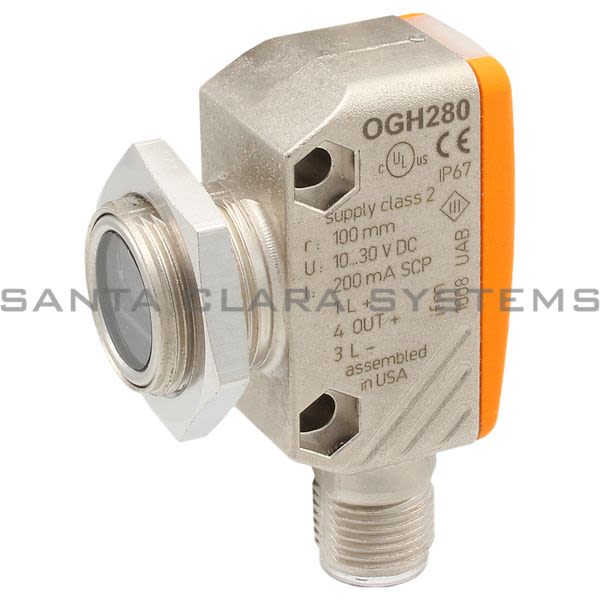

• Efector OGH280 Diffuse Sensor | OGH-HPKG/US/CUBE/100MM Product Image

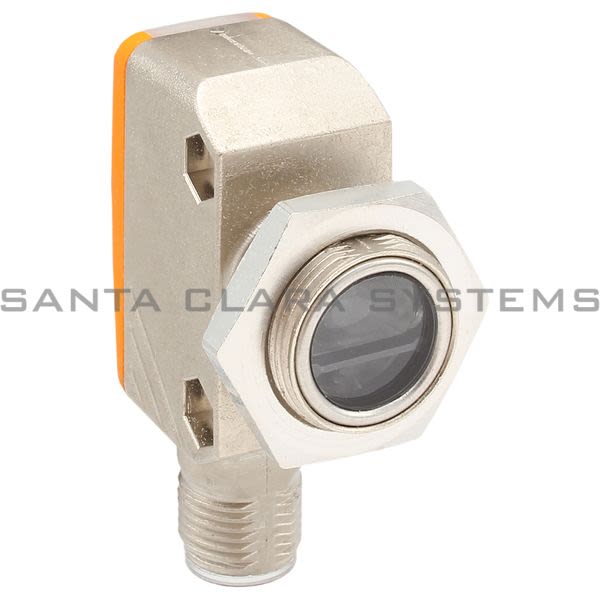

  • Efector OGH280 Diffuse Sensor | OGH-HPKG/US/CUBE/100MM Product Image

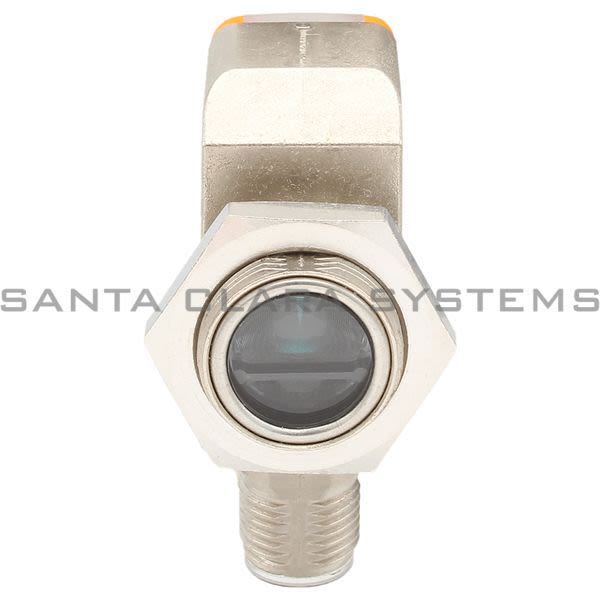

  • Efector OGH280 Diffuse Sensor | OGH-HPKG/US/CUBE/100MM Product Image

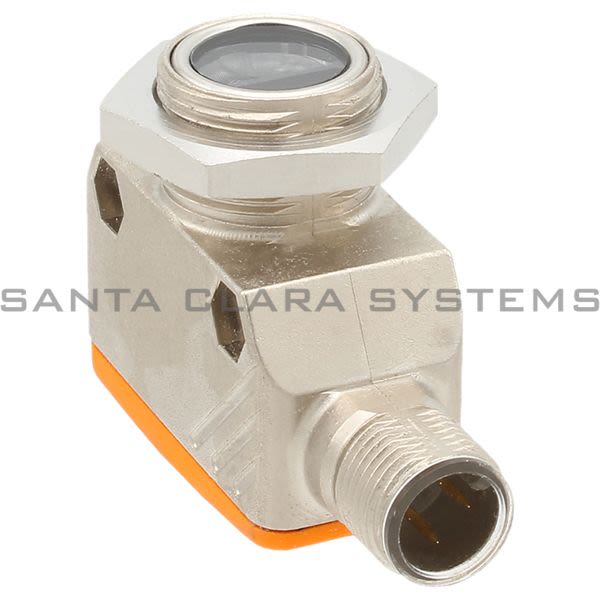

  • Efector OGH280 Diffuse Sensor | OGH-HPKG/US/CUBE/100MM Product Image
  • Efector OGH280 Barcode

OGH280

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: light-on mode
  • Operating Voltage [V]: 10...30 DC
  • Ambient temperature [C]: -25...60
  • Alternate Manufacturer Name: IFM
Get a Quote

Current response time:

15 Minutes 40 Seconds
  • Description: Diffuse Sensor | OGH-HPKG/US/CUBE/100MM
  • Electrical Design: DC PNP
  • Output Function: light-on mode
  • Operating Voltage [V]: 10...30 DC
  • Ambient temperature [C]: -25...60
  • Alternate Manufacturer Name: IFM
  • Function principle: Diffuse reflection sensor
  • Rated insulation voltage [V]: 32
  • Current consumption [mA]: 25
  • Protection class: III
  • Reverse polarity protection: yes
  • Max. power-on delay time [ms]: 300
  • Type of light: red light
  • Wave length [nm]: 645
  • Max. voltage drop switching output DC [V]: 2.5
  • Minimum load current [mA]: 5
  • Max. leakage current [mA]: 0.05
  • Permanent current rating of switching output DC [mA]: 200
  • Switching frequency DC [Hz]: 1000
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Range [mm]: < 100; (white paper 200 x 200 mm 90 % remission)
  • Range on white object (90 % remission) [mm]: < 100
  • Range on grey object (18 % remission) [mm]: < 100
  • Range on black object (6 % remission) [mm]: < 100
  • Range adjustable: no
  • Max. light spot diameter [mm]: 7
  • Light spot dimensions refer to: at maximum range
  • Background suppression available: yes
  • Communication interface: IO-Link
  • Transmission type: COM2 (38,4 kBaud)
  • IO-Link revision: 1.1
  • SDCI standard: IEC 61131-9
  • IO-Link device ID: 1131 d / 00 04 6B h
  • Profiles: Measuring Sensor, Identification and Diagnosis, Switching Signal Channel, Teach Channel
  • SIO mode: yes
  • Required master port class: A
  • Storage temperature [C]: -40...60
  • Protection: IP 67
  • Weight [g]: 69.1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OGH280 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
