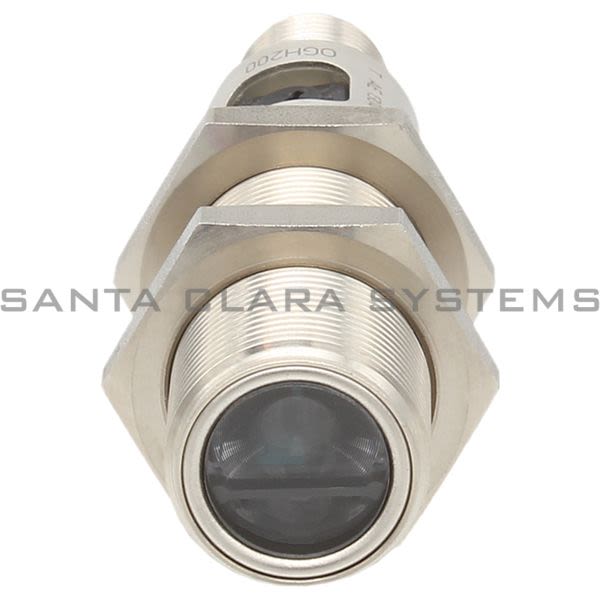

• Efector OGH200 Diffuse Sensor | OGH-HPKG/US100 Product Image

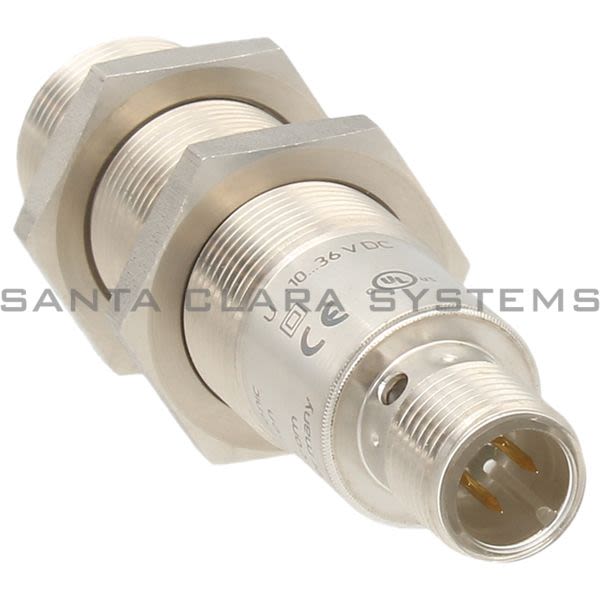

  • Efector OGH200 Diffuse Sensor | OGH-HPKG/US100 Product Image

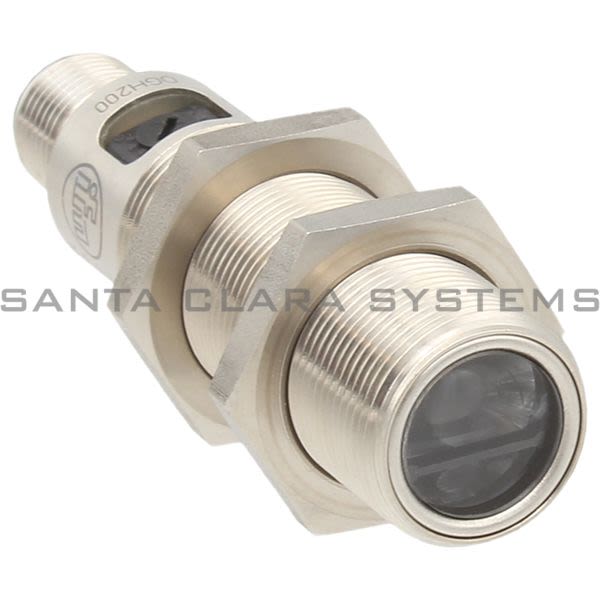

  • Efector OGH200 Diffuse Sensor | OGH-HPKG/US100 Product Image
  • Efector OGH200 Diffuse Sensor | OGH-HPKG/US100 Product Image
  • Efector OGH200 Barcode

OGH200

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Light-On Mode
  • Material: Housing: Stainless Steel; Operator Interface: Tpe
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...36 Dc
Let Us Find It

Current response time:

By 5AM PT on Tuesday
  • Description: Diffuse Sensor | OGH-HPKG/US100
  • Electrical Design: Pnp
  • Output Function: Light-On Mode
  • Material: Housing: Stainless Steel; Operator Interface: Tpe
  • Function Principle: Diffuse Reflection Sensor
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 25
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 624
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Range [Mm]: 15...250; (White Paper 200 X 200 Mm 90 % Remission)
  • Range On White Object (90 % Remission) [Mm]: 15...250
  • Range On Grey Object (18 % Remission) [Mm]: 15...230
  • Range On Black Object (6 % Remission) [Mm]: 15...160
  • Range Adjustable: Yes
  • Max. Light Spot Diameter [Mm]: 21
  • Light Spot Dimensions Refer To: At Maximum Range
  • Background Suppression Available: Yes
  • Ambient Temperature [C]: -25...60
  • Protection: Ip 65
  • Emc: En 60947-5-2
  • Housing: Threaded Type
  • Dimensions [Mm]: M18 X 1 / L = 72
  • Thread Designation: M18 X 1
  • Lens Material: Pmma
  • Display: Switching Status 1 X Led, Yellow
  • Operating Elements: Potentiometer
  • Accessories (Supplied): Lock Nuts: 2 X
  • Connection: Connector: 1 X M12
  • Background Suppression Chart: X: Distance Sensor/Object [Mm] Y: Min. Distance Object/Background [Mm] 1 = Object Black (6 % Remission) , Background (White 90 % Remission) 2 = Object Grey (18 % Remission) , Background (White 90 % Remission) 3 = Object White (90 % Remission) , Background (White 90 % Remission)
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OGH200 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • OGH-HPKG/US100
